THERMACUT EX-TRACK - Menu Features; System Main Menu

EX-TRACK
®
Operator Manual, Revision T-1 49
CNC System Technical Specification
Processor ARM processing chip
Display 7” Color LCD, 800 x 480 resolution
Input/output 13 - 16 photoelectric isolation input, 8-way photoelectric isolation
output, including four-way relay output
CNC Controlled Axes X, Y and Z (Vertical) with Height Controller
Top speed < 3000mm/min.
Pulse equivalent Flexible adjustment
Operating temperature 0 to +40ºC; storage temperature: -30 to +60º C
Storage space 4Gb super program storage capacity

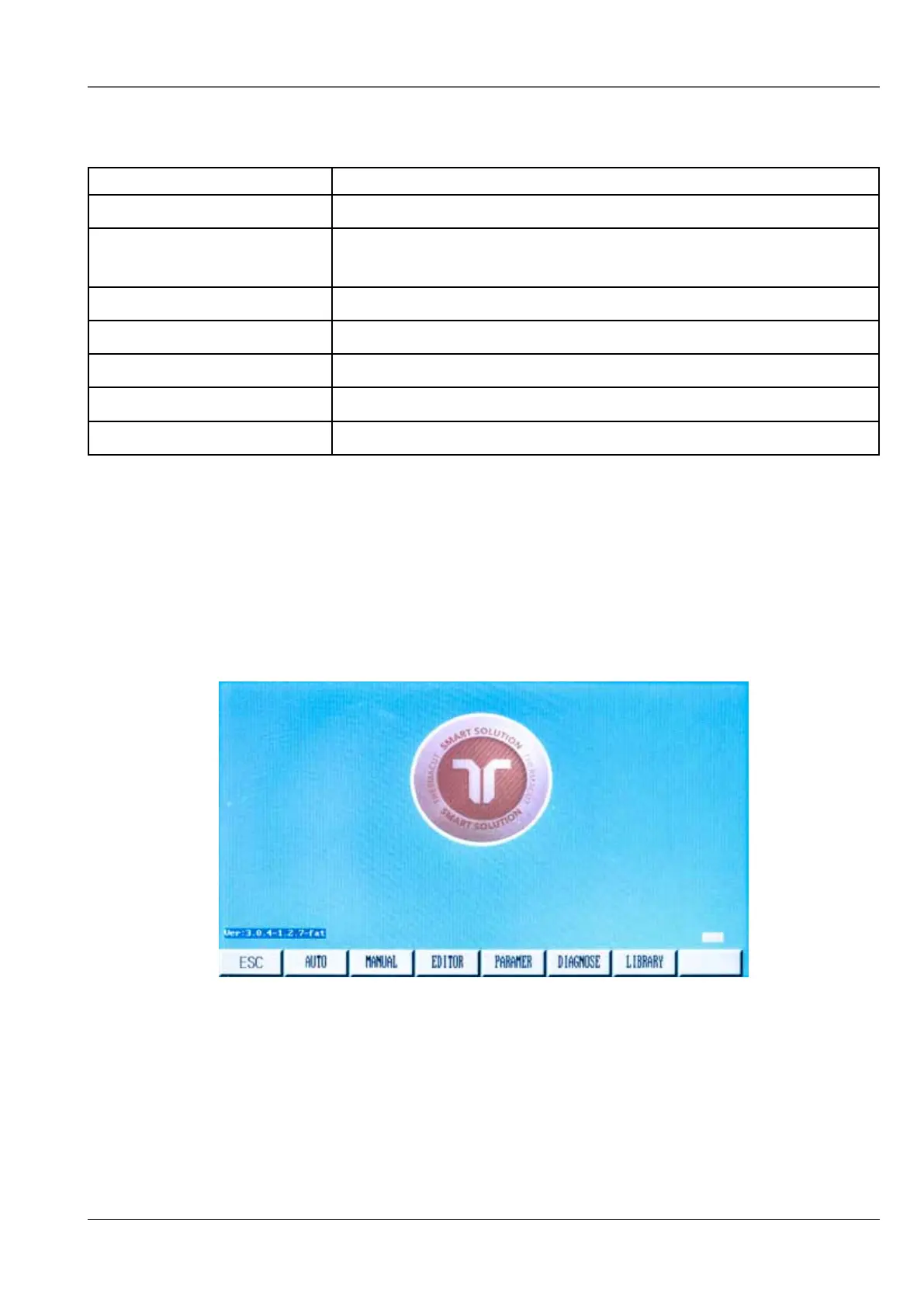

9.3. System main menu
9.3.1. Menu features
The Graphic User Interface utilizes F-Function Keys, displayed at the bottom of the screen. The
function keys [F1] to [F7] give the operator access to the system control functions. Press “ESC” to
return to previous menu level.
