Thermo NanoDrop One User Manual

1
About the NanoDrop One Spectrophotometer
Instrument Models and Features
2 NanoDrop One User Guide Thermo Scientific
Instrument Models and Features

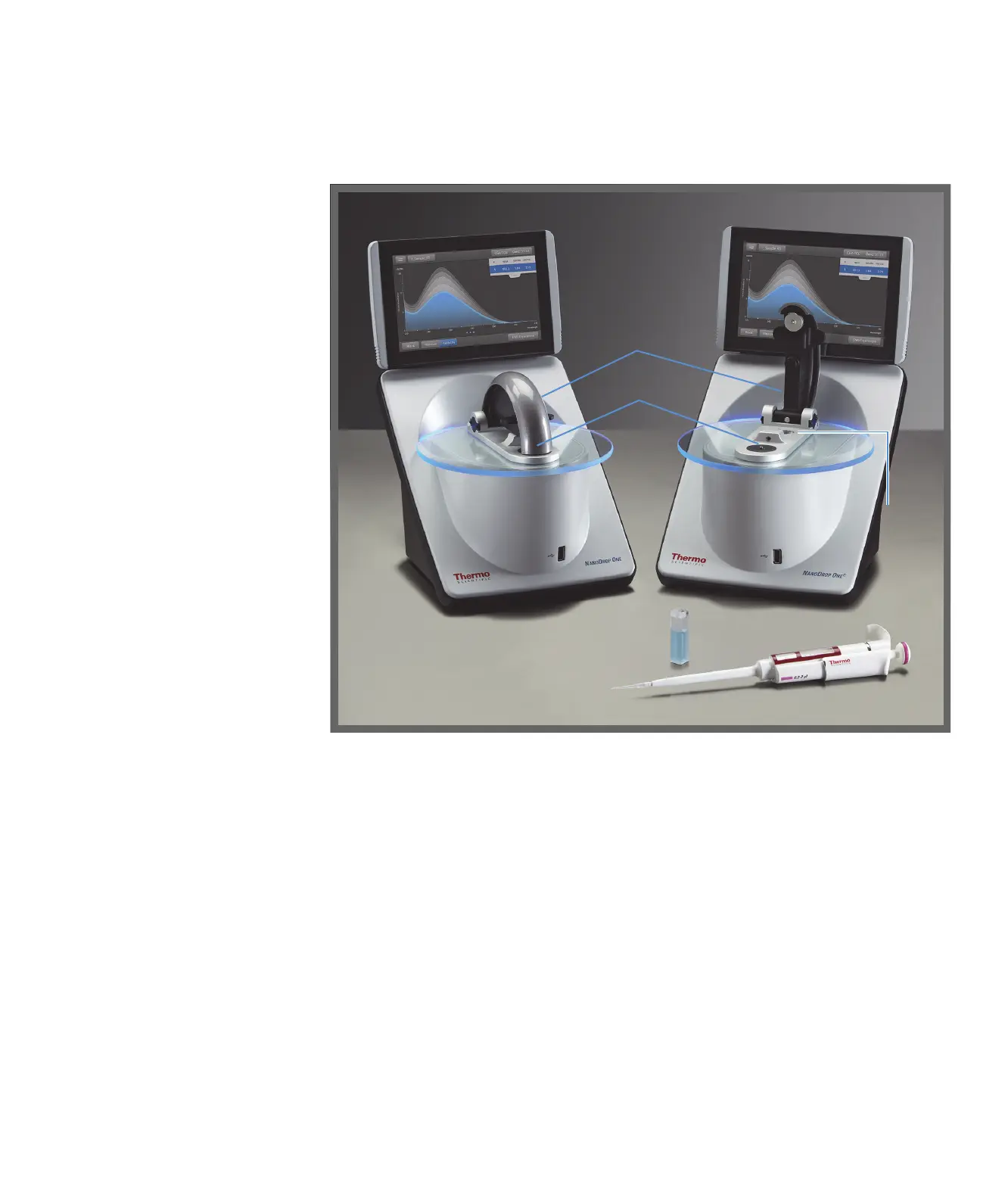

There are two models
available for the
NanoDrop One
spectrophotometer—the
NanoDrop One and the
NanoDrop One
C
. Both
models include the patented
micro-volume sample
retention system and general
features. The
NanoDrop One
C
model also
features a cuvette holder for
analyzing dilute samples using
standard UV-visible cuvettes.
Both instruments come with a
built-in, 7-inch Android
high-resolution touchscreen
preloaded with easy-to-use
instrument control software.
The NanoDrop One software
is loaded with features to
integrate with and simplify
your daily workflows.
1
Locate the instrument away from air vents and exhaust fans to minimize evaporation
NanoDrop One Spectrophotometer NanoDrop One
C
Spectrophotometer
Arm
Pedestal
Cuvette
holder

Thermo NanoDrop One Specifications

General

Wavelength Range	190-850 nm
Pathlength	1 mm and 0.2 mm (Auto-ranging)
Detection Limit	2 ng/µL (dsDNA)
Light Source	Xenon flash lamp
Maximum Concentration	15, 000 ng/µL (dsDNA)
Detector	2048-element linear silicon CCD array
Measurement Time	< 5 seconds
Weight	2.0 kg (4.4 lbs)
Nucleic Acid Quantitation	Yes
Protein Quantitation	Yes
Display	7-inch capacitive touch screen
Sample Volume	1-2 μL
Absorbance Precision	±0.002 A
Operating Voltage	100 to 240 V AC
Dimensions (W x D x H)	20 cm x 25 cm x 15 cm (8 in. x 10 in. x 6 in.)
Software	Thermo Scientific™ software
Connectivity	USB, Ethernet, Wi-Fi
Operating Temperature	15 - 35°C
Dimensions	20 cm x 25 cm x 15 cm (8 in. x 10 in. x 6 in.)
Absorbance Range	0 - 550 A (10 mm equivalent)
