Components (unpackaged)
Ensure that the installation site bench space can accommodate the dimensions and support the
weights of the components.
Component Height Length (depth) Width Weight
Instrument 50 cm (20 in.) 70 cm (27.5 in.) 80 cm (31.5 in.) 80 kg (176 lbs)
Computer 41.1 cm (16.2 in.) 43.8 cm (17.2 in.) 18.7 cm (7.4 in.) 14.3 kg (31.5 lbs)
Monitor (with stand) 38.1 cm (15.0 in.) 14.0 cm (5.5 in.) 37.5 cm (14.8 in.) 4.6 kg (10.2 lbs)
CAUTION! PHYSICAL INJURY HAZARD. Do not attempt to lift or move the instrument without
the assistance of others, the use of appropriate moving equipment, and proper lifting techniques.
Improper lifting can cause painful and permanent back injury. Depending on the weight, moving or
lifting an instrument may require two or more people.
Configured system dimensions and connections
A typical layout is shown in Figure 30 on page 68 and Figure 31 on page 69.
The components require a width of 1.8 m (6 ft).

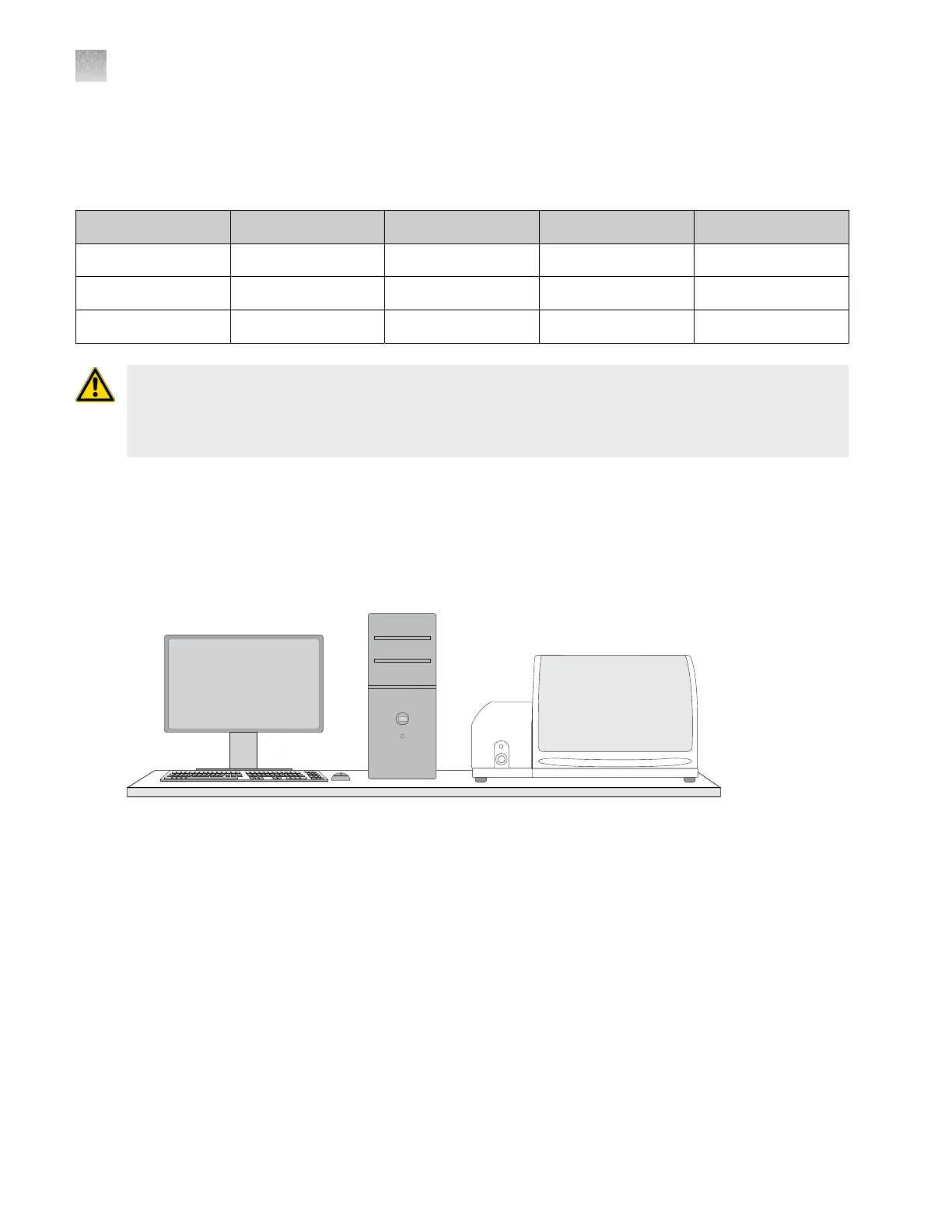

Figure 30 Typical layout of the QuantStudio
™
12K Flex OpenArray
™
AccuFill
™
System
The dimensions of the whole system are shown in Figure 31 on page 69. For the dimensions of each
component in the system, see “Components (unpackaged)” on page 68.
Appendix C Site requirements
Configured system dimensions and connections
C
68
QuantStudio
™
12K Flex OpenArray
™
AccuFill
™
System User Guide
