1-1
1 NOMENCLATURE AND FUNCTIONS
1 NOMENCLATURE AND FUNCTIONS

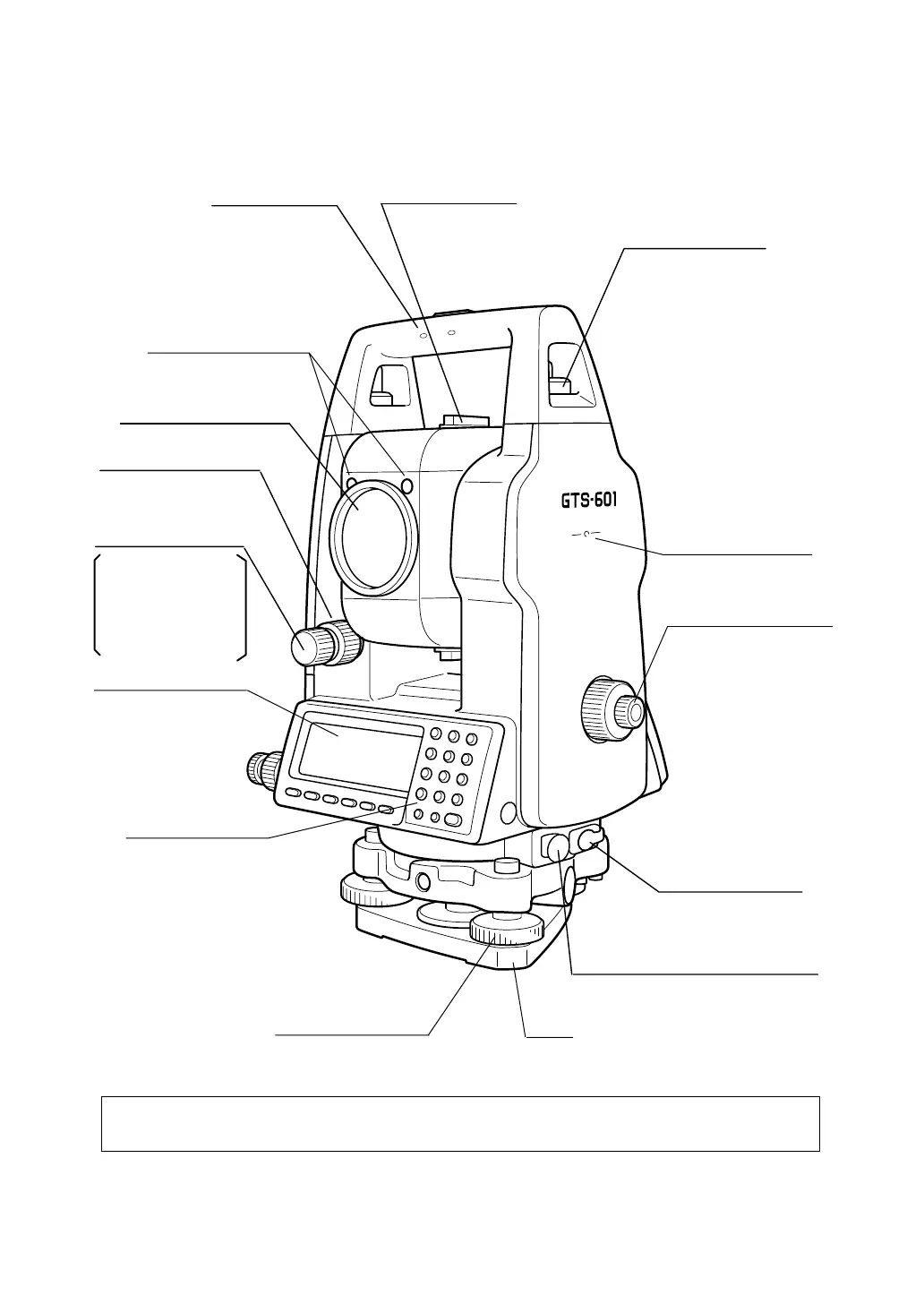

1.1 Nomenclature
Point guide
(Point guide type only)
Objective lens
Display window
Instrument
center mark
Optical plummet
telescope
Operation keys
Leveling screw
Base
Handle fixing screw
Sighting collimator
Carrying handle
Vertical motion clamp *1)
Vertical tangent screw *1)2)
GTS-601/601AF/
602/602AF:
2speed way
GTS-603/603AF/
605/605AF:
1speed way
Power supply
connector
(Serial signal connector RS-232C)
*1) The position of vertical motion clamp and tangent screw will differ depend on the markets.
*2) The speed of vertical tangent screw will differ depend on the markets.
Communication port
