3-12
3 STANDARD MEASUREMENT MODE
3.3.3 Execution of Coordinate Measuring
Measure the coordinates by entering the instrument height and prism height, coordinates of unknown
point will be measured directly.
● When setting coordinate values of occupied point, see Section 3.3.1“Setting Coordinate Values of
Occupied Point” .
● When setting the instrument height and prism height, see Section 3.3.2“Setting of the Instrument
Height / Prism Height” .

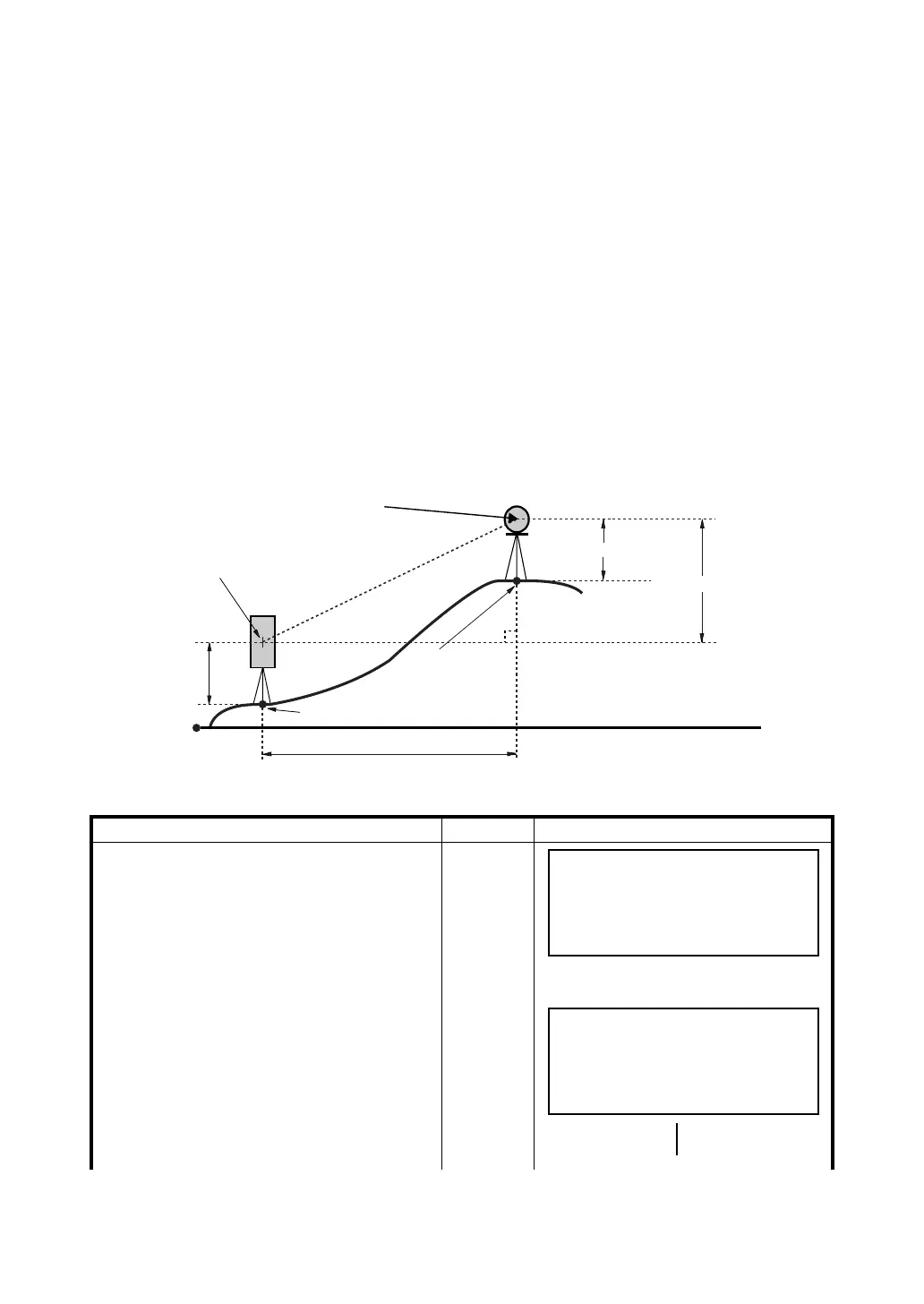

● The coordinates of the unknown point are calculated as shown below and displayed:
Coordinates of occupied point : (N
0
,E
0
,Z
0
)
Instrument height : Inst.h
Prism height : R.h
Vertical distance(Relative elevation) : z
Coordinates of the center of the prism,
originated from the center point of the instrument : (n,e,z)
Coordinates of unknown point : (N
1
,E
1
,Z
1
)
N
1
=N
0
+n
E
1
=E
0
+e
Z
1
=Z
0
+Inst.h+z - P.h
Confirm the angle measurement mode.
Operating procedure Operation Display
1 Set coordinates values of occupied point
and instrument/prism height. *1)
2 Set the direction angle of known point A. *2)
Set
direction
angle
3 Collimate target B.
Collimate
4 Press [F3](NEZ) key.*3)
Measuring starts.
[F3]

VD
R.h
Inst.HT
HD
SD

z
Origin (o, o, o)
Occupied point (No, Eo, Zo)
Center point of the instrument
(No, Eo, Zo+Inst.h)
Coordinates of the center of the prism, originated from the center point of the instrument (n,e,z)
Unknown point
(N
1, E1, Z1)
V : 90°10'20"
HR: 120°30'40"
SD HD NEZ 0SET HOLD P1
↓
N : <
E : PSM 0.0
Z : PPM 0.0
(m) *F.R
MEAS MODE VH SD HD P1 ↓
