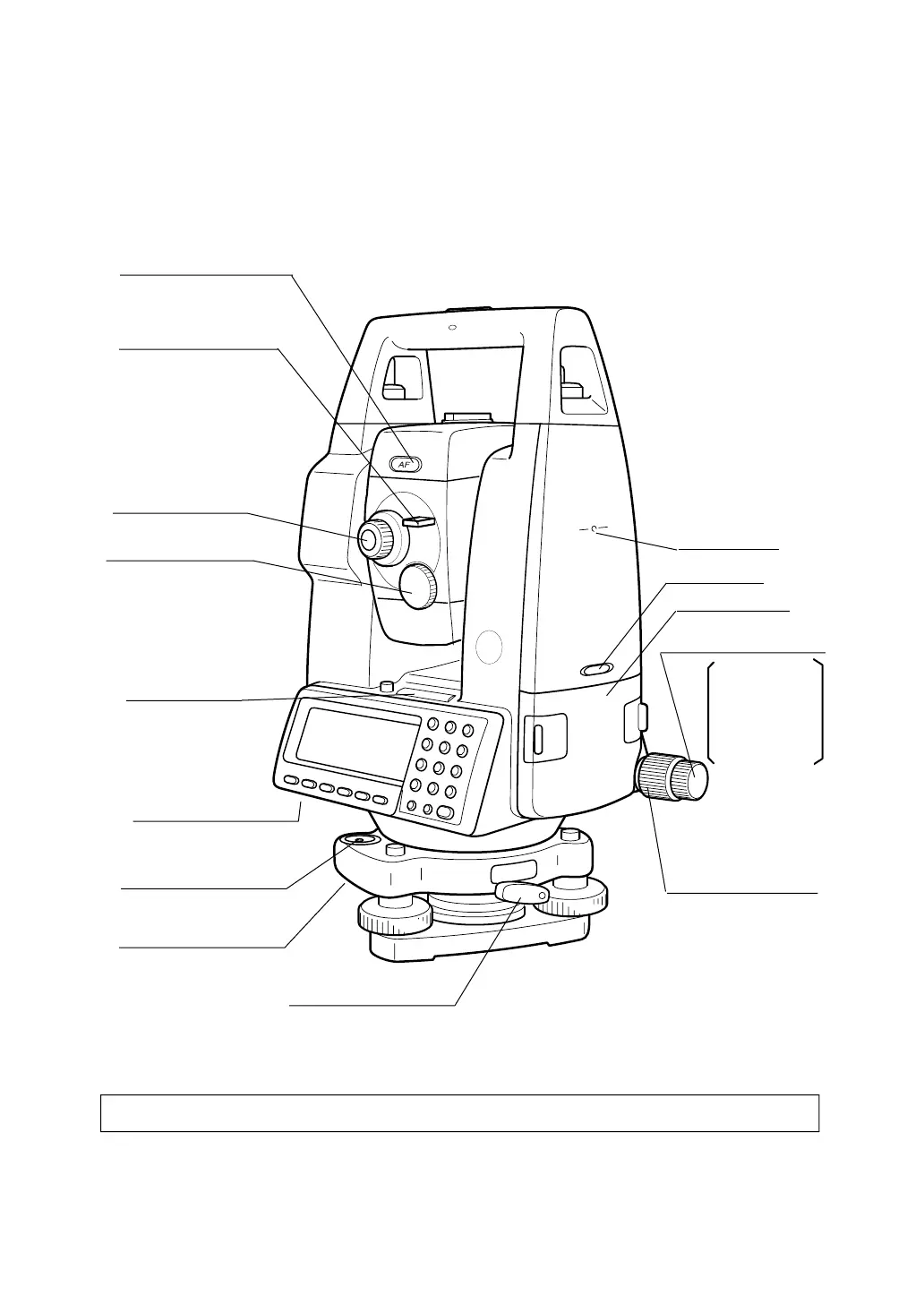

1 NOMENCLATURE AND FUNCTIONS
Automatic focusing key
Telescope grip
Telescope eyepiece
Plate level
GTS-601AF/602AF/603AF/605AF
Manual focusing knob
Circular level
Adjusting screw
for circular level
Tr ibrach fixing lever
Horizontal
motion clamp
Instrument
center mark
Battery BT-50Q
Power switch
Horizontal
tangent screw *1)
GTS-601AF/
602AF:
2speed way
GTS-603AF/
605AF:
1speed way
*1) The speed of horizontal tangent screw will differ depend on the markets.
Printer port
(Centronics connector)
