The System Five has three components: Control Box, Laser
Receiver, and a TM-1 Electric Mast.
Control Box
The Control Box (Figure 1-2) is the operator’s interface to
System Five™. After receiving signals from the sensors (Laser
Receiver and/or Slope Sensor), the Control Box determines if
grade or slope corrections are necessary. If a change in grade or
slope is required, the Control Box sends a signal to the valve
controlling the scraper to raise or lower it, thus maintaining
correct grade.

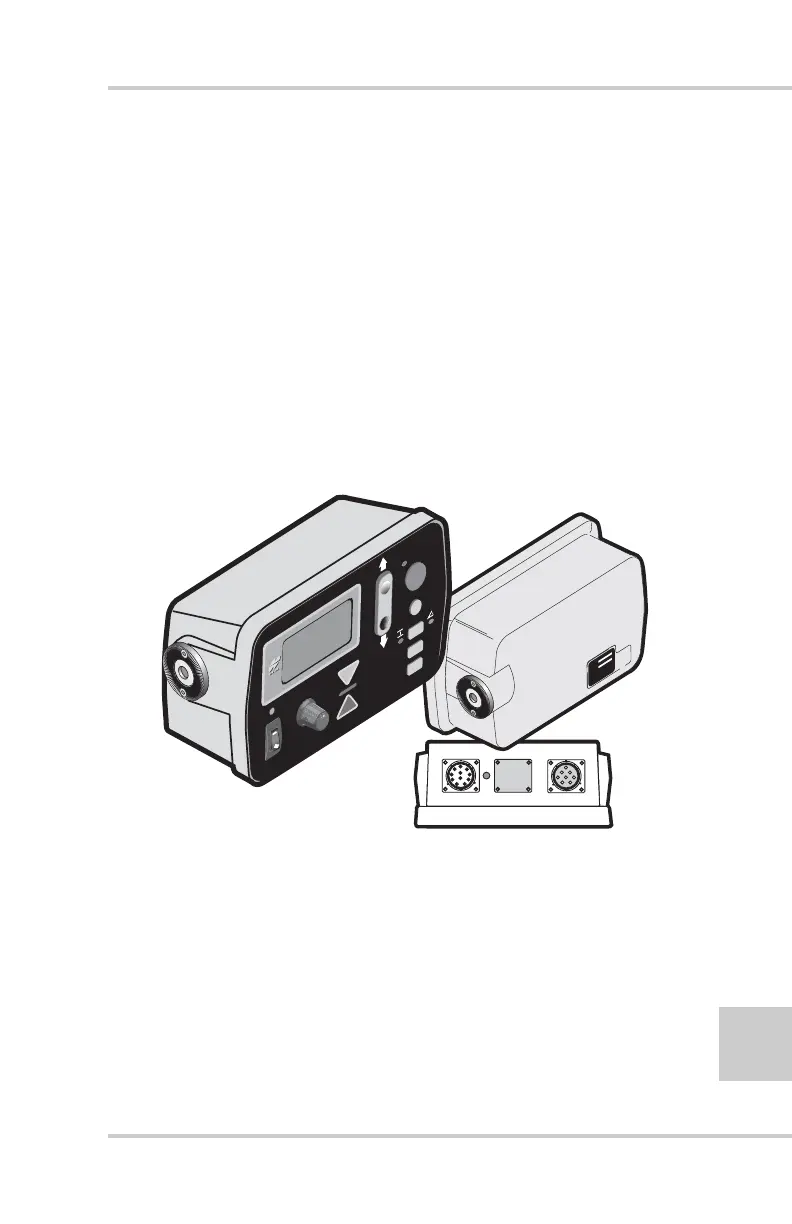

Figure 1-2. Control Box
The Control Box connects to the TM-1 Mast, hydraulic valves, and
scraper through electrical cables.
