Performance Menu
P/N 7010-0369 www.topconpositioning.com
2-19
Gain (Elevation)
This setting determines the speed at which the System Five™
allows the scraper to adjust to a change in grade. The gain can
be adjusted from a setting of 1 to 100. For faster hydraulic
response, increase the gain value. For slower hydraulic
response, decrease the gain. The objective is to set the gain so
the scraper reacts to the change in grade quickly, but without
“overshooting” the new elevation.
1. Rotate the Grade Adjustment Knob to access the Gain
Menu for elevation.
2. Press the Auto button to select the Gain (Elevation) (gAn)
menu (Figure 2-19).

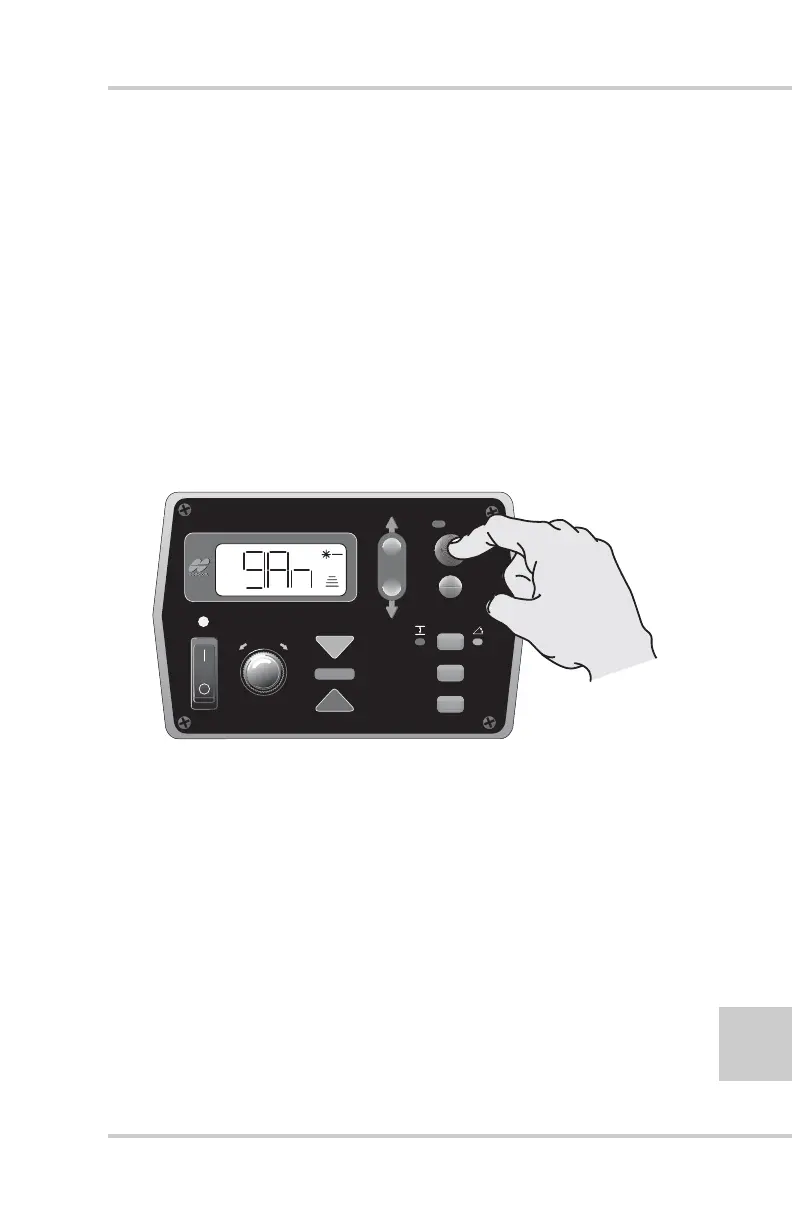

Figure 2-19. Selecting Gain (Elevation) Menu
FiveSystem
AUTO
SURVEY
SET
(MENU)
