Topcon MACHINE CONTROL AG System Five - Calculating the Average Fall

Perimeter Survey
P/N 7010-0369 www.topconpositioning.com
4-7
6. Press and hold the ELEV/AVG button for three seconds to
clear the average.
7. Repeat steps three through five for sides B, C, D (Figure 4-6).

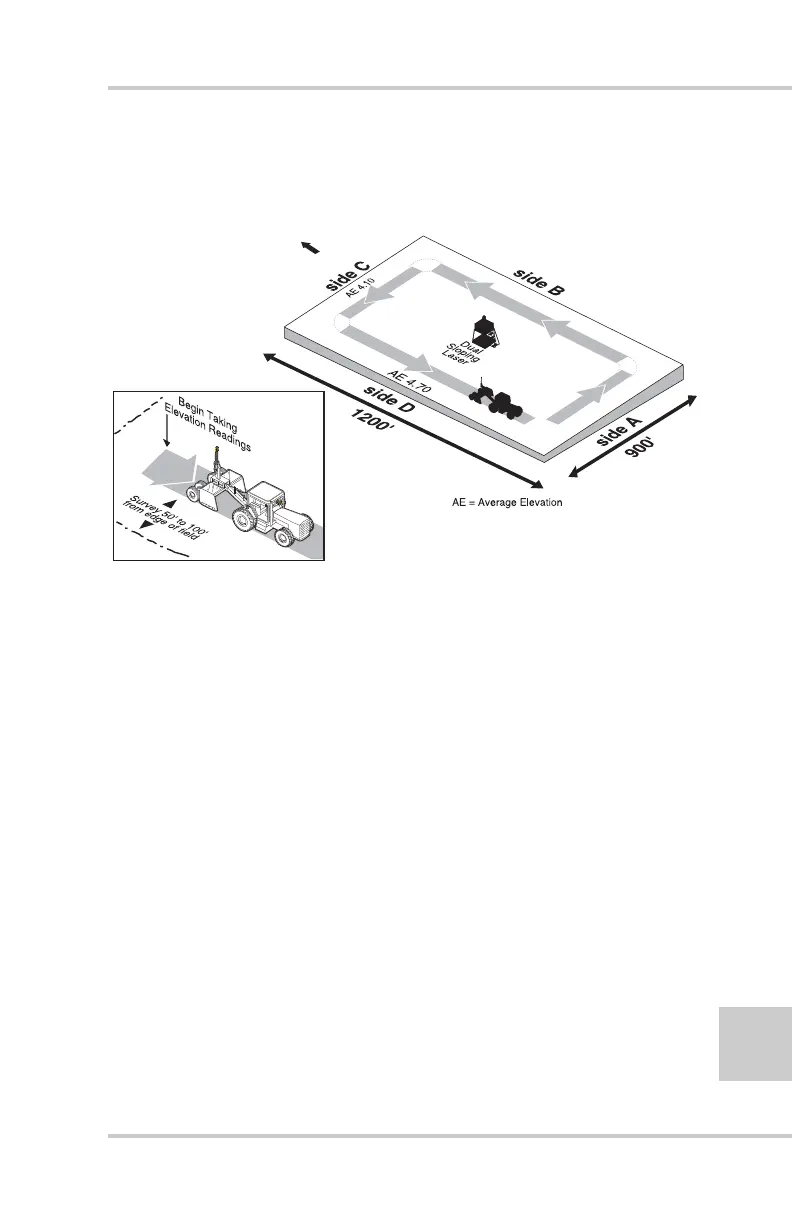

Figure 4-6. Perimeter Survey
Calculating the Average Fall
Calculate the Average Fall (AF) in both the North/South
direction (sides A and C) and in the East/West direction (sides
D and B).
Use this equation: , where AE is
average elevation and AF is average fall.
Using the example numbers from Figure 4-6, the equations
look like this:
for the North/South average fall
for the West/East average fall
M
AN
UA
L
AUT
O
S
y
s
t
em
F
iv
e
N
AE 5.15
AE 5.00
LeAEarg SmallAE– AF=
5.00 4.10– 0.90=
5.15 4.70– 0.45=
