Large Project Laser Transmitter
Placement
On larger projects, place the laser in the center of the project to
maximize the area you can grade, and minimize the distance
from the laser (Figure 3-2). The working distance from your
laser will indicate the type of project (large or small).

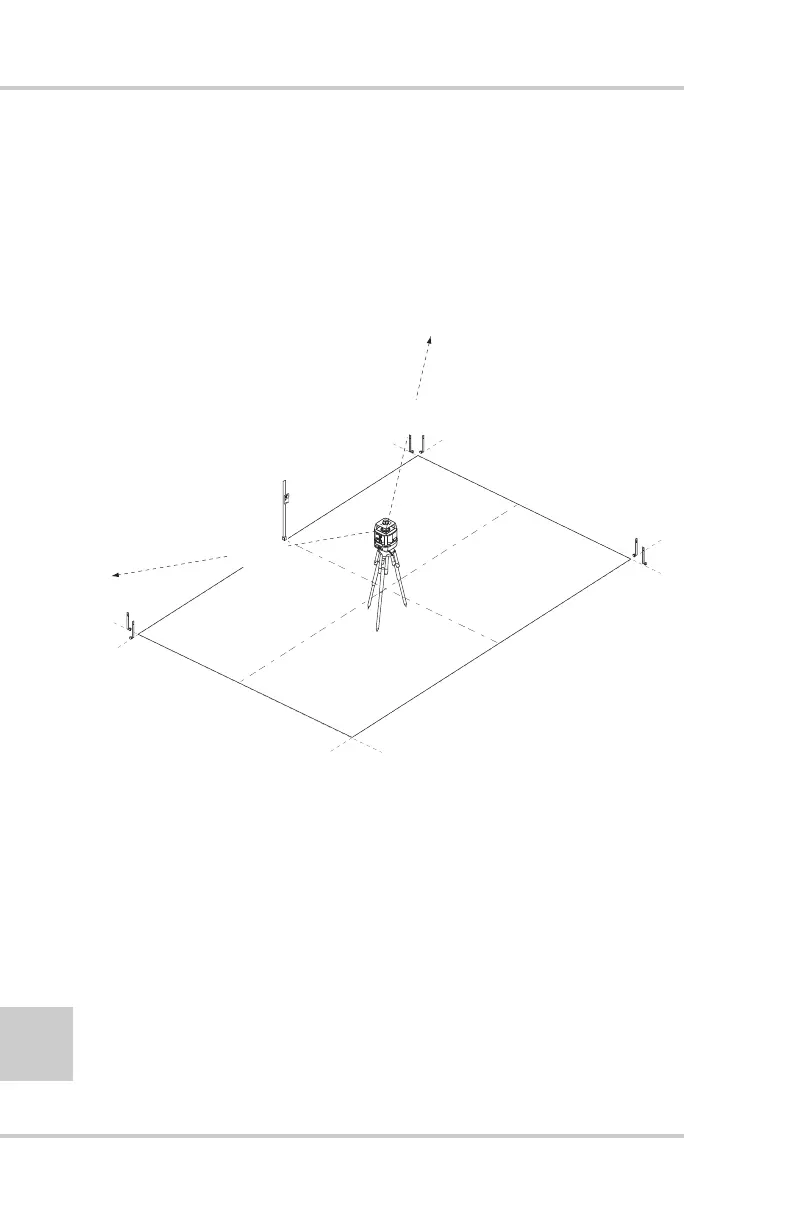

Figure 3-2. Laser Transmitter Placement – Larger Project
You may need to grade one section of the project, then move
the laser to finish other sections.
1000'
1000'
