Topcon MACHINE CONTROL AG System Five - Control Box

Control Box Usage
Topcon AG System Five Operator’s Manual
2-2
Control Box
The front of the Control Box is made up of buttons, LEDs, an LCD
screen, switches, and a knob (Figure 2-1).

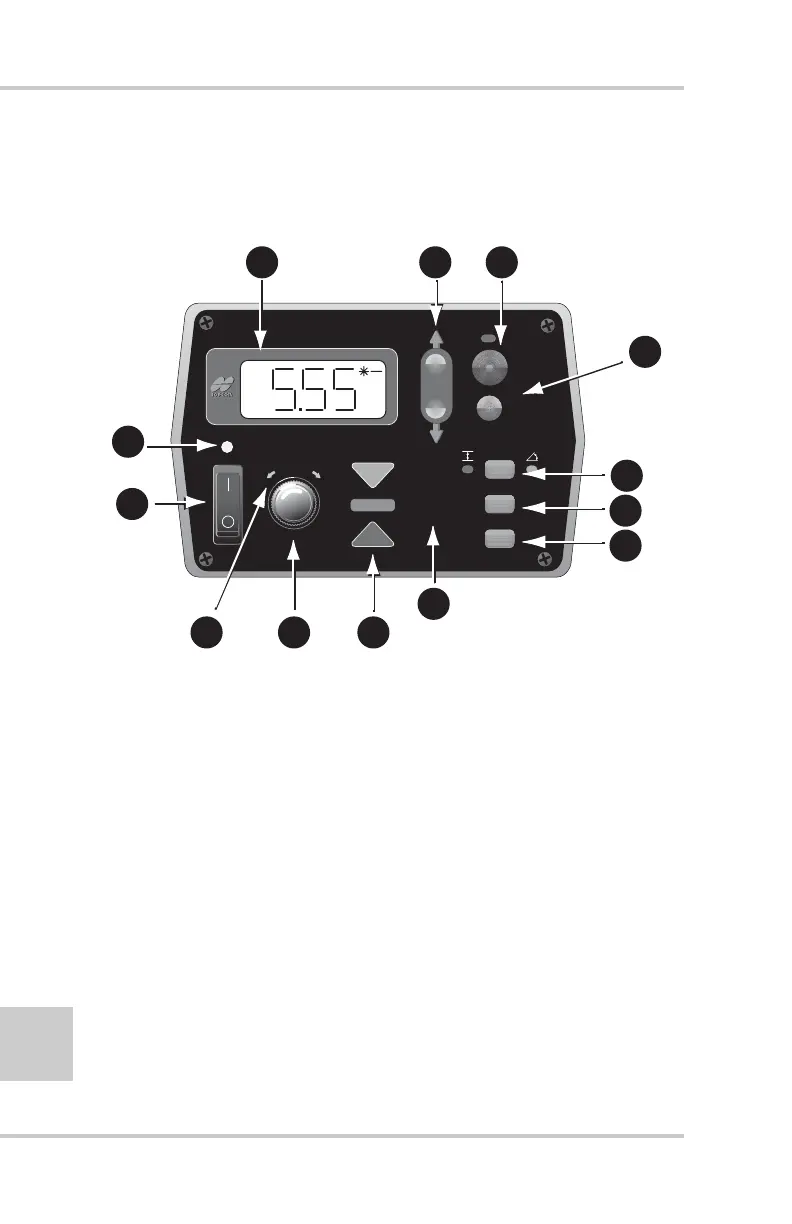

Figure 2-1. Control Box
1. LCD display
2. Light sensor for grade
adjustment arrows
3. Power switch
4. Grade adjustment direction
arrows
5. Grade adjustment knob
6. Grade adjustment LEDs
7. Function indicator LEDs
8. Set (Menu) button
9. Elevation offset and Elev/
Avg button
10. Slope/Elevation button
11. Survey/Search button
12. Auto/Manual button
13. Jog button
FiveSystem
AUTO
SURVEY
SET
(MENU)
1
2
3
13 12
1
1
9
5 6
8
4
10
SUR
CON
ELEV
AVG
7
