Press the Auto button to continuously record elevation
readings once per second. A beep sounds each time the
control box takes a reading.
• Press the Auto button again to pause readings.
• Press the Auto button a third time to restart readings.
Average Elevation
The System Five Control Box can automatically display the
average elevation as the survey progresses. While
surveying, simply press the ELEV/AVG button to switch
between current and average elevations.
Making Selections in the Performance
Menu
When using the Performance Menu, use the Auto/Manual
button to select settings and functions for the System Five
Control Box. See “Performance Menu” on page 2-15 for
information on the different menus available.
Jog Button
The jog button (Figure 2-14) activates the hydraulic valve to raise
or lower the implement.

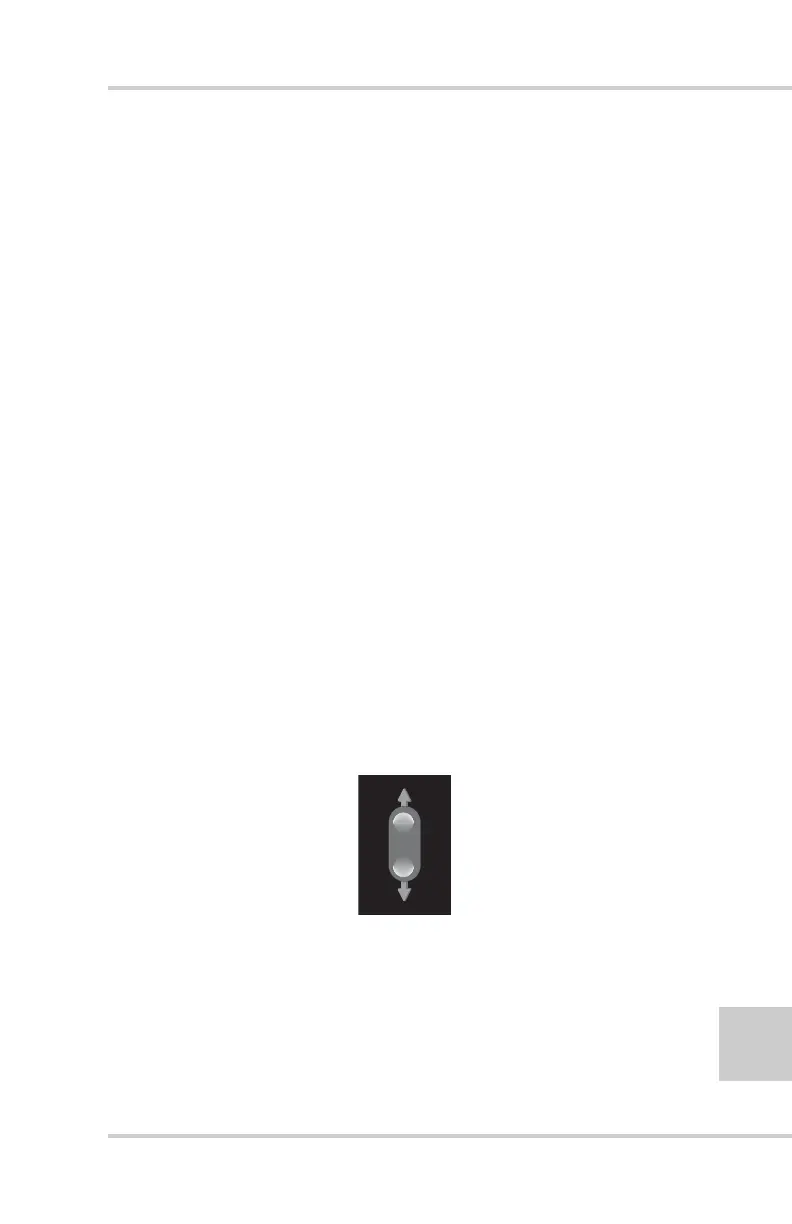

Figure 2-14. Jog Button
See “Timed Outputs” on page 2-36 for setting timed ouputs.
