3. Turn the Grade Adjustment Knob to select the desired
value (Figure 2-28).

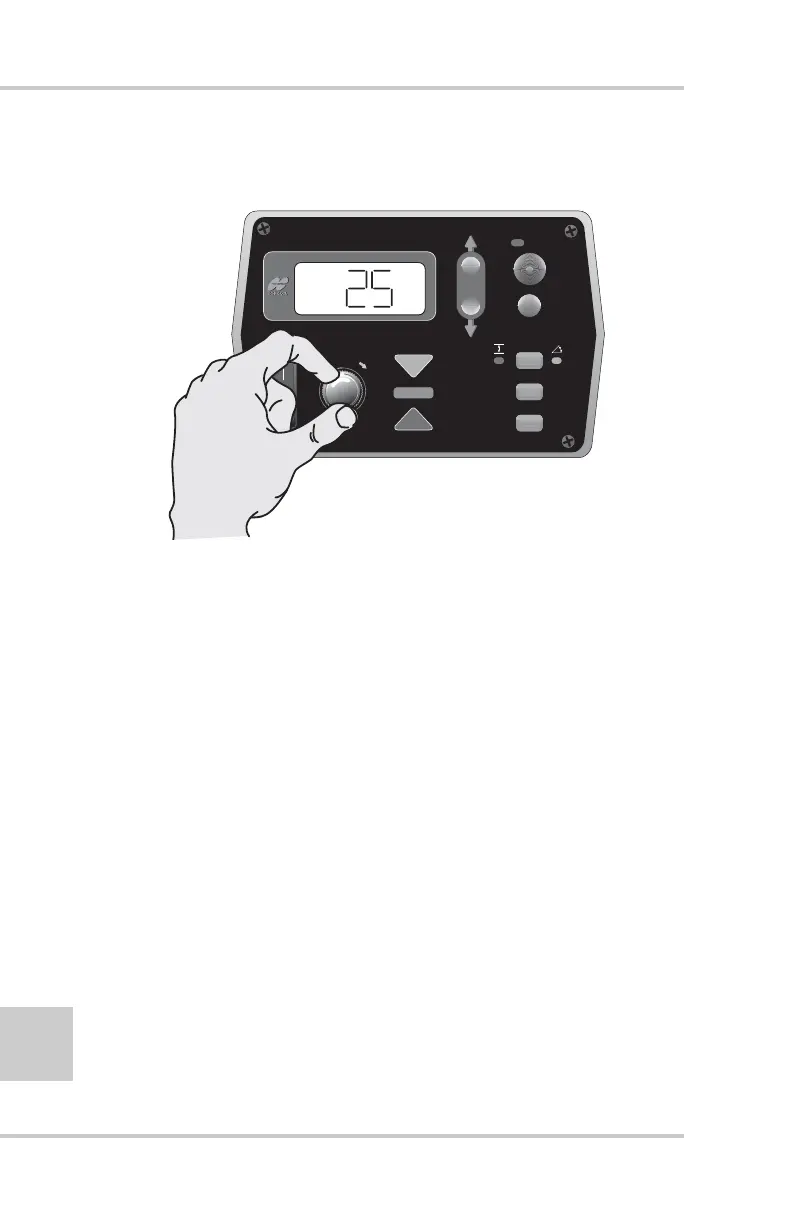

Figure 2-28. Selecting Averaging Menu Option
4. Press the Auto button to store the value and return to the
Performance Menu.
5. Rotate the Grade Adjustment Knob to access anther item
on the Performance Menu. Or, press the Set/Menu button
to exit.
Elevation Deadband
Deadband is the area of the working window that is displayed
as on-grade. While the elevation reference is within the
deadband, the machines’s valves remain idle (closed). The
wider the deadband (on-grade area), the more an elevation
reference can move up or down without initiating a correction.
1. Rotate the Grade Adjustment Knob to access the
elevation Deadband Menu.
