Topcon MACHINE CONTROL AG System Five - Elevation Offsets (Setpoints)

Control Box Usage
Topcon AG System Five Operator’s Manual
2-34
4. Press the Auto button to return to the Performance Menu.
5. Rotate the Grade Adjustment Knob to access another
item on the Performance Menu. Or, press the Set/Menu
button to exit.
Elevation Offsets (Setpoints)
The Offset feature allows the operator to select the number of
active elevation offsets or setpoints.
1. Rotate the Grade Adjustment Knob to access the
Elevation Offsets (Setpoints) Menu.
2. Press the Auto button to select the Offsets (SPt) menu
(Figure 2-38).

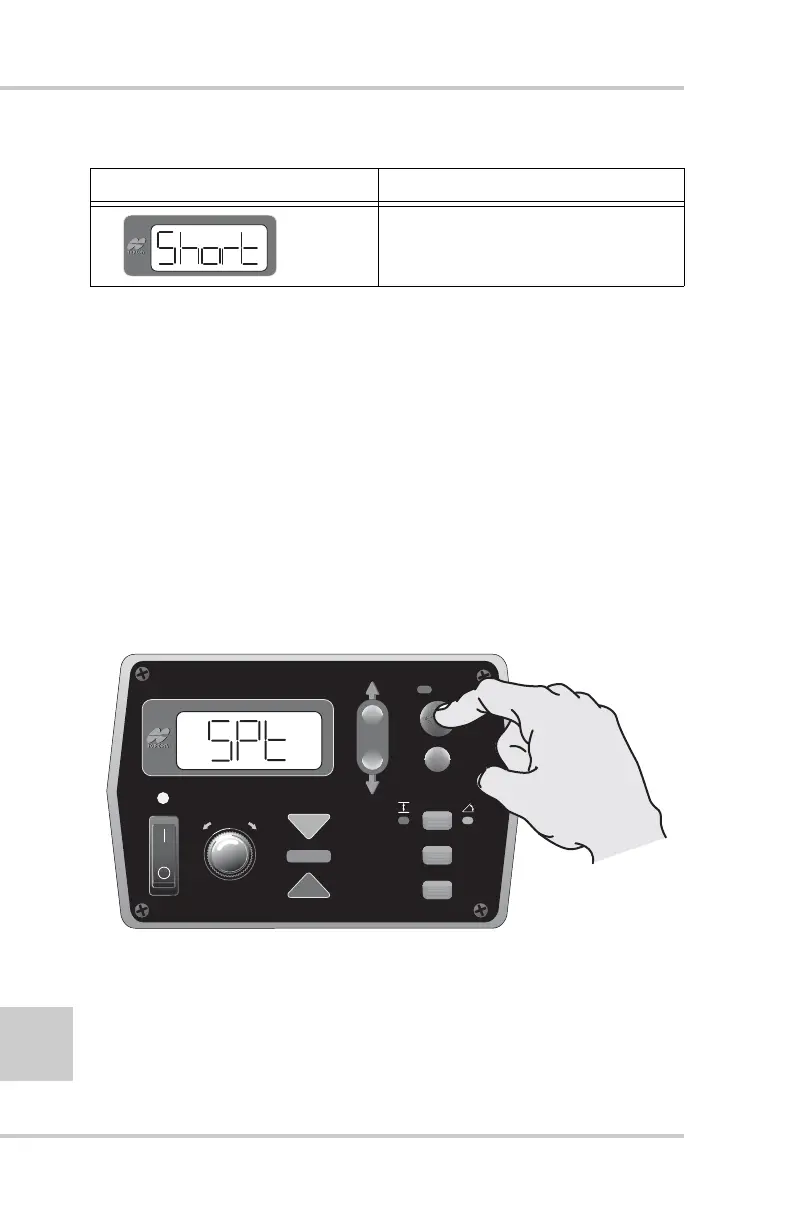

Figure 2-38. Selecting Elevation Offsets (Setpoints) Menu
3. Rotate the Grade Adjustment Knob to select the desired
number of active offsets (1–3).
4. Press the Auto button to return to the Performance Menu.
Valve wires have shorted electronically
Table 2-4. Test Solutions
Test Display Description
FiveSystem
AUTO
SURVEY
SET
(MENU)
