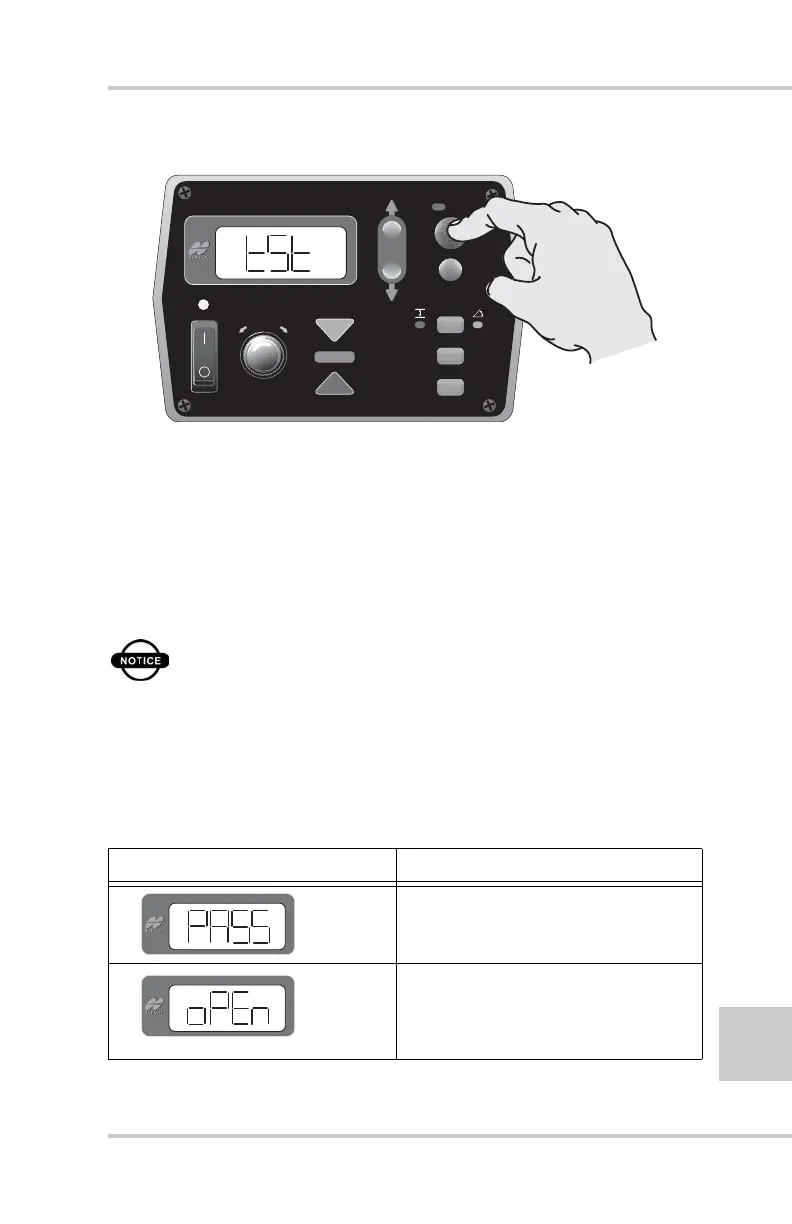

Figure 2-37. Selecting Test Menu
The raise valves will test first. The display will read “Pass”
if the raise valves test out OK. If there is a problem the
display will read “Open” or “Short”.
3. Press the Auto button to test the lower valves. The display
will read “Pass” if the lower valves test out OK. If there is a
problem, the display will read “Open” or “Short”.
NOTICE
This function always display OPEN when using
Danfoss valve output or when connected to a
tractor's existing proportional control valves.
Table 2-4 summarizes the Test solutions.
Table 2-4. Test Solutions
Test Display Description
Good Valve
Valve NOT connected
(OR Danfoss valve output being used)
(OR connected to existing proportional
control valves)
FiveSystem
AUTO
SURVEY
SET
(MENU)
