OBJECTIVE OPERATIONS
ANTERIOR SEGMENT PHOTOGRAPHY
Setting the picture position
Set the fixation target in the center with the .
Setting the illumination level
Set the illumination level by pressing the .
In TRC-NW8F plus, the auto illumination level adjustment function works so, it is not necessary
to adjust the illumination level manually.
See "Setting the illumination level" on page 46.
Setting the flash level
Set the flash level by pressing the .
See "Setting the flash level" on page 47.
Changing the diopter compensation lens
Push in the diopter compensation lens selector and change the diopter compensation lens to
(0).
See "Changing the diopter compensation lens" on page 48.
Centering and photography
The centering operation is done with the control lever.
For details about movement/adjustment of the instrument body with the control lever, see the
"MEMO" on page 49.

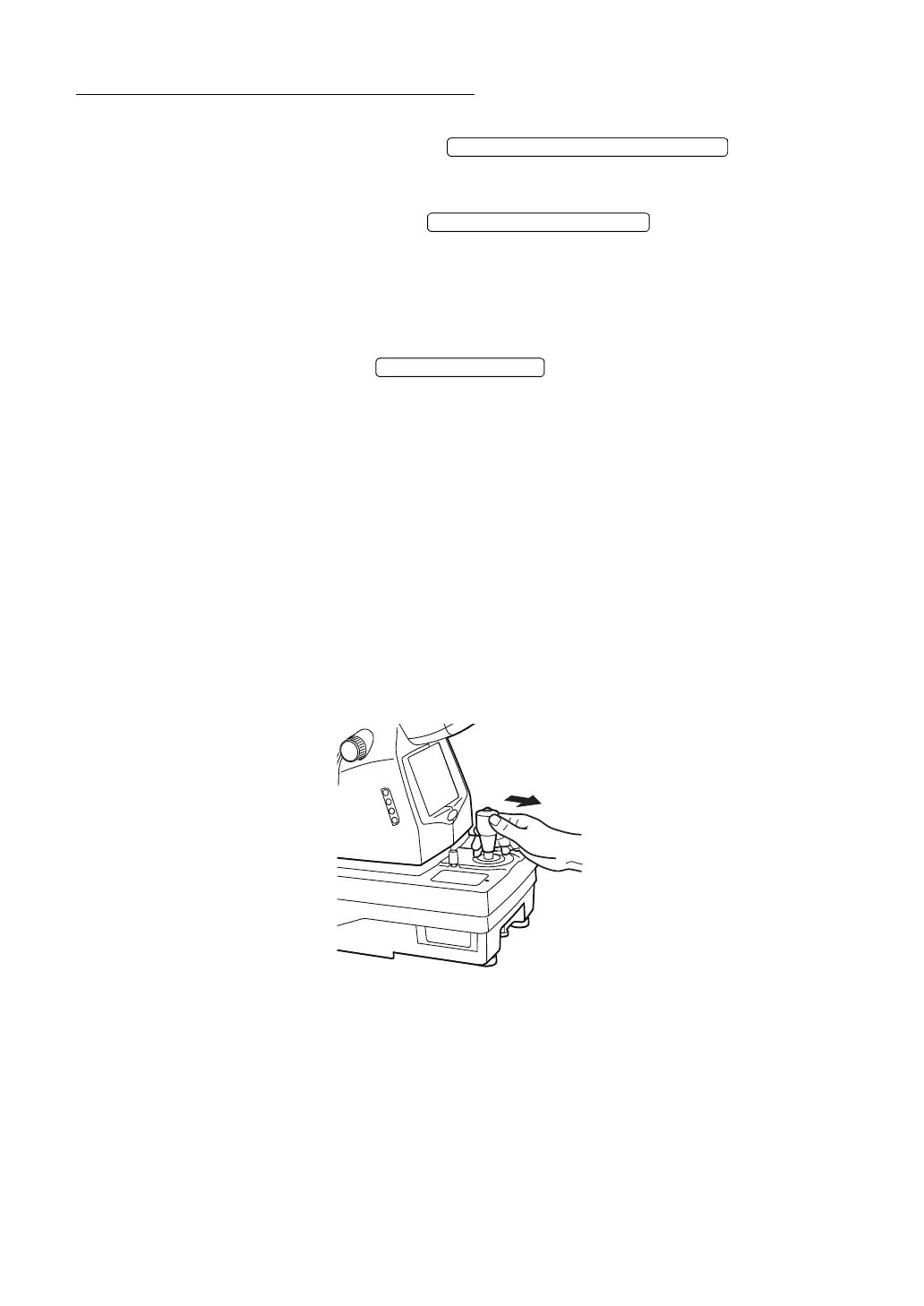

1 Hold the control lever and pull the instrument back toward the operator. Observe the ante-
rior segment image on the color LCD monitor.
FIXATION TARGET SELECTOR SWITCH
ILLUMINATION LEVEL SWITCH
