MAINTENANCE
Replacing the illumination lamp
• The service life of the illumination lamp is approx. 2,000 hours.
Replace the illumination lamp if it is burned or becomes whitened.
1 Turn the OFF ( ) and unplug the power cord.
2 Turn the control lever and raise the instrument body to it's limit.
3 Unscrew the lamp house cover with a coin, etc. to remove it.
4 Loosen the two set screws and remove the lamp terminal.
5 Hold the lamp at the bottom, and pull it out of the lamp holder, in a straight direction.
CAUTION
To avoid electric shock, be sure to turn the power switch off and
unplug the power cord before replacing the lamp.
CAUTION
To avoid burns, allow lamp to cool before touching.
NOTE
To avoid whitening due to fingerprints, do not touch the lamp with bare
fingers.
NOTE
Since the lamp is not shock resistant, handle it with particular care.

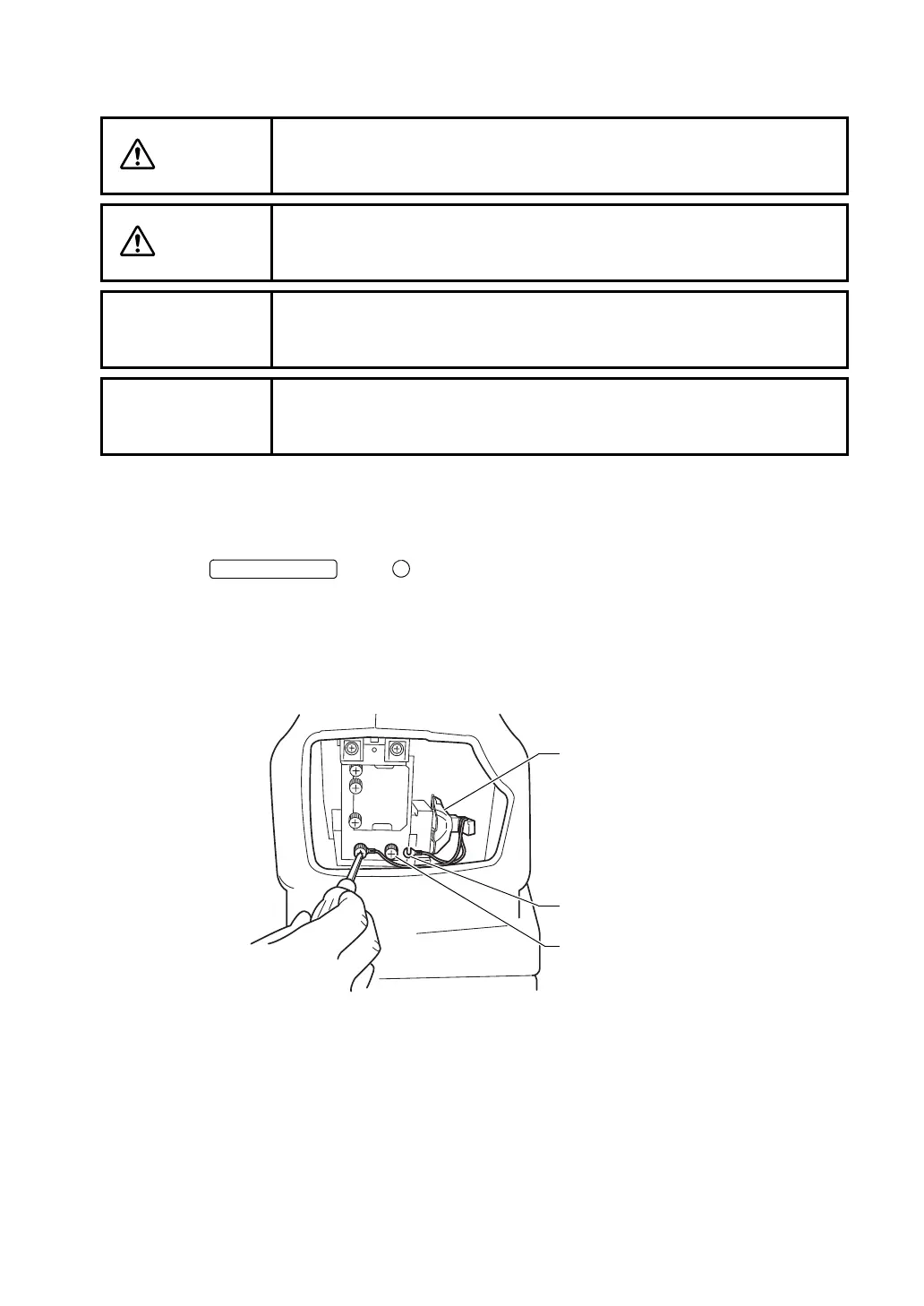

Lamp holder
Lamp terminal
Lamp terminal set screw
