TRANSPORTATION AND INSTALLATION MANUAL
144

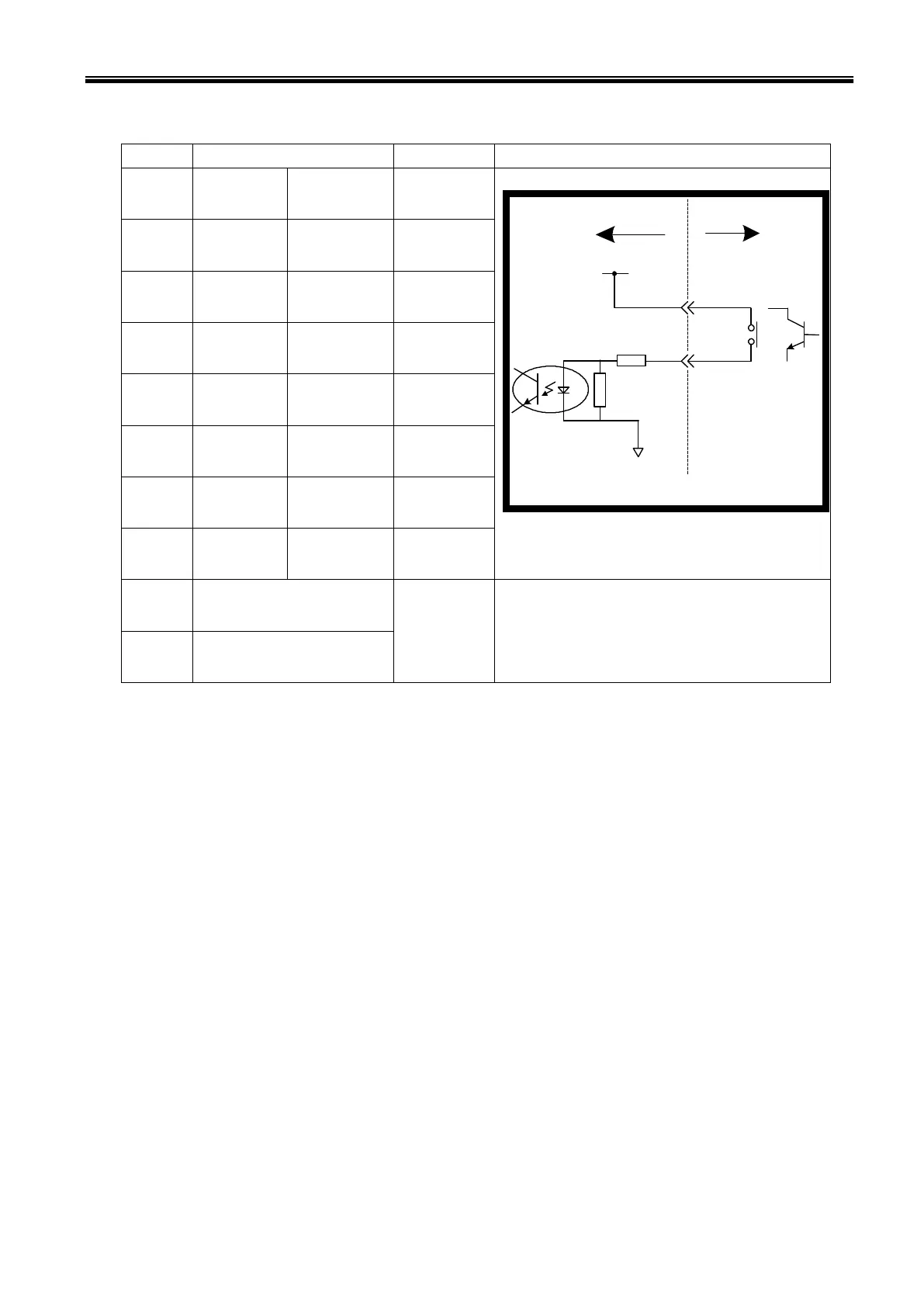

a-2) Input signal connector HAND (TS3100 Type-P)
Pin
Signal name
Signal No.
Input circuit and example of connections
1
D_IN1
Input signal 1
201
●
●
P24G
Contact or
transistor
Customer’s side
TS3100
[Sink type (-Common)]
P24V
2
D_IN2
Input signal 2
202
3
D_IN3
Input signal 3
203
4
D_IN4
Input signal 4
204
5
D_IN5
Input signal 5
205
6
D_IN6
Input signal 6
206
7
D_IN7
Input signal 7
207
8
D_IN8
Input signal 8
208
19
DC 24V(P24V)
20
DC 24V(P24V)
As input signals, no-voltage contacts or transistor open collector inputs are used.
No-voltage contact specifications:
Contact rating: 24 VDC, 10 mA or over (circuit current: approx. 7 mA)
Minimum contact current: 24 VDC, 1 mA
Contact impedance: 100  or less
Transistor specifications:
Withhold voltage between collector and emitter: 30 V or over
Current between collector and emitter: 10 mA or over (circuit current: approx. 7 mA)
Leak current between collector and emitter: 100 µA or less
