Toshiba TSL3000E Series User Manual

TRANSPORTATION AND INSTALLATION MANUAL
145

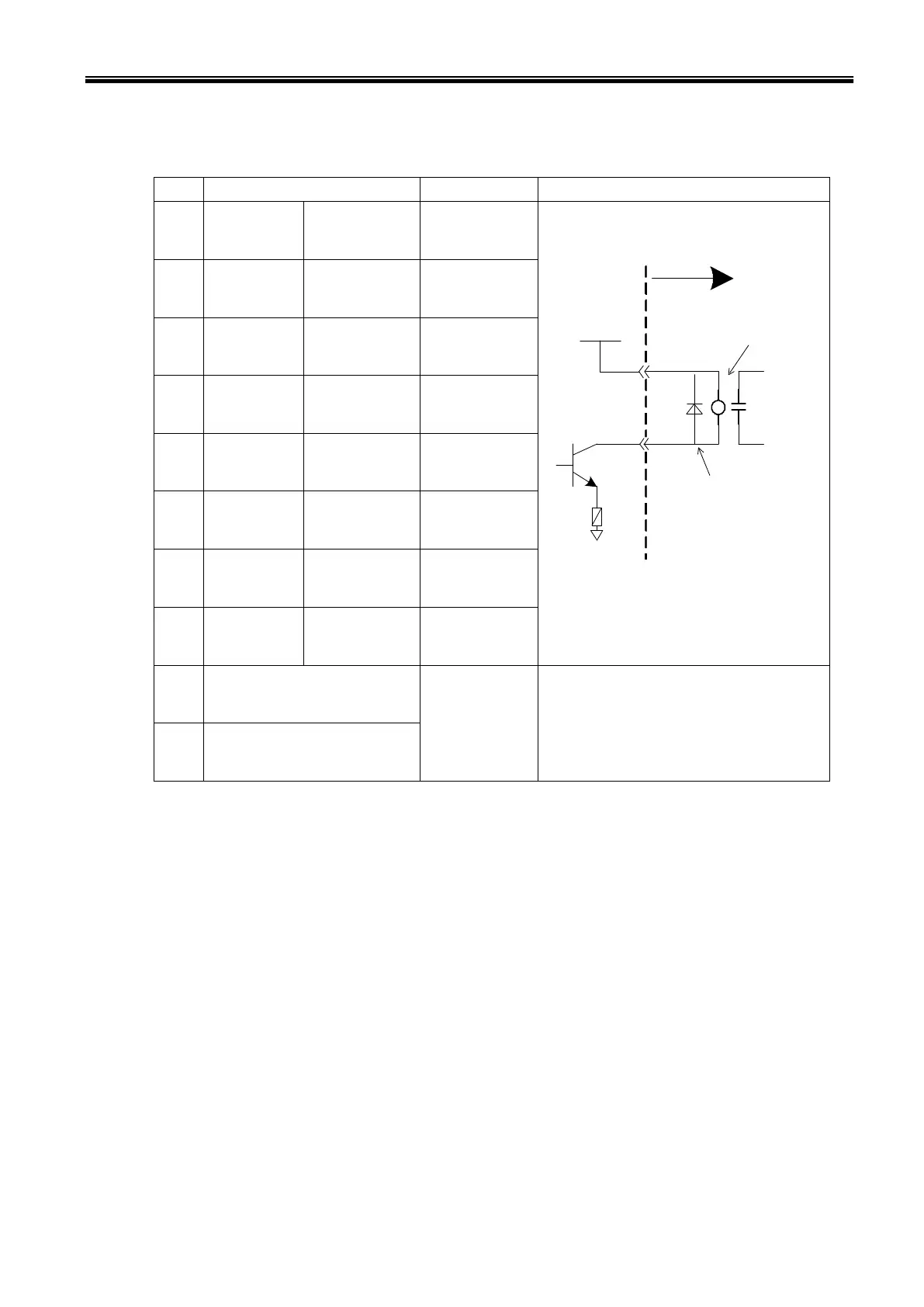

b-1) Output signal connector HAND (TS3100 Type-N)
Pin
Signal name
Signal No.
Pin
9
D_OUT1
Output signal 1
201
10
D_OUT2
Output signal 2
202
11
D_OUT3
Output signal 3
203
12
D_OUT4
Output signal 4
204
13
D_OUT5
Output signal 5
205
14
D_OUT6
Output signal 6
206
15
D_OUT7
Output signal 7
207
16
D_OUT8
Output signal 8
208
17
DC 24V(P24V)
18
DC 24V(P24V)
Customer’s side
P24V
●
P24G
●
●
[Sink type (-Common)]
DC relay
Diode for preventing counter
electromotive voltage
