88 Utilities
DAT-Link: Version 1.6/38
DSP Program: TS15 SIOMode: AES/EBU (0xa)
Playback Record
Time = 0:53 Time = 0:00
Left VU |*********** Left VU |
Right VU |*********** Right VU |
Buffering |********************| Buffering |********************|
Sampling rate = 8000->48000 Sampling rate = 48000
Precision = 16 Precision = 16
Encoding = Linear Encoding = Linear
Gain = 1.00 Gain = 1.00
Channels = Stereo Channels = Mono
State = Active State = Inactive
Error = No Error Error = No Error
Waiting = 0 Waiting = 0
Left CS = 040000020000000000000000 Left CS =040000020000000000000000
000000000000000000000000 000000000000000000000000
Right CS= 040000020000000000000000 Right CS=040000020000000000000000
000000000000000000000000 000000000000000000000000
User Bits = 00000000 User Bits = 00000000
clock = Internal locked = 1
master = 0 source = RCA AES status= 0x0000
skipSilence= 0 loopback = 0

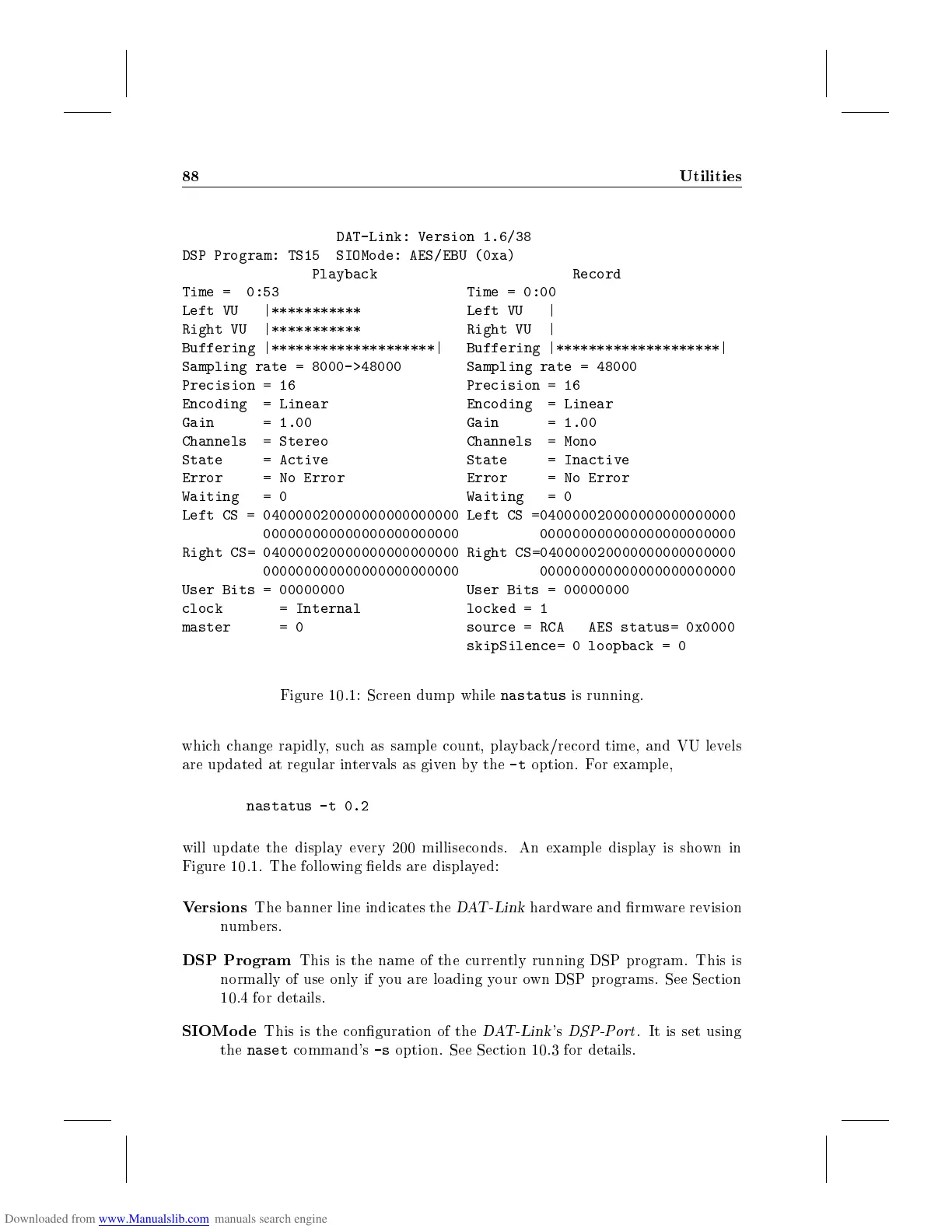

Figure 10.1: Screen dump while
nastatus
is running.
whichchange rapidly, such as sample count, playback/record time, and VU levels
are updated at regular intervals as given by the
-t
option. For example,
nastatus -t 0.2
will up date the display every 200 milliseconds. An example display is shown in
Figure 10.1. The following elds are displayed:
Versions
The banner line indicates the
DAT-Link
hardware and rmware revision
numb ers.
DSP Program
This is the name of the currently running DSP program. This is
normally of use only if you are loading your own DSP programs. See Section
10.4 for details.
SIOMo de
This is the conguration of the
DAT-Link
's
DSP-Port
. It is set using
the
naset
command's
-s
option. See Section 10.3 for details.
