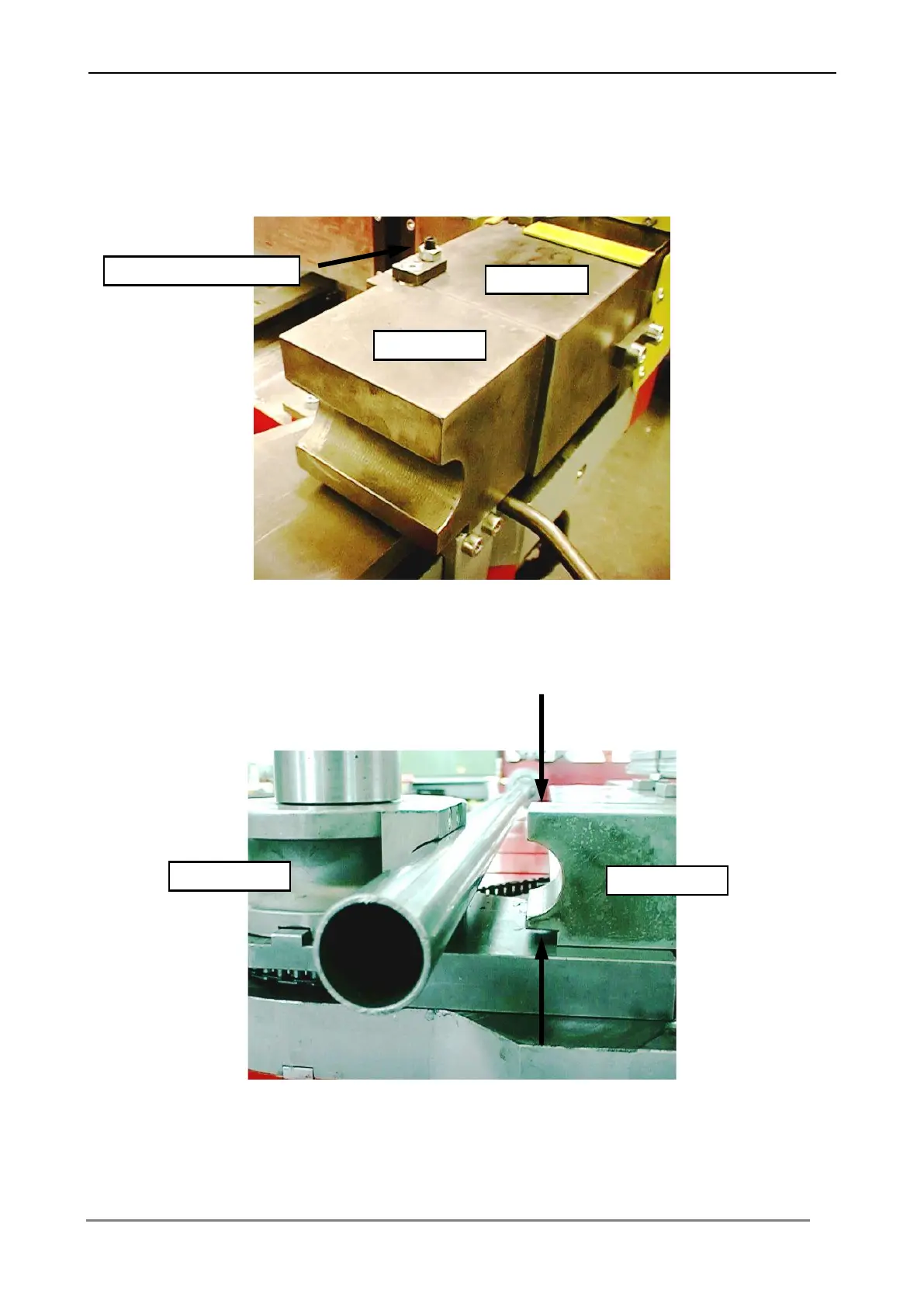

3. Set the clamp die into the guide of the clamping die carrier. By small tools an
adapter must be used.
4. Adjust the clamp die to the same height as the bend die by the adjustment
screw. Fix the screw by the counter nut.
Clamp die
Adapter
Clamp die
Adjustment screw
Bend die
