8.1.1 Setting up of the bending tools

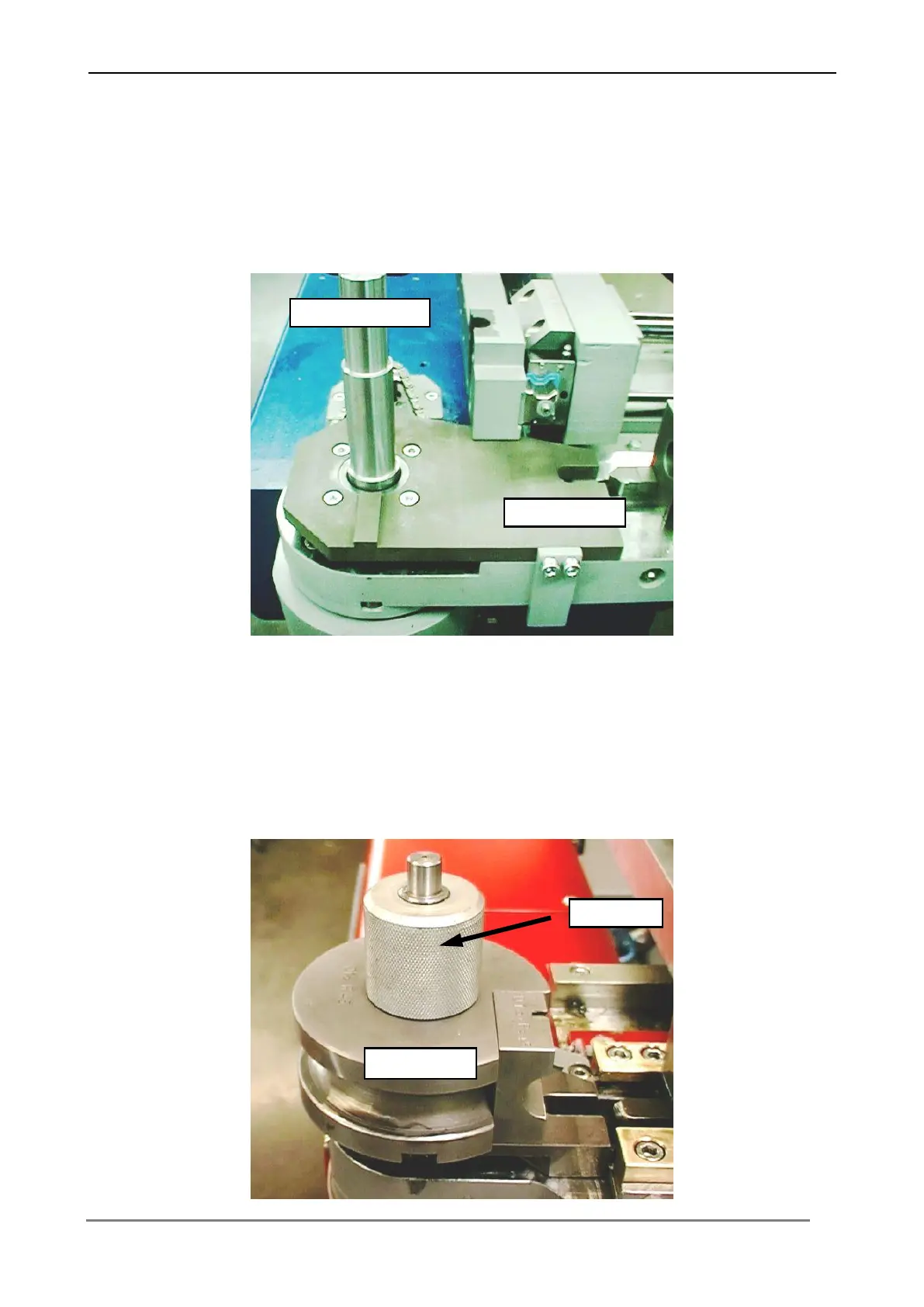

1. Set the adapter shaft into the mounting hole of the tool plate.
2. Set the bend die on the adapter shaft. The bend die must be connected with
the tool plate by the slot and spring connection. Tighten the bending die by the
screw.
Adapter shaft
Bend die
Tool plate
Screw
