Operating
86

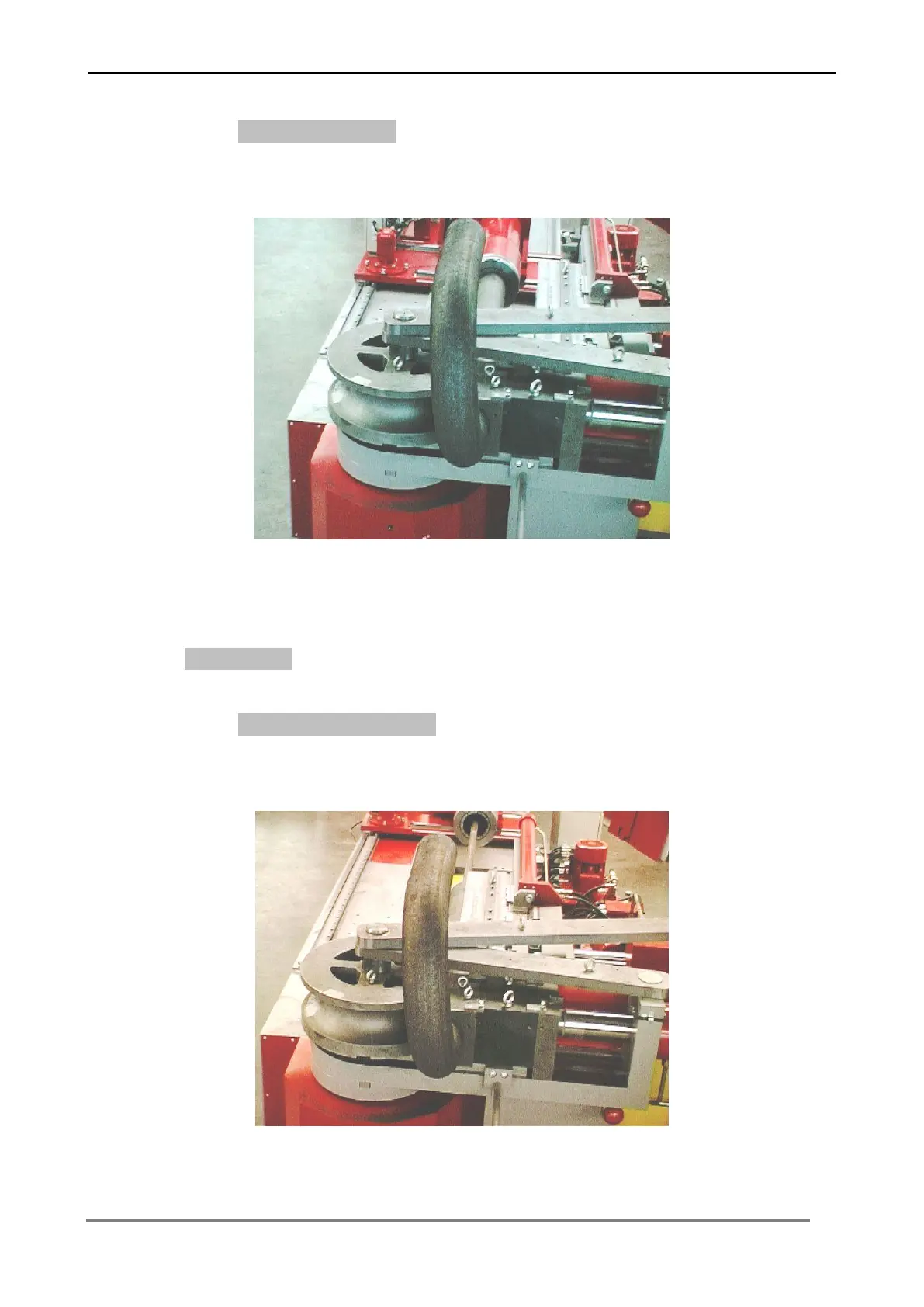

 Press Clamping forward. The tube will be clamped between the
bending die.
 If the off-set bend device is in the “safety area”, open the chuck by pressing
Chuck open and move the off-set bend device out of the safety area.
 Press Outer support forward. The pressure die moves forward against the
tube.
