The required accessories are:
Perpendicularity probe
 V7-400, V7-700, V9-400 and V9-700: TA-MS-101 (ref. 276 940001 001)
 V7-1100 and V9-1100: TA-MS-102 (ref. 276 940001 002)
 V7-1800: TA-MS-104 (ref. 609 02 021)
Holder for perpendicularity probe
 V7: TA-MS-104 (ref. 609 02 021)
 V9: TA-IH-136 (ref. 612 11 073)
Procedure:

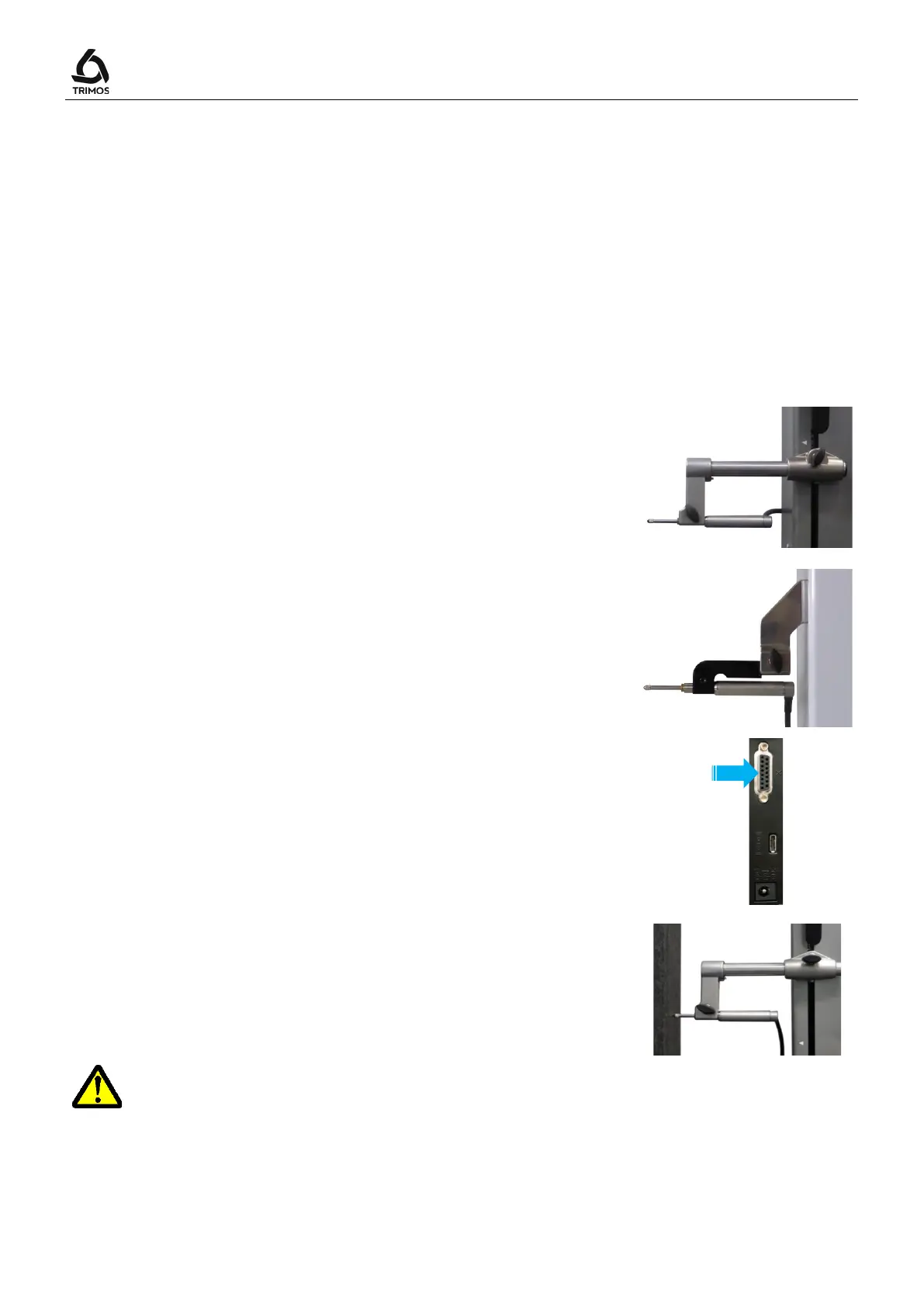

1. Mount the electronic perpendicularity probe in its
holder.
V7
V9
2. Connect the perpendicularity probe to the column
3. Place the part to be measured against the probe such
that the entire portion to be measured is in contact
with it. Bring the carriage to its starting position.
To get optimum measuring precision, the instrument base must be completely
parallel to the side to be measured.
Pay attention that the cable of the probe does not create any stress on the probe
holder.
