TSC TTP-247 Programming Manual

TSC AUTO ID Technology Co., Ltd. 48 Copyright 2013 All Rights Reserved.

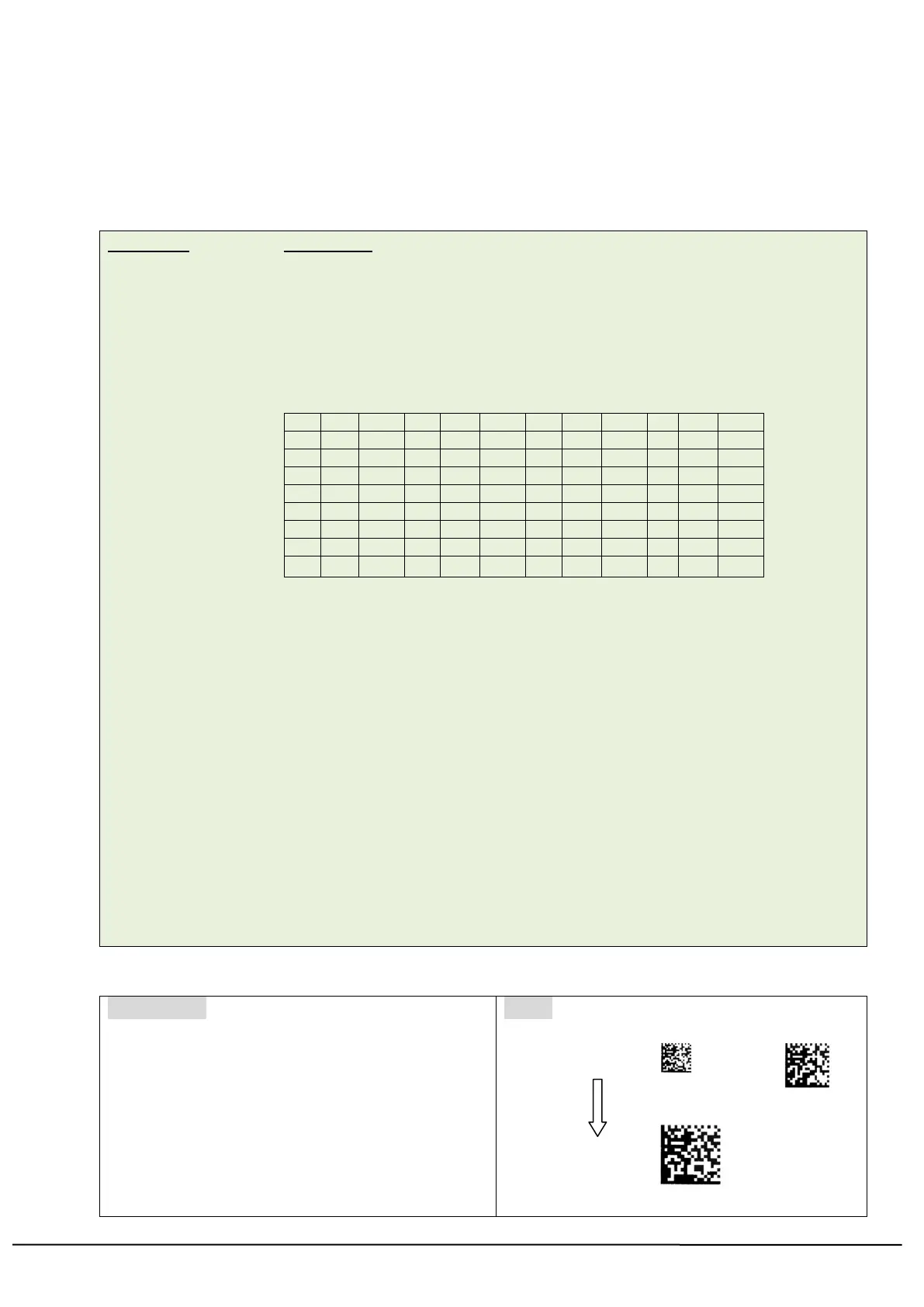

 DMATRIX
Description
This command defines a DataMatrix 2D bar code. Currently, only ECC200 error correction is supported.
Syntax
DMATRIX x,y,width,height,[c#,x#,r#,row,col,]"content"
Parameter
Description
x
Horizontal start position (in dots)
y
Vertical start position (in dots)
width
The expected width of barcode area (in dots)
height
The expected height of barcode area (in dots)
c#
Escape sequence control character (decimal digit)
Ex. c126 means ~
(1) ~X is shift character for control characters.
~X
Hex
ASCII
~X
HEX
ASCII
~X
HEX
ASCII
~X
HEX
ASCII
~@
00
NUL
~H
08
BS
~P
10
DLE
~X
18
CAN
~A
01
SOH
~I
09
HT
~Q
11
DC1
~Y
19
EM
~B
02
STX
~J
0A
LF
~R
12
DC2
~Z
1A
SUB
~C
03
ETX
~K
0B
VT
~S
13
DC3
~[
1B
ESC
~D
04
EOT
~L
0C
FF
~T
14
DC4
~\
1C
FS
~E
05
ENQ
~M
0D
CR
~U
15
NAK
~]
1D
GS
~F
06
ACK
~N
0E
SO
~V
16
SYN
~^
1E
RS
~G
07
BEL
~O
0F
SI
~W
17
ETB
~_
1F
US
(2) ~1 means FNC1.
(3) ~dNNN creates ASCII decimal value NNN for a codeword. Must be 3
digits. 000 ~ 255.
(4) ~ in data is encoded by ~~.
x#
Module size (in dots)
r#
Rotation
0 : No rotation
90 : Rotate 90 degrees clockwise
180 : Rotate 180 degrees clockwise
270 : Rotate 270 degrees clockwise
row
Symbol size of row: 10 to 144
col
Symbol size of col: 10 to 144
content
Content of DataMatrix 2D bar code
Note:
This command has been supported since V6.89 EZ and later firmware.
Example
Sample code
SIZE 4,3
GAP 0,0
DIRECTION 1
CLS
DMATRIX 10,110,400,400,"DMATRIX EXAMPLE 1"
DMATRIX 310,110,400,400,x6,"DMATRIX EXAMPLE 2"
DMATRIX 10,310,400,400,x8,18,18,"DMATRIX EXAMPLE 3"
PRINT 1,1
Result

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
