TSC TTP-247 Programming Manual

TSC AUTO ID Technology Co., Ltd. 53 Copyright 2013 All Rights Reserved.
Example

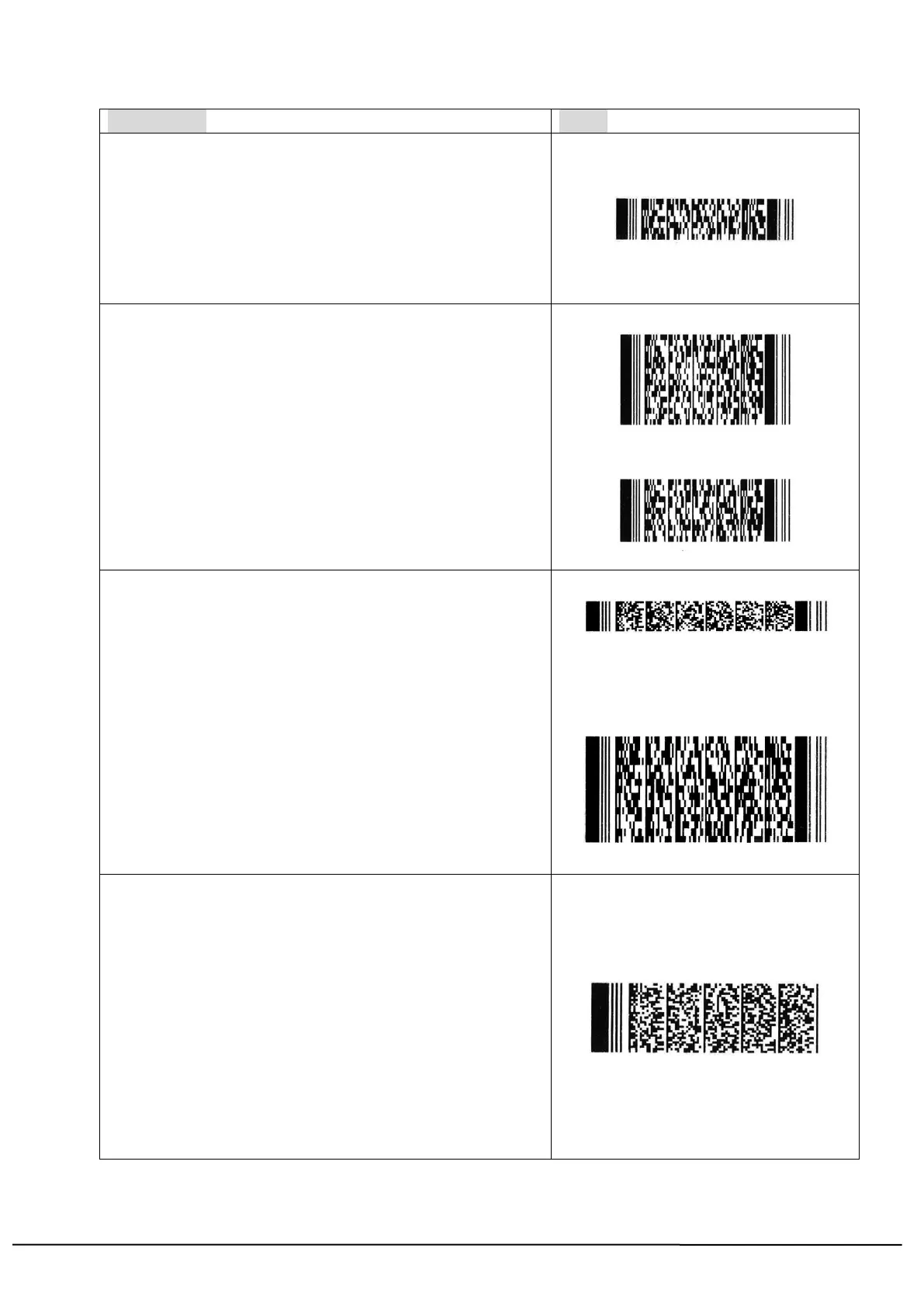

Sample code
Result
SIZE 4,1
GAP 0,0
DIRECTION 1
REM *****WITHOUR OPTIONS*****
CLS
PDF417 50,50,400,200,0,"Without Options"
PRINT 1,1
SIZE 4,1.5
GAP 0,0
DIRECTION 1
REM *****OPTION:E3*****
CLS
PDF417 50,50,400,200,0,E3,"Error correction level:3"
PRINT 1,1
REM *****OPTION:E4*****
CLS
PDF417 50,50,400,200,0,E4,"Error correction level:4"
PRINT 1,1
SIZE 4,1.5
GAP 0,0
DIRECTION 1
REM *****OPTION:E4 W4*****
CLS
PDF417 50,50,600,600,0,E4,W4,"Error correction level:4 module
width 4 dots"
PRINT 1,1
REM *****OPTION:E4 W4 H4*****
CLS
PDF417 50,50,600,600,0,E4,W4,H4,"Error correction level:4 module
width 4 dots bar height 4 dots"
PRINT 1,1
SIZE 4,1.5
GAP 0,0
DIRECTION 1
REM *****OPTION:E4 W4 H4 R40 C4 T1*****
CLS
PDF417 50,50,800,800,0,E4,W4,H4,R40,C4,T1,"Error correction
level:4
Module Width 4 dots
Bar Height 4 dots
Maximum Number of Rows:5 Rows
Maximum number of columns:90 Cols
Truncation:1"
PRINT 1,1

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
