Mobile Belt Loader Model 660 Operation
Operation Manual
Operation - 2 - 12 CD397-Oper

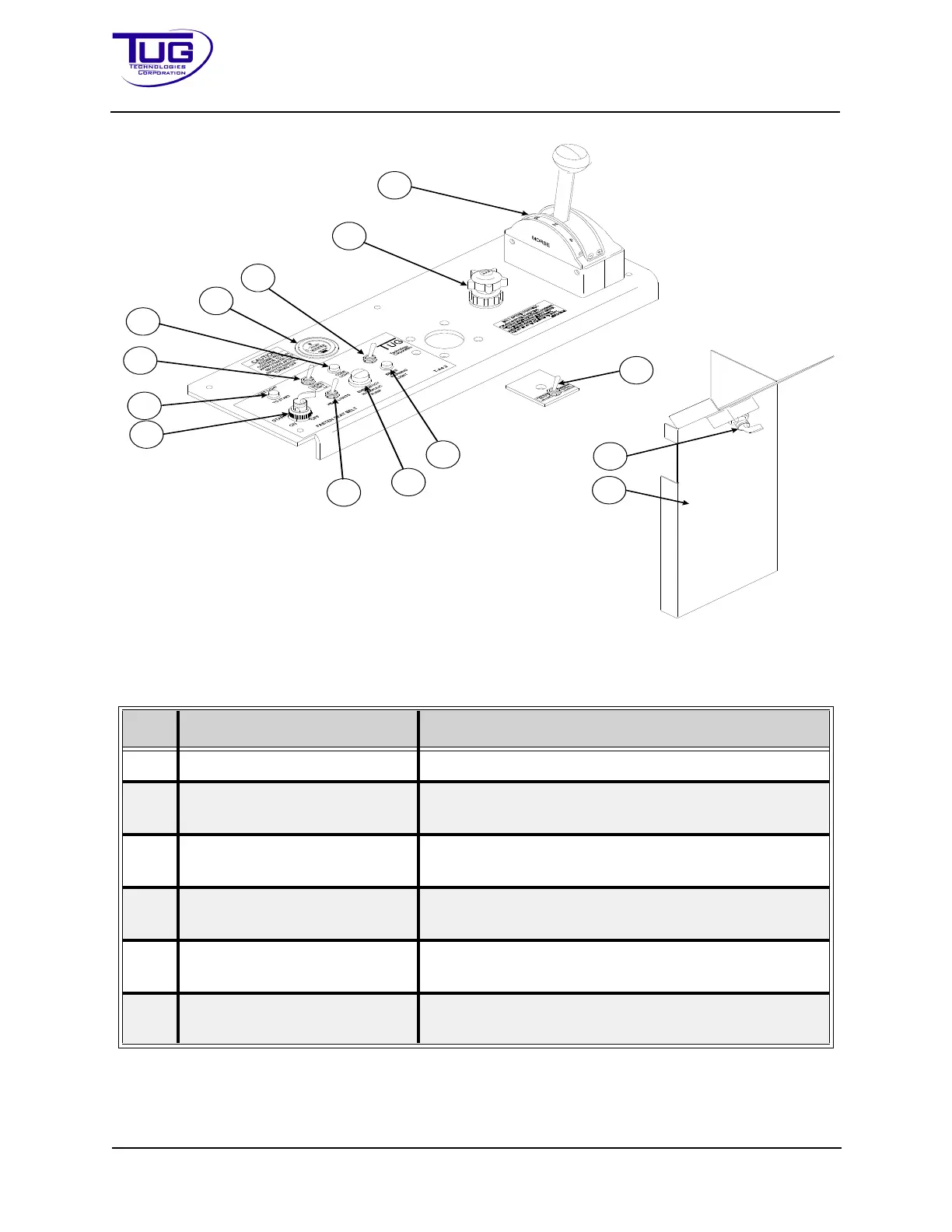

FigureOperation-2-1InstrumentPanel-Ford2.5L
TableOperation-2-1InstrumentPanelDescription-Ford2.5L
No. Name Description
1 Ignition Switch Turn this switch to start or turn off the engine.
2 Warning Light (Green) This light will not illuminate if an e-stop on the vehi-
cle is activated.
3 Spot Light Switch (Optional) This switch turns the spotlight on. Press down for
off, or up for on.
4 Warning Code Light (Red) This light illuminates briefly during engine start and
when an engine fault occurs.
5 Hour Meter This gauge displays the number of operation hours
on the tractor.
6 Fuel Select Toggle Switch
(Optional)
This switch controls the dual fuel operation. Select
LP or gasoline as the engine fuel source.
