TYM T723 User Manual

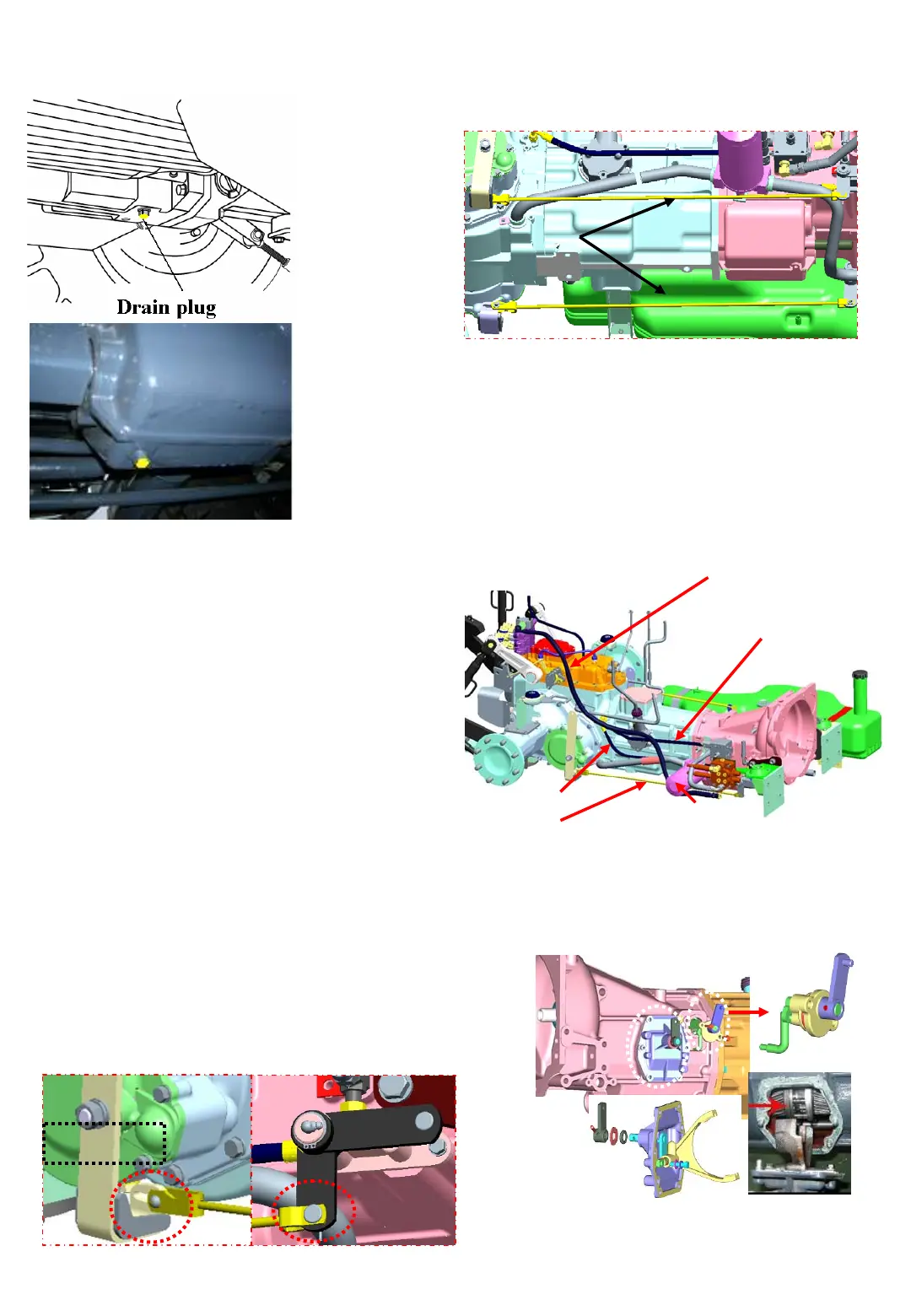

B: Division of the chassis.
1) Drain the transmission case of oil
2-15
Fig.2-49 Exterior of a transmission
12) Remove the suction, delivery and drain pipes.
13) Remove the delivery pipe and the valve for
the PTO clutch.
14) Remove the fuel tank and the fuel hoses.
Front
transmission
Spacer
transmission
Fig.2-47 Brake rods
Rear point
Front point
Fig.2-48 View of the under chassis
Fig.2-50 Reverse shift metal
15) Remove the reverse shift metal, the creep
shift rod and the creep shift metal.
Delivery pipe
Delivery PTO pipe
Drain pipe
Brake rod
Oil filter
FrontSpacer
Rear
Creep
Reverse
2) Wedge both sides of the front axle to prevent
the engine from tilting (Refer to the Fig 2-28 in
the service manual)
3) Remove the front wheel drive shaft.
(Refer to the Fig 2-6 in the service manual)
4) Hold or support the cabin with a crane or stands.
5) Place a jack under the bottom of the front
transmission case to support.
6) Place a jack under the bottom of the rear
transmission case to support.
7) Remove the main shift and the sub shift levers.
The levers can be separated in the middle
(Refer to the Fig. 2-36 in the service manual)
8) Remove the control rods of the PTO shift, the
creep shift and 4WD shift levers from the
transmission.
9) Remove the position , draft control levers,
External hyd. Levers, Slow-return check valve
knob and Joy-stick levers.
10)Remove the rear tire assembly.
11)Remove the brake rods (LH, RH)
Brake rods
