1.3 REASSEMLBY
(1) Sub Assembly of reverse shaft and related parts.
5-13
a. Install Synchro-cups(34) on gear(16) and gear(21) respectively and retain them securely with the
snap rings C
b. Install synchro-hub comp(35) and above sub- assemblies on reverse shaft(18)
Note : As each synchromesh assembly maintains a specified installed width, be sure not to mix
different pairs of the synchro-hub comp, and the synchro-cup
c. Install washers (15) and install the bearings positively.
Note : As these washers have their own directions of installation, be strict to install them correctly.

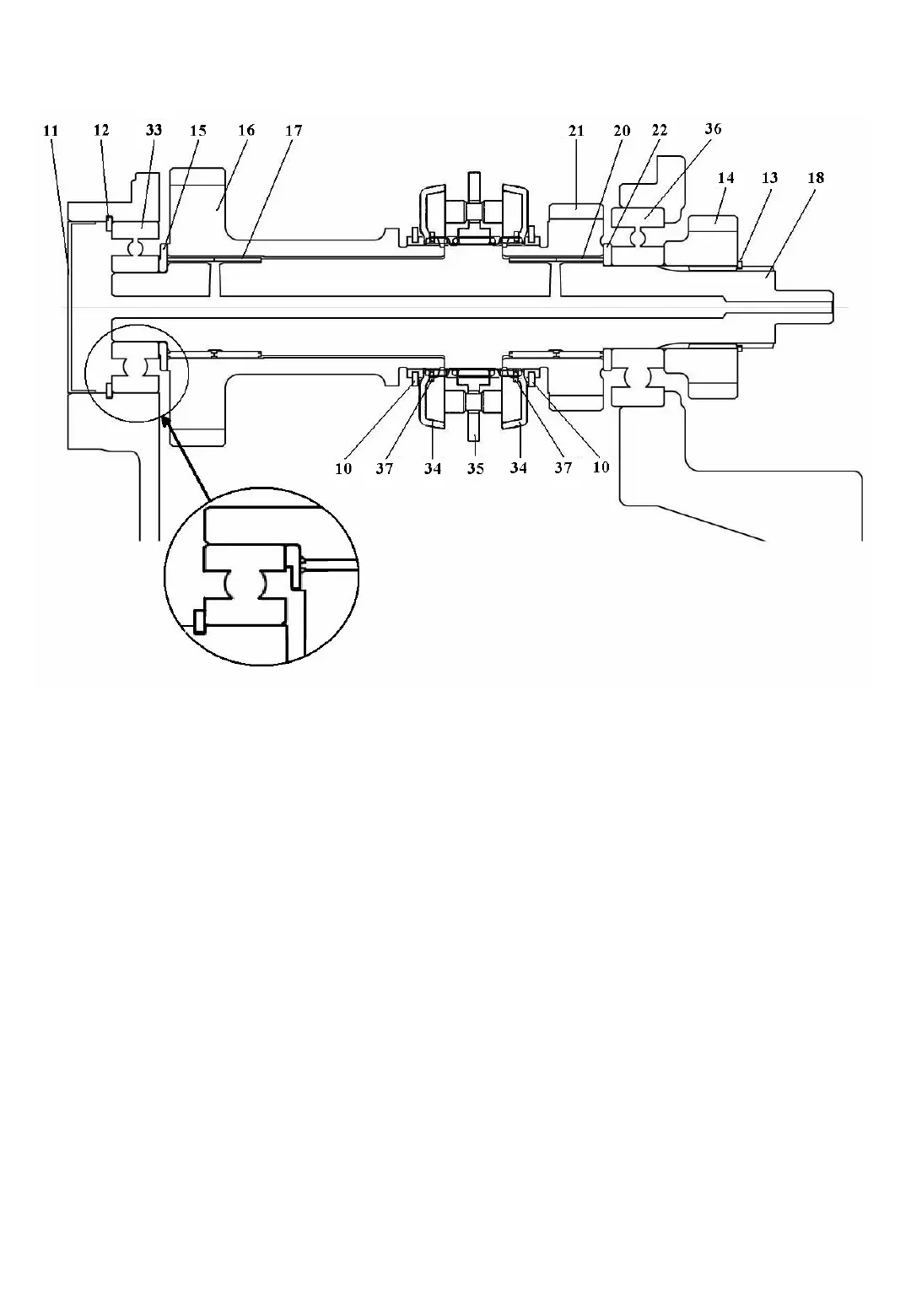

Fig.5-26
