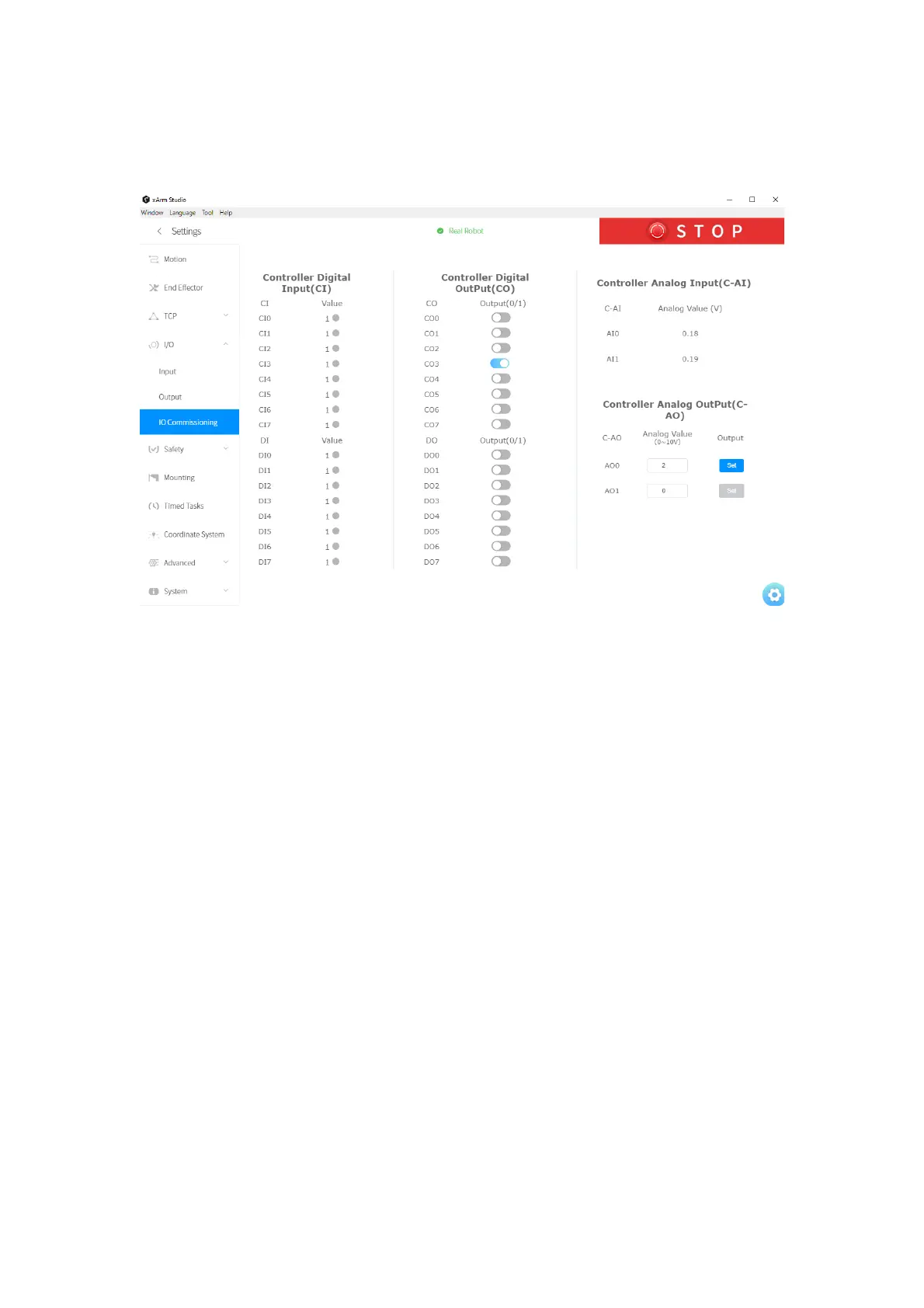

1.4.4.3 IO Commissioning
In this interface, the IO input status and IO output status of the control
box can be monitored, and the IO output status of the control box can be
controlled by clicking the button.
