teaching 4 points.
Select: Select the data to be deleted.
Set as Default: Set the offset data as the default offset.
Default: The data is the default current base coordinate offset.
Cancel: Cancel the selection.
Save: Save the modified data.
Discard: Discard the modified data.
Example:
When expressed in coordinate system {A}:
B is (207,0,112,180,0,0), D
AC
= 1000mm, if user want to set the world reference
coordinate system to {C}, just express the position and orientation of user
coordinate system {C} in coordinate system {A}.

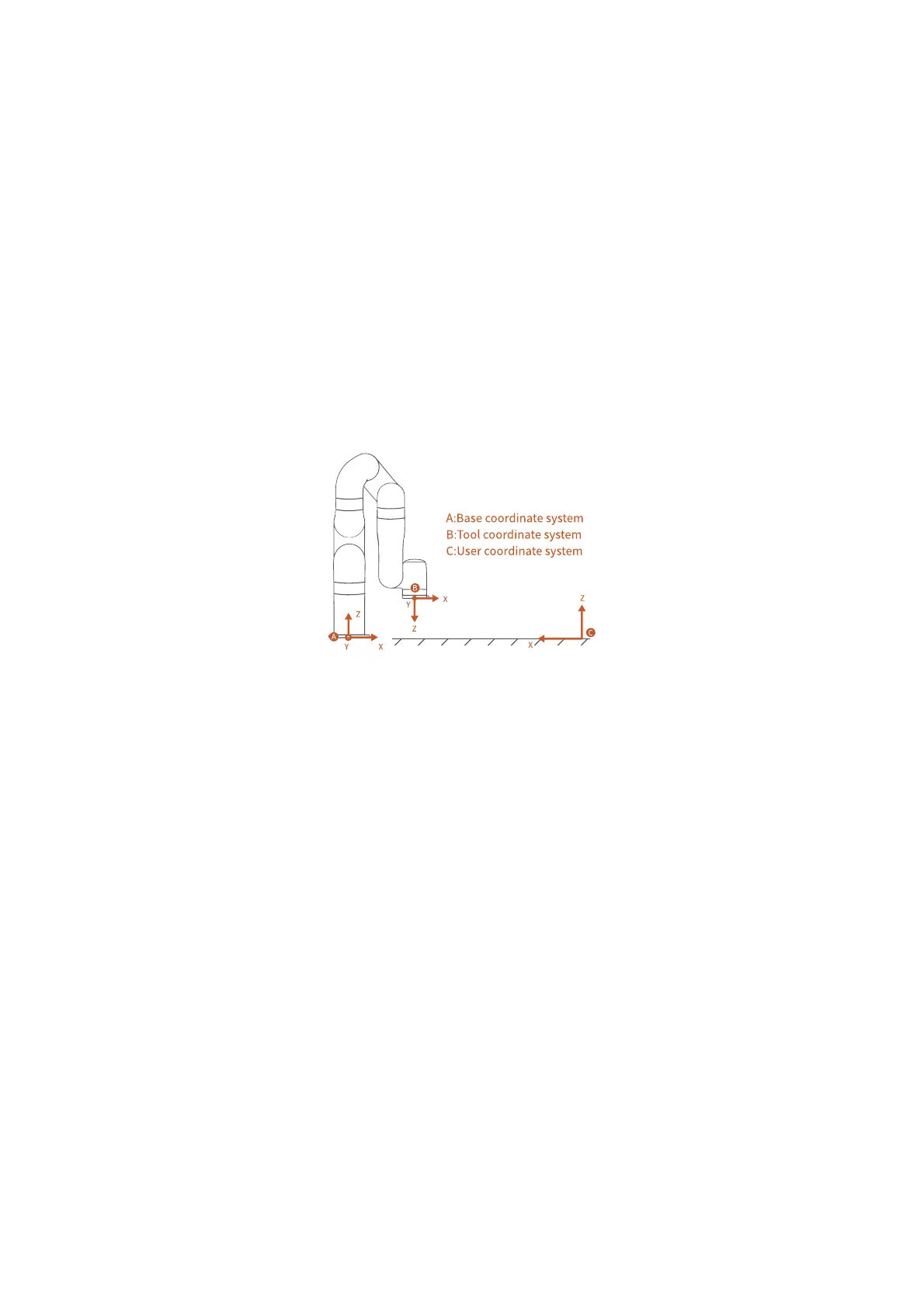

As figure shown, the offset of the base coordinate system should be
(1000,0,0,0,0,180).
Former TCP coordinates of B (207,0,112,180,0,0) in base coordinate system, after
user coordinate system offset setting:
Becomes: B ’(793,0,112,180,0,180)
