RF POWER SUPPLY and MATCHINGBOX

9. Reference Materials

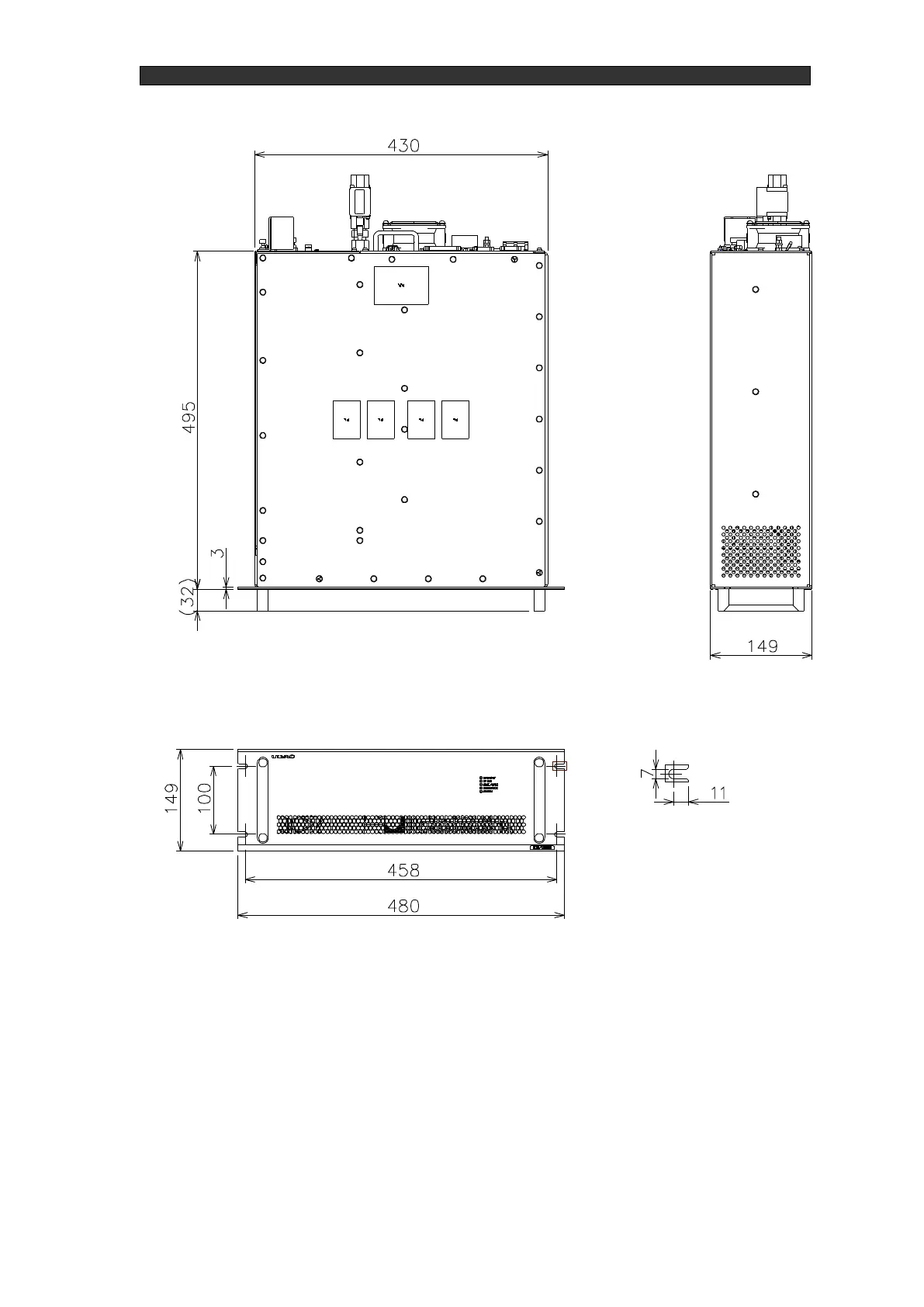

Figure 9-4 RFS-1330N/RFS-1350N outline drawing (standalone controller type)
