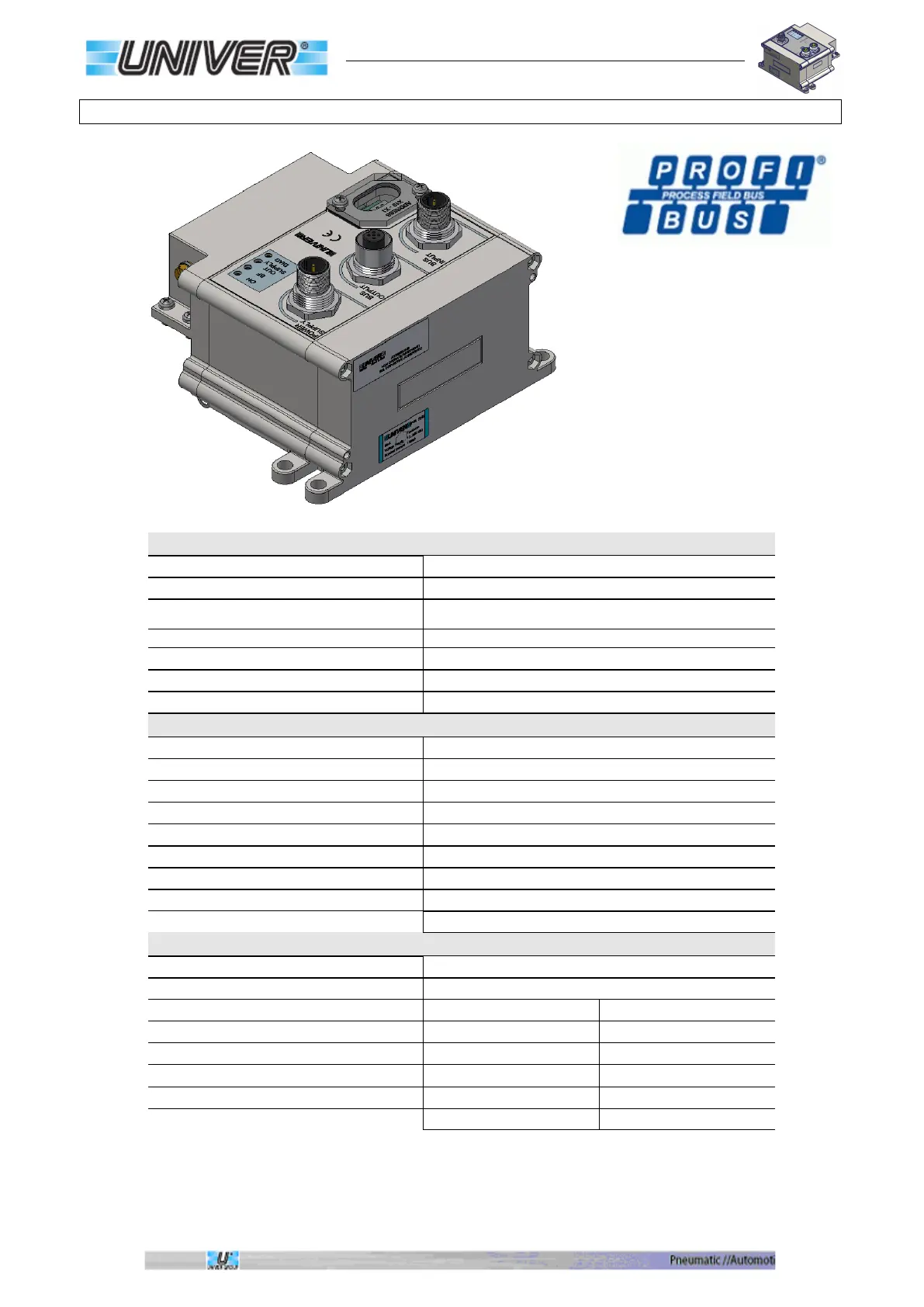

TCxP and TExP modules - Profibus

Fieldbus data DP Profibus

Input Bus connector Circular M12 Male 4 pin B code

Output Bus connector Circular M12 Female 4 pin B code

System LEDs

ON Green

DIAG Red

Auxiliary LEDs

OUT SUPPLY Green

BUS LED

BF Red

Selectable Slave Adress Selectable from 00 to 99

Commutation speed 9.6Kbaud to 12Mbaud (AutoBode)

Electrical data

Connector power supply Circular M12 male 4 pin A code

Logic voltage / digital inputs (VLS24) 24 Vdc ± 15%

Nominal power 120mA (TCxP)

Maximal power for digital inputs 1,5A @ 20°C – overload protection

Manifolds/outputs voltage (VA24) 24 Vdc -10% +15% (valves limit)

Maximal power for all outputs (VA24) 2,5A max – overload protection

Manageable outputs for valve manifolds 24 max coils - (12 bistable valves - 1,5A for 12 coils)

Manageable auxiliary digital outputs 40 digital outputs (64 total outputs with 24 manifold coils)

Manageable auxiliary digital inputs 64 digital inputs

Environmental conditions

Weight TCxP/TExP 370g/280g

Module overall dimensions 100x123x75 mm / 90x123x75 mm

Protection degree IP 65 (with connectors) IEC 60529

Relative humidity 5 to 85% IEC 60068-2-30

Operating temperature

5°C

50°C

IEC 60068-2-1

Storage temperature

-25°C

80°C

IEC 60068-2-2

Vibrations 5g tested 10-500Hz IEC 60068-2-6

Shock 22g IEC 60068-2-27
