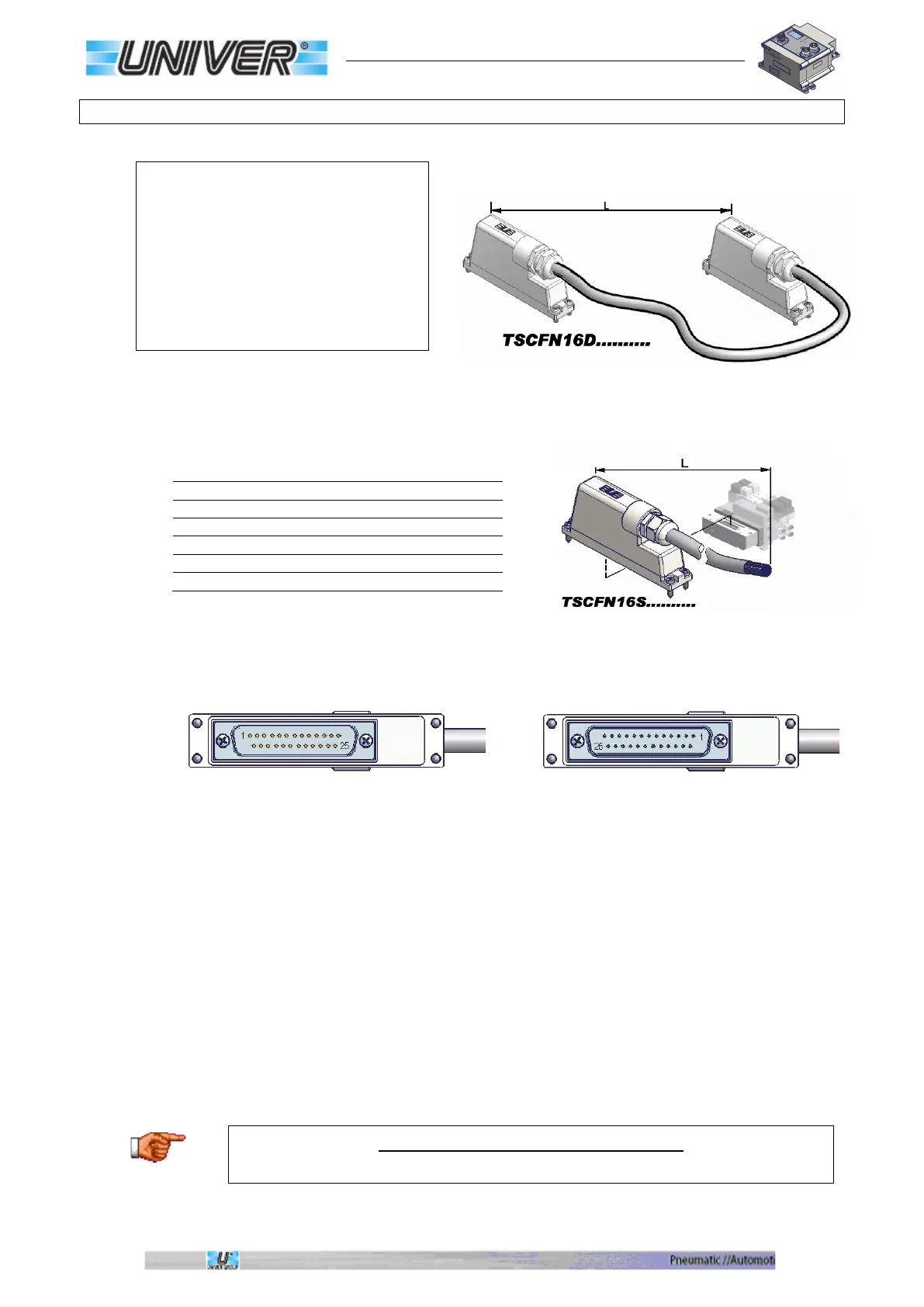

Connection cables for remote modules
 Using TSCF cables, the connection to the valve
manifold by the user is easier.
 The use of the 25-pin DSub connector makes it
possible to interface with a wide range of
standard valve manifolds.
 The correctly installed UNIVER case guarantees
the IP65 protection degree.

Max. bending radius of the cable:
Fixed installation 80mm, mobile installation
120mm
PG9 output cable press diameter 9.4mm.
Cables with connector D-sub
TSCFN16D0300
Double connector 16 signals L 3mt.
TSCFN16D0500
Double connector 16 signals L 5mt.
TSCFN16D1000
Double connector 16 signals L 10mt.
TSCFN16S0300
Double connector 16 signals L 3mt.
TSCFN16S0500
Single connector 16 signals L 5mt.
TSCFN16S1000
Single connector 16 signals L 10mt.
Dsub 25 pins male
Dsub 25 pins female
For other accessories please visit our website
www.univer-group.com
