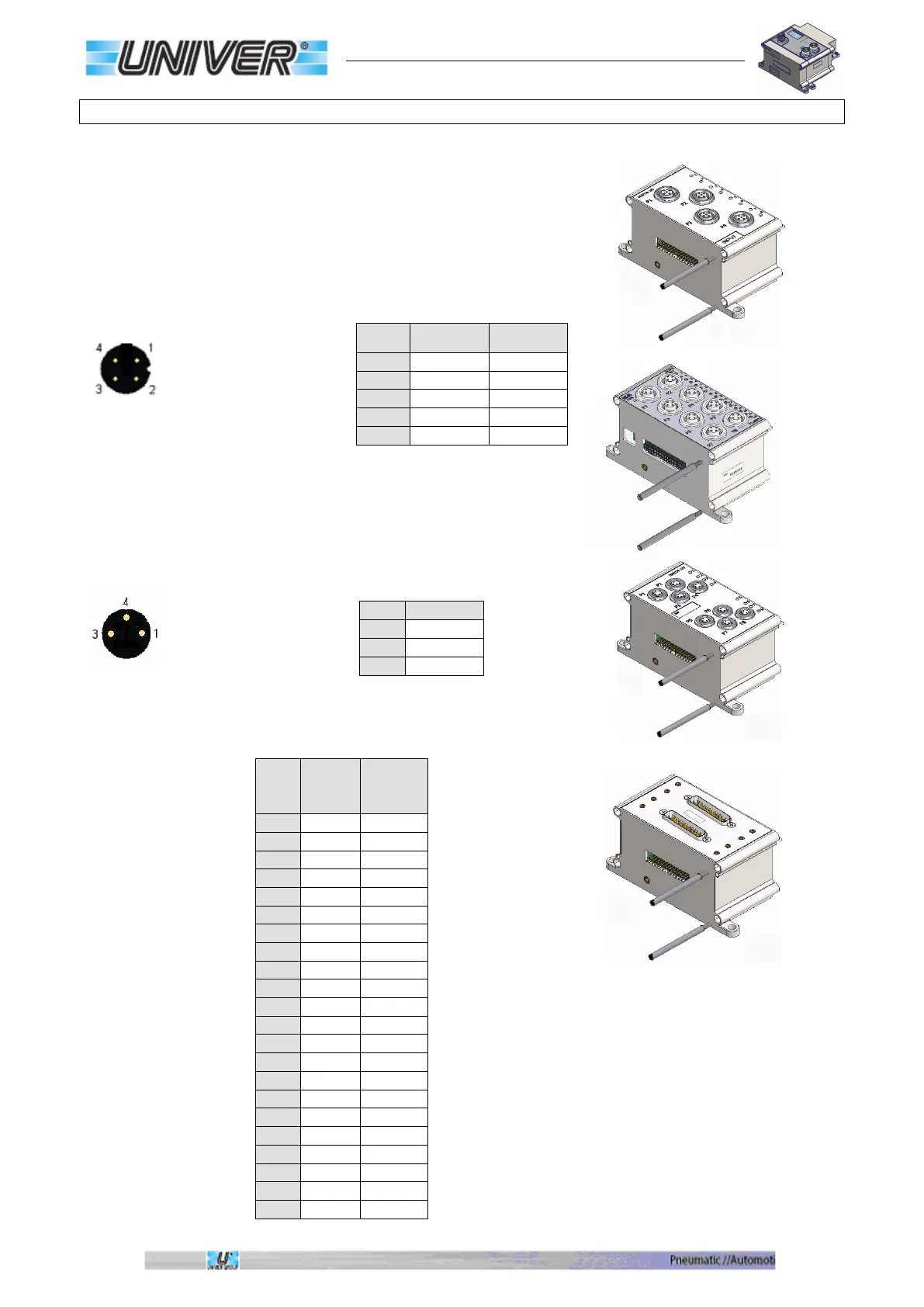

Auxiliary input and ouput modules
COD.TC8I412
N.8 digital inputs - M12
COD.TC16I812
N.16 digital inputs - M12
COD.TC8U412

N.8 digital outputs - M12
M12 Female A code
Contact side view
COD.TC8I808
N.8 digital inputs - M8

M8 Female
Contact side view

Pin
TC8I412
TC16I812
TC8U412
1
VLS24
-
2
Input 2
Output 2
3
0VLS
0VA
4
Input 1
Output 1
Case
Shield
Shield
Pin
TC8I808
1
VLS24
3
0VLS
4
Input
P1-P2
Pin N.
TCR32ID TCR32UD
1
Input 0-0
Output 0-0
2
Input 0-1
Output 0-1
3
Input 0-2
Output 0-2
4
Input 0-3
Output 0-3
5
Input 0-4
Output 0-4
6
Input 0-5
Output 0-5
7
Input 0-6
Output 0-6
8
Input 0-7
Output 0-7
9
Input 1-0
Output 1-0
10
Input 1-1
Output 1-1
11
Input 1-2
Output 1-2
12
Input 1-3
Output 1-3
13
Input 1-4
Output 1-4
14
Input 1-5
Output 1-5
15
Input 1-6
Output 1-6
16
Input 1-7
Output 1-7
17/18
-
-
19/20
0VLS
-
21/22
VLS24
-
23/24
-
0VA
25
-
-
Case
Shield
Shield
COD. TCR32UD
16+16 digital outputs
Remote module
COD. TCR32ID
16+16 digital outputs
Remote module
