Pg. 5 di 80

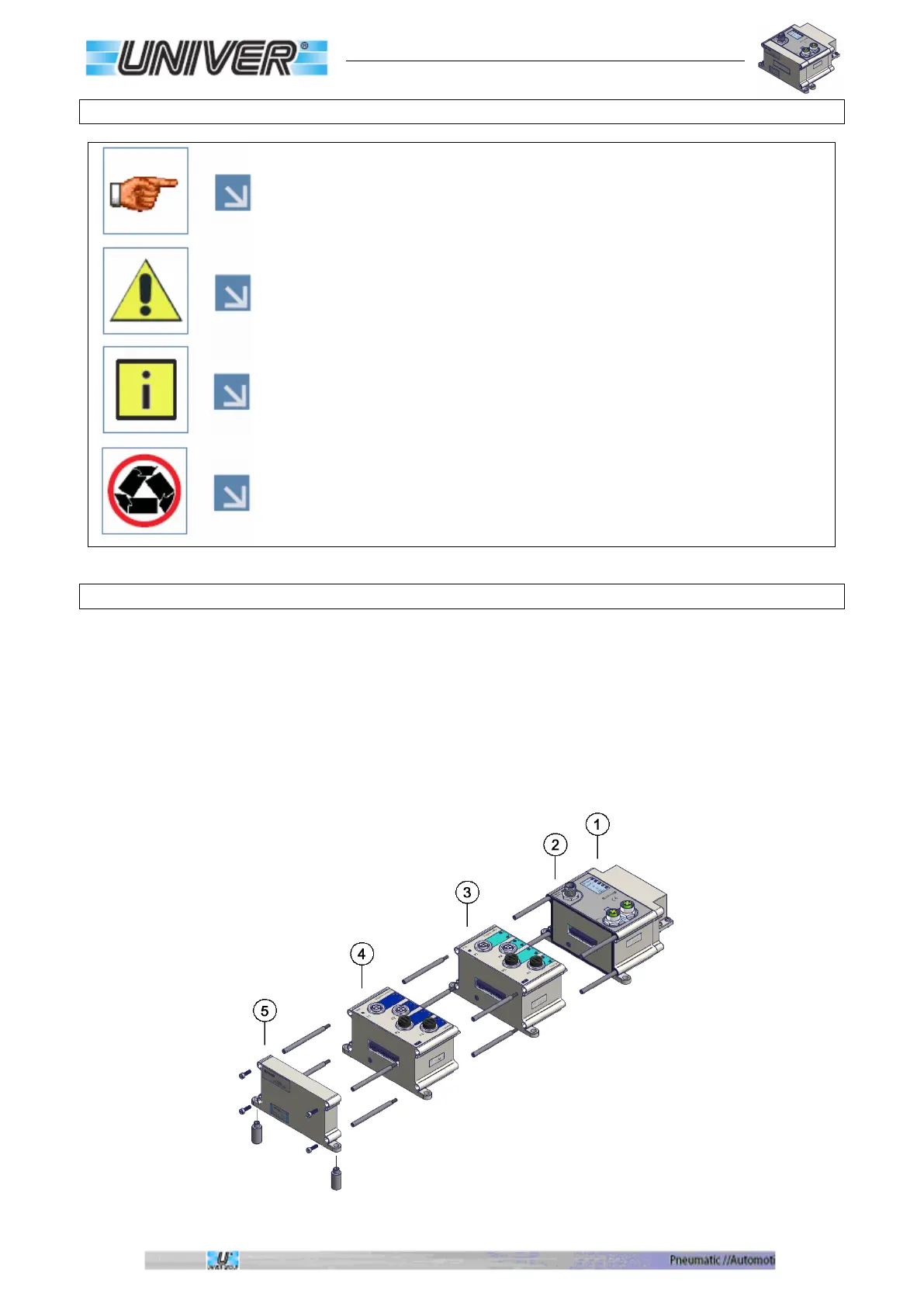

Symbol Legend
Description of the modular system
TC and TE series are slave devices for fieldbus to control of valves, digital inputs and outputs.
The system structure taken as an example below consists of the interface module for the valve
manifold (1) and already included in the TC, the communication field module (2), (DeviceNet,
CANopen, Profibus, Profinet, EtherNet/IP, EtherCAT), the digital input module (3), the digital
output module (4), and the end cover (5).
Since this is a modular system, other modules can be added
Important NOTICE
Attention Danger
Additional information
Recycle / Eco compatible materials
