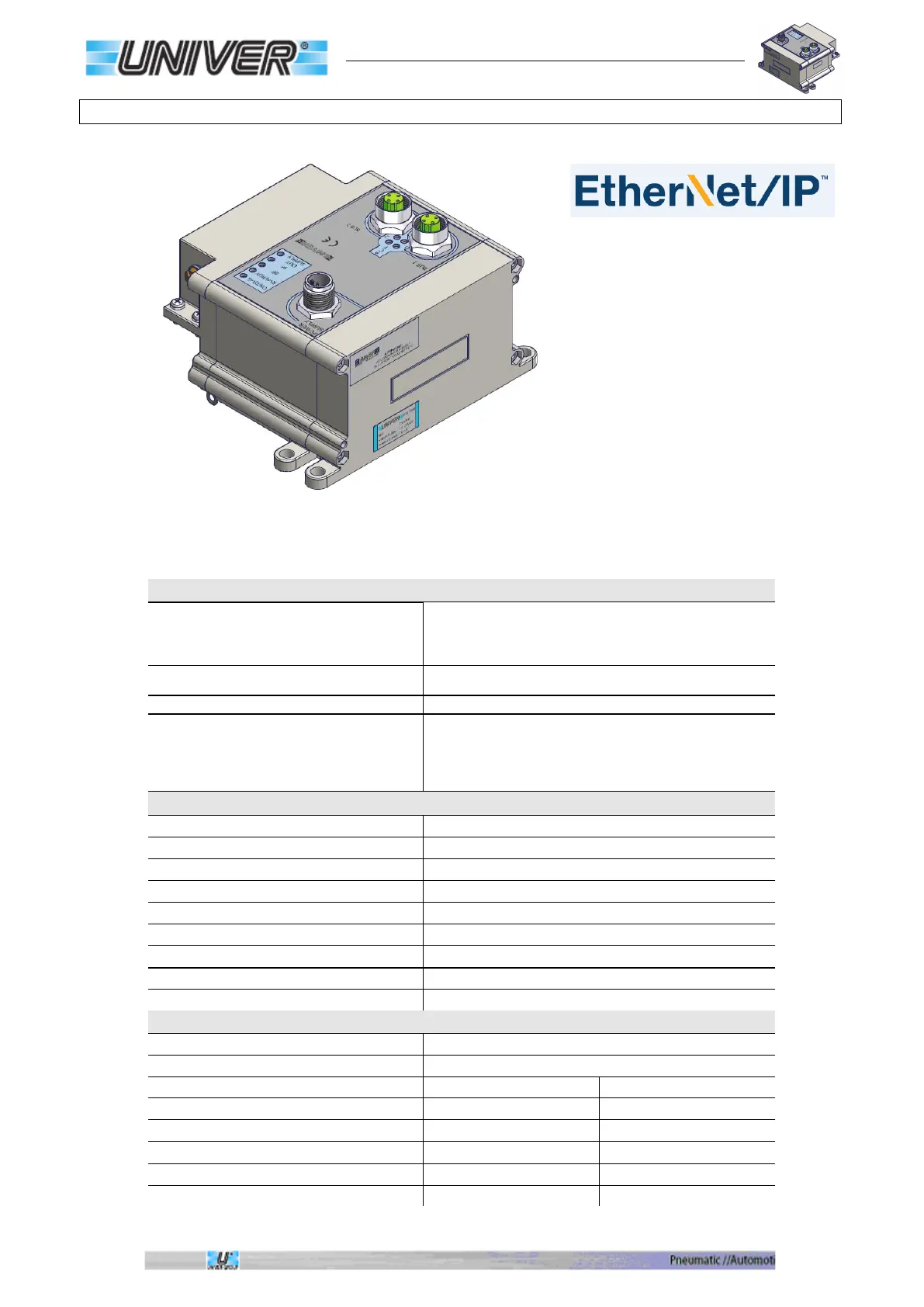

TCxEN and TExEN modules - EtherNet/IP
Fieldbus data EtherNet/IP
Bus 1 and Bus 2 connectors Circular M12 Female 4 pin D code
10Base-T/100Base-TX, Half/Full Duplex
Auto Crossover Function; Auto-Negotiation
System LEDs
ON/DIAG Green/Red
RUN/RDY Green/Red
Auxiliary LEDs
Out Supply Green
BUS LED
MS Green/Red
NS Green/Red
LINK 1 2 Green
ACT 1 2 Yellow
Electrical data
Connector Power Supply Circular M12 male 4 pin A code
Logic voltage / digital inputs (VLS24) 24 Vdc ± 15%
Nominal power 150mA (TCxEN)
Maximal power for digital inputs 1,5A @ 20°C – overload protection
Manifolds/outputs voltage (VA24) 24 Vdc -10% +15% (valves limit)
Maximal power for all outputs (VA24) 2,5A max – overload protection
Manageable outputs for valve manifolds 24 max coils - (12 bistable valves - 1,5A for 12 coils))
Manageable auxiliary digital outputs 64 digital outputs (88 total outputs with 24 manifold coils)
Manageable auxiliary digital inputs 64 digiral inputs
Environmental conditions
Weight TCxEN/TExEN 290g/260g
Module overall dimensions 100x123x75 mm /90x123x75 mm
Protection degree IP 65 (with connectors) IEC 60529
Relative humidity 5 to 85% IEC 60068-2-30
Operating temperature
5°C
÷ 50°C
IEC 60068-2-1
Storage temperature
-25°C
÷ 80°C
IEC 60068-2-2
Vibrations 5g tested 10-500Hz IEC 60068-2-6
Shock 22g IEC 60068-2-27
