UniVer TC User Manual

Rev.B15
Pg. 35 di 80

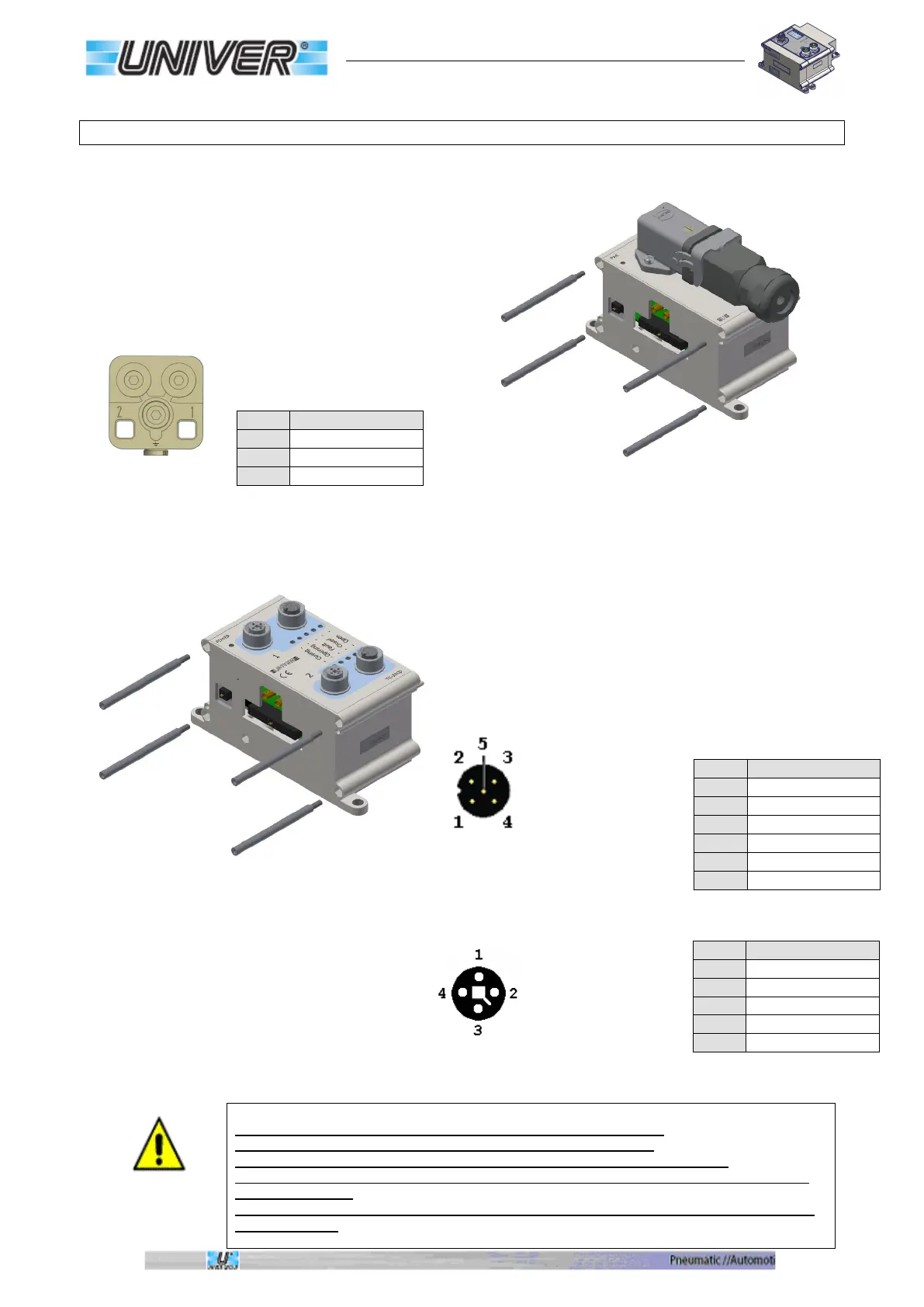

Modules for electric power clamps
COD.TC-ECSM
Power supply module for TC-2ECD.
Harting connector 40A to supply
up to 4 modules TC-2ECD.
Harting Han Q 2/0 female
Contact side view
COD.TC-2ECD
Control unit for 2 clamping devices.
Connector M12 5 pin A code for signals.
Connector M12 4 pin T code for power
.
M12 Female A code
Contact side view
M12 Female T code
Vista Contact side view
These modules are compatible with the following firmwares or greater version:
Profinet V1.3, EtherNet/IP V1.2, EtherCAT V1.2, Profibus V2.4, CANopen V2.3.
The maximal number of TC-2ECD modules for each serial system is 4 (8 LAE140…LAE350)
In case of use with LAE950, the maximal number of modules is 2, anyway the total maximal consumption
must not exceed 32A.
The TC-ECSM module must be installed after all I/O modules in the system, after that can be installed only
TC-2ECD modules.
Pin
Function
1
24V motor
2
0V motor
3
Ground
Pin
Function
1
Power supply (VLS24)
2
Clamp open position
3
Power supply (0VLS)
4
Clamp closed position
5
Error
Case
Shield
Pin
Function
1
24V Motor
2
Opening Command
3
0V Motor
4
Closing Command
Case
Shield
