UniVer TC User Manual

Rev.B15
Pg. 68 di 80
Configuration parameters - Profibus

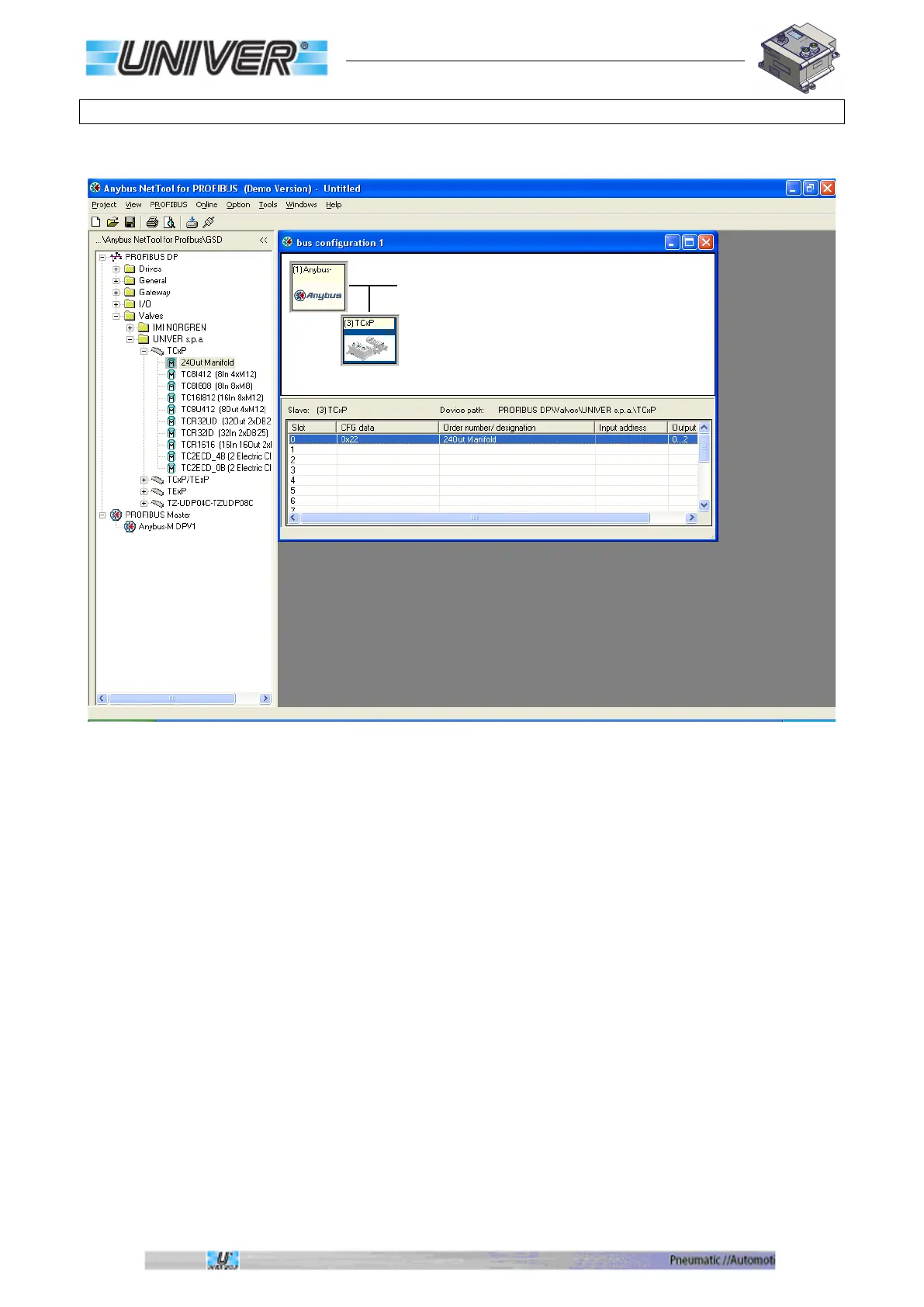

Here below an example by using the software “Anybus NetTolol”.
Import the device GSD file that you find on the CD or on the website.
In the “PROFIBUS DP”, “Valves” the folder “Univer S.p.A.” should then appear.
Select the device “TCxP” or “TExP” from the list and put it in the window on the right, connecting it to the Anybus master, assign the
slave address and the various communication parameters.
Insert the various modules that make up the system in the slots (in the example a TCxP that has only the integrated interface for the
manifold, which is assigned as visible in the slot 0).

UniVer TC Specifications

General

Brand	UniVer
Model	TC
Category	Control Unit
Language	English
