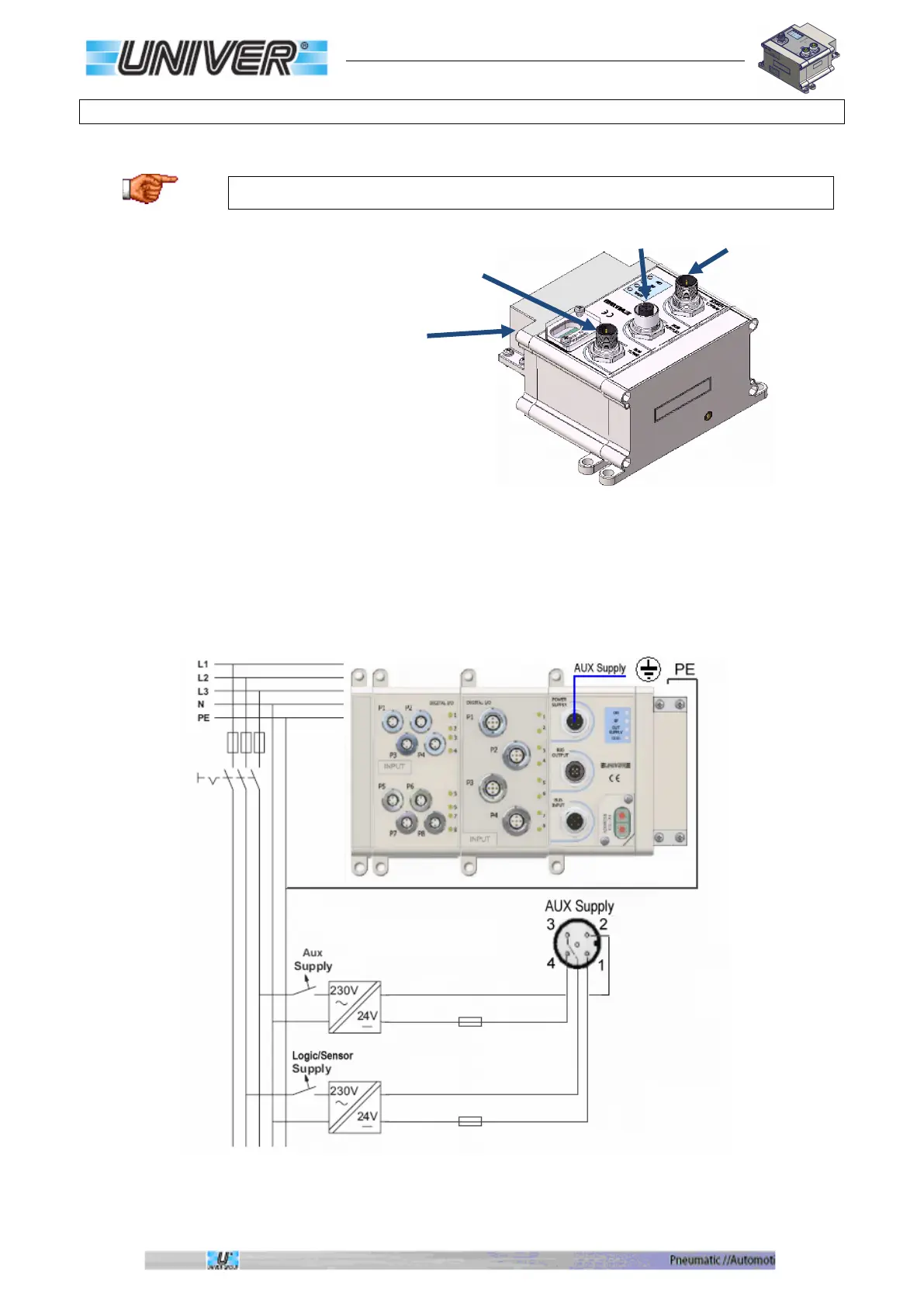

Power supply connections for Profibus, CANopen modules
PE connection must be connected externally to the ground.
Bus Output
Bus Input
Power supply
PE
The module requires 2 supplies,
One 24 VDC (-10% or +15 %) for logic and inputs.
One 24 VDC (-10% or +15 %) for outputs and valve manifold.
Supply connections
