UniVer TC User Manual

Rev.B15
Pg. 26 di 80

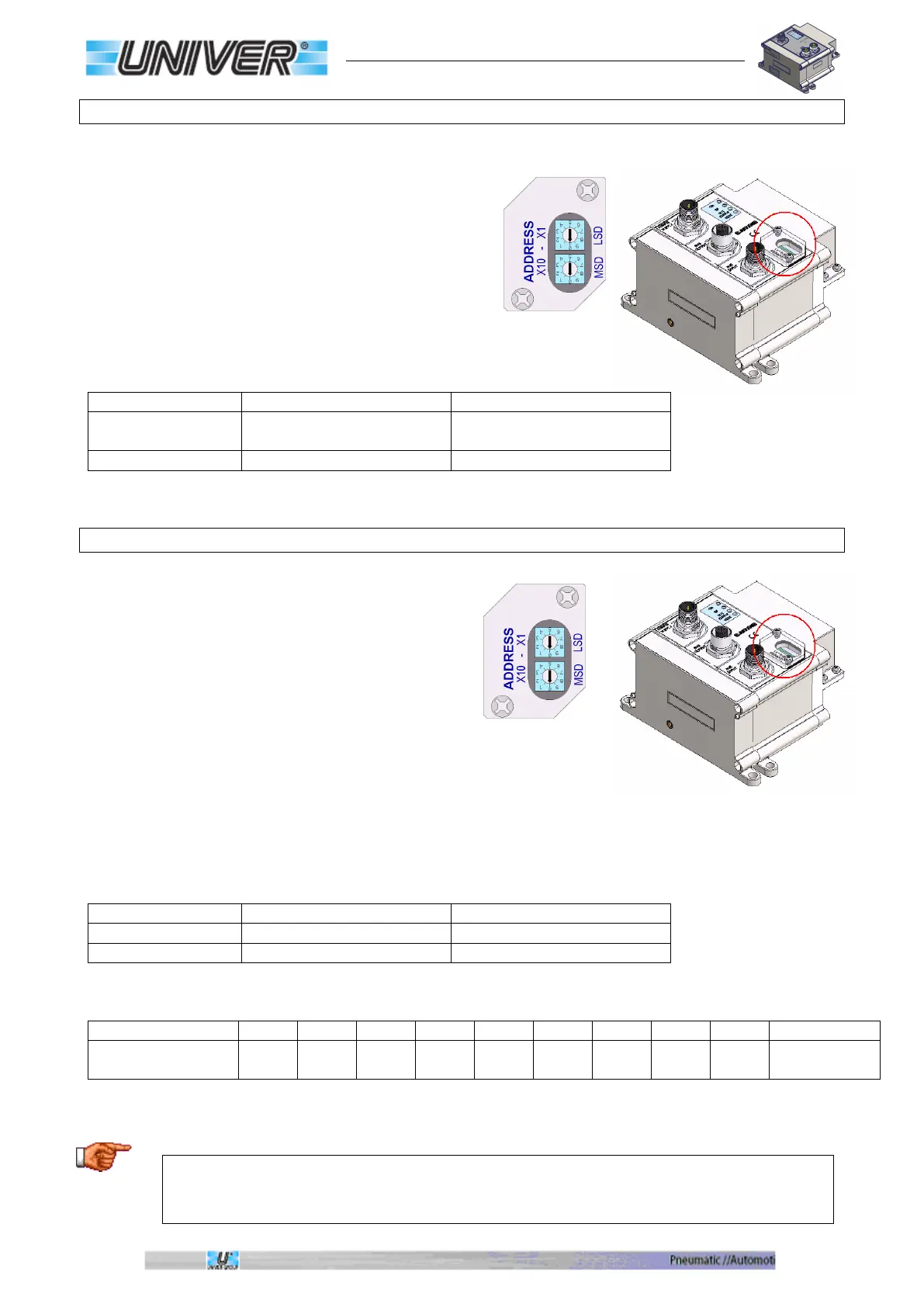

How to set Profibus network address
The valid addresses for our modules are:
from 01 to 99.
Each module has the factory address set on 02
The “Rotary Switches”, are on the upper side of the panel, under
the flap.
The address is acquired only when turned on, so to change the
address, turn off the device, set the address and turn the
device back on so it is updated.
Rotary Switch
MSD
LSD
Slave address
Most significative number
(x10)
Less significant number (x1)
Max. address
9
9
How to set the CANopen network address
Firmware version 2.0 o previous
Valid addresses: from 01 to 89 (*)
Firmware version 2.1 up tp 2.6
Valid addresses: from 01 to 98
99 enable the option LSS
Firmware version 2.7 forward
Valid addresses: from 01 to 89 (*)
99 enable the option LSS and/or Auto Baud Rate
Each module leaves the factory with the address set to 63.
The “Rotary Switches” are placed on the upper part of the panel, under the
flap.
The address is acquired only when it is turned on, so to change the address,
turn it off, set the address and turn the device back on so that it is
updated.
Rotary Switch
MSD
LSD
Slave address
Most significat digit (x10)
Less significant digit (x1)
Max. address
9
8
(*)
Rotary Switch
90
91
92
93
94
95
96
97
98
99
Baudrate (KB)
10
20
50
-
125
250
500
800
1000
LSS o
Autobaud
When it is turned off, set a baund, switch it on and wait for 5”, switch it off, set the desired address (< 90) and switch
it on again.
To set the address, remove the cover by unscrewing the screws, set the new address and
remember to properly close the cover by tightening the screws fully in order to ensure the IP65
protection degree.
