UniVer TC User Manual

Rev.B15
Pg. 43 di 80

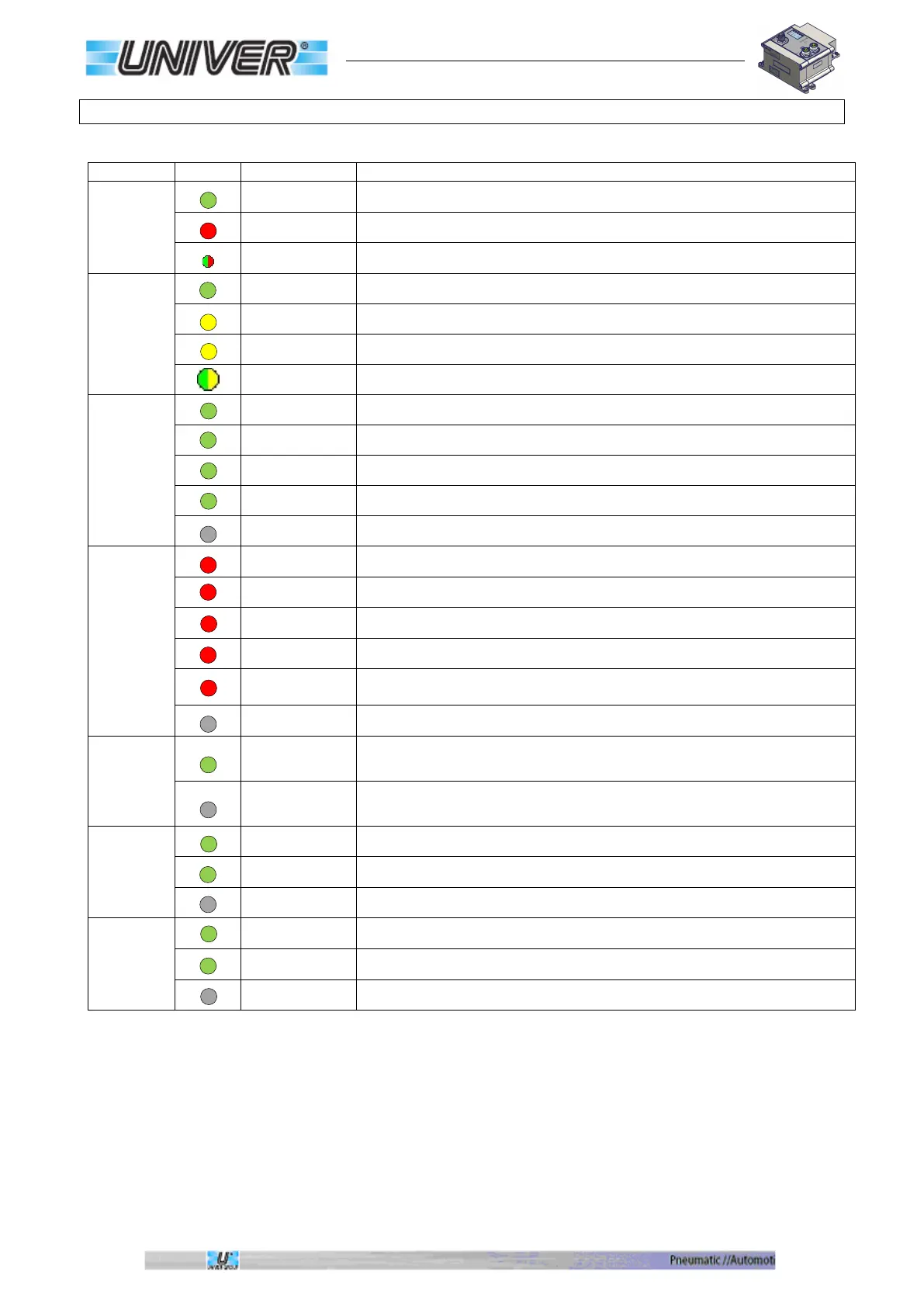

LED Status and Diagnostics - EtherCAT
LED
Color
Status
Meaning
ON/Diag
On No error.
Flashing Error, see error codes table for further details
Flashing Fatal error, see error codes table for further details..
Rdy
On Operative system completely loaded and ready
On Error during loading of operative system or configuration.
Flashing Boot loader mode active (6 Blink No 2
nd Stage Loader Loaded).
Flashing Operating system missing (2nd Stage Loader Loaded)
ECAT
Run
On Working (the device is correctly working).
Flickering Initialization or Bootstrap
Flashing Pre-Operational status.
1 Flashing Safe-Operational status.
Off Initialization.
ECAT
Err
On Error in the device.
Tremolante Boot Error.
Flashing False device configuration.
1 Flashing Local error.
2 Flashings
Timeout Watchdog Process Data.
Timeout Watchdog EtherCAT.
Off No error.
OUT
SUPPLY
On
Power supply on (24VA).
(Manifold and output power supply).
Off
No power supply (24VA).
(Manifold and output power supply).
L/A X1
On EtherCAT connection on channel IN.
Flashing Message Transmission/Receipt on channel IN.
Off No Message Transmission/Receipt on channel IN.
L/A X2
On EtherCAT connection on channel OUT.
Flashing Message Transmission/Receipt on channel OUT.
Off No Message Transmission/Receipt on channel OUT.
