Rev.B15

Pg. 13 di 80

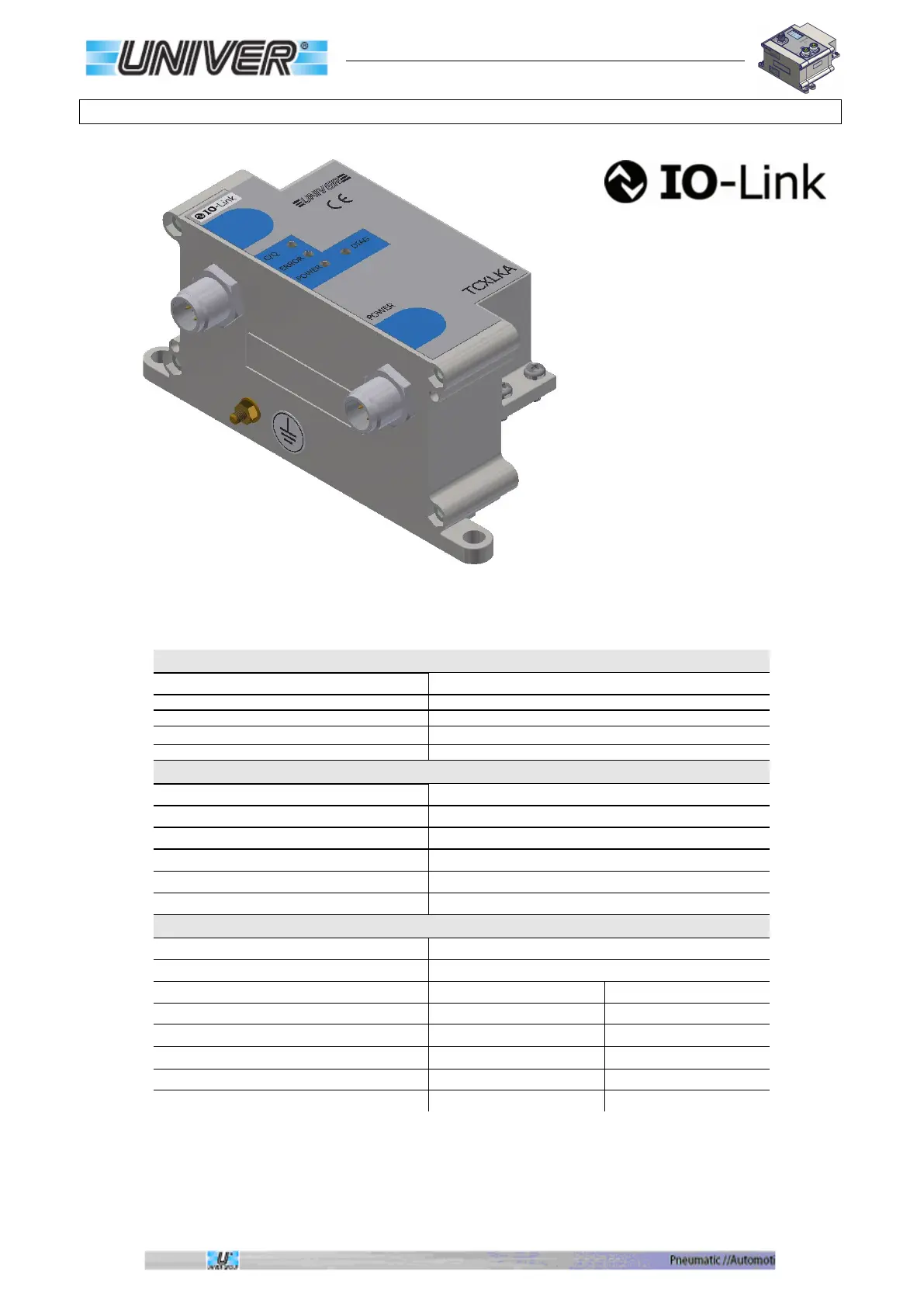

TCxLKA and TCxLKB modules - IO-Link

Fieldbus data IO-Link

Connector Bus Input and logic power supply Circular M12 Male 5 pin A code

BUS LED

C/Q Green

BUS LED

ERROR Red

Auxiliary LED

OUT SUPPLY Green

System LED

DIAG Red

Electronical data

Connector power supply Circular M12 male 4 pin A code

Logic voltage / digital inputs (VLS24) 24 Vdc ± 15%

Nominal power 150mA

Manifold voltage 24 Vdc -10% +15% (valves limit)

Maximal power for all outputs (VA24) 1,5A max – overload protection

Manageable outputs for valve manifolds 24 max coils- (12 bistable valves - 1,5A for 12 coils)

Environmental conditions

Weight TCxLKA/TCxLKB 150g/135g

Module overall dimensions 50x123x75 mm

Protection degree IP 65 (with connectors) IEC 60529

Relative humidity 5 to 85% IEC 60068-2-30

Operating temperature

5°C

50°C

IEC 60068-2-1

Storage temperature

-25°C

80°C

IEC 60068-2-2

Vibrations 5g tested 10-500Hz IEC 60068-2-6

Shock 22g IEC 60068-2-27

UniVer TC User Manual
