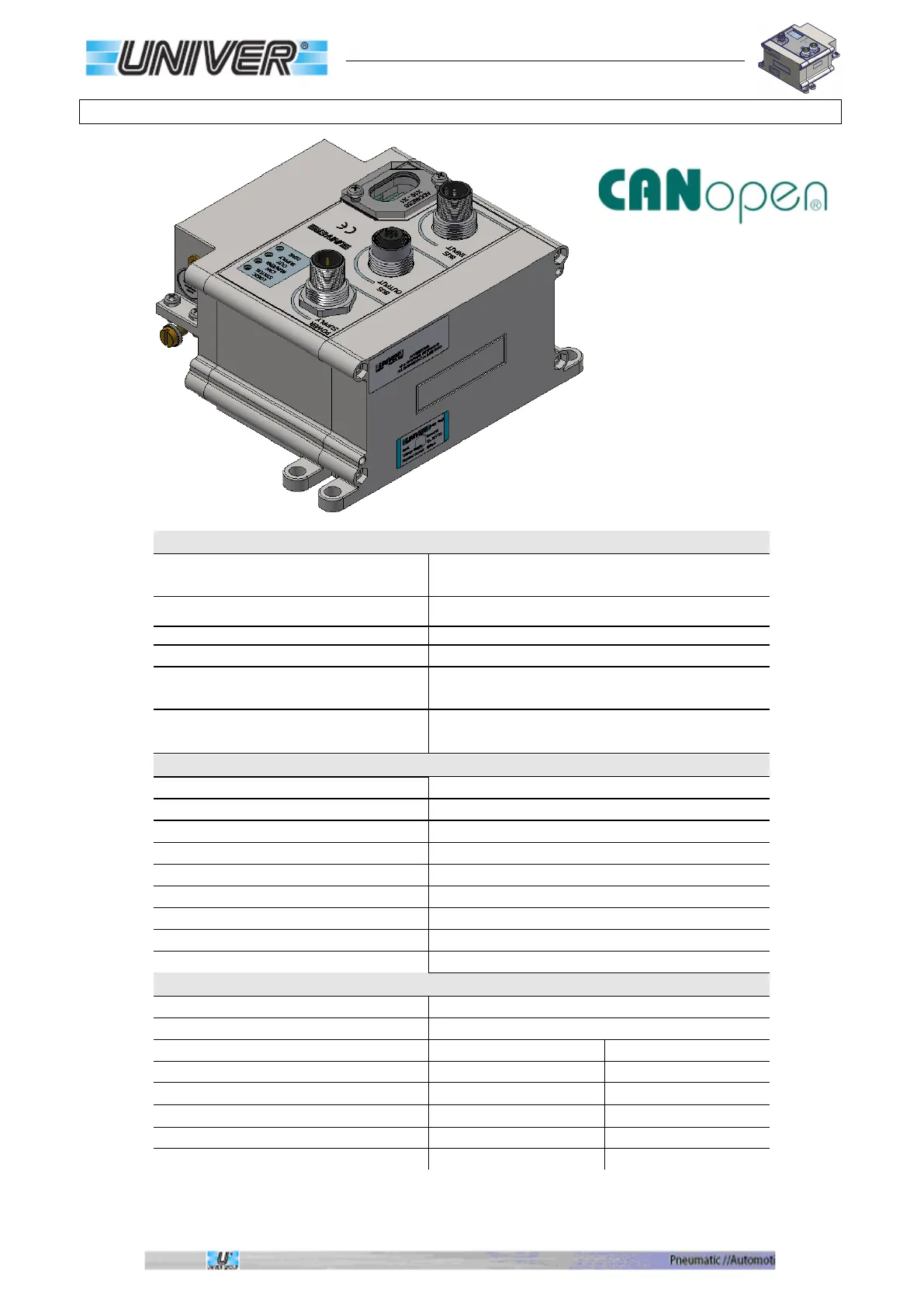

UniVer TC User Manual

Rev.B15
Pg. 12 di 80
TCxC and TExC modules - CANopen
Fieldbus data CANopen
Input Bus connector
Output Bus connector
Circular M12 Male 5 pin A code
Circular M12 Female 5 pin A code
System LEDs
LOGIC STATUS Green
DIAG Red
Auxiliary LEDs
OUT SUPPLY Green
BUS LED
CAN RUN/ERR Green/Red
Selectable Slave Adress Selectable form 01 to 98
99 enable the function LSS (from version 2.1)
Commutation speed
10-20-50-125-250-500-800Kbaud -1Mbaud
(Autobaud from version 2.1).
Electrical data
Connector power supply Circular M12 male 4 pin A code
Logic voltage / digital inputs (VLS24) 24 Vdc ± 15%
Nominal power 100mA (TCxC)
Maximal power for digital inputs 1,5A @ 20°C – overload protection
Manifolds/outputs voltage (VA24) 24 Vdc -10% +15% (valves limit)
Maximal power for all outputs (VA24) 2,5A max - overload protection
Manageable outputs for valve manifolds 24 max coils - (12 bistable valves - 1,5A for 12 coils)
Manageable auxiliary digital outputs 40 digital outputs (64 total outputs with 24 manifold coils)
Manageable auxiliary digital inputs 64 digital inputs
Environmental conditions
Weight TCxC/TExC 370g/280g
Module overall dimensions 100x123x75 mm / 90x123x75 mm
Protection degree IP 65 (with connectors) IEC 60529
Relative humidity 5 to 85% IEC 60068-2-30
Operating temperature
5°C
÷ 50°C
IEC 60068-2-1
Storage temperature
-25°C
÷ 80°C
IEC 60068-2-2
Vibrations 5g tested 10-500Hz IEC 60068-2-6
Shock 22g IEC 60068-2-27
