UniVer TC User Manual

Rev.B15
Pg. 16 di 80

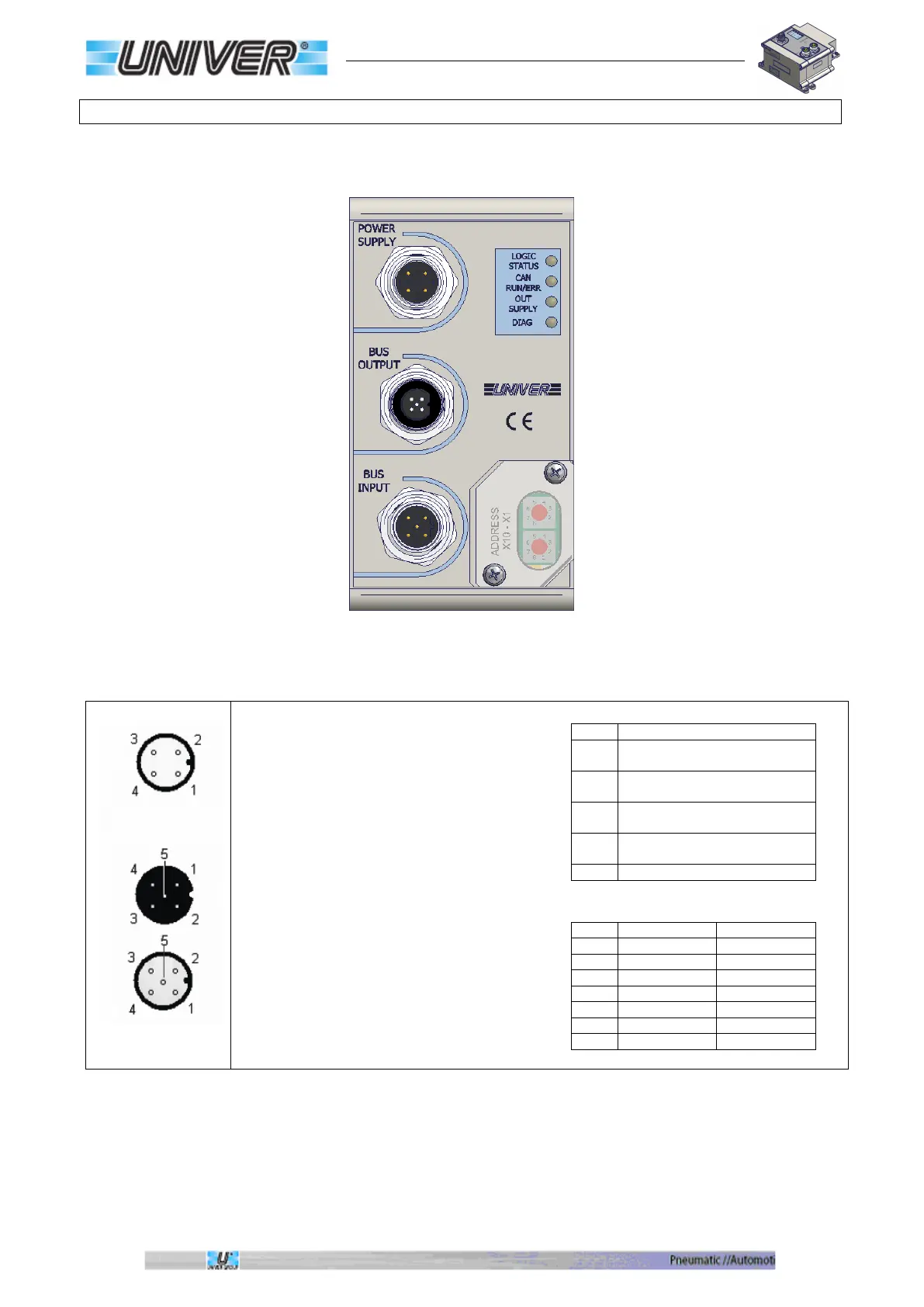

M12 connectors pinout for CANopen modules
TCxC - TExC
Logic and output power supply.
(M12 Male A code)
Contact side view.
OUTPUT BUS.
(M12 Female A code)
Contact side view.
INPUT BUS.
(M12 Male A code)
Contact side view.
Pin
POWER SUPPLY
1
Positive logic and input power
supply (VLS24)
2
Negative output power supply
(0VA)
3
Negative logic and input power
supply (0VLS)
4
Positive output power supply
(VA24)
Case
Shield
Pin
BUS INPUT
Bus OUTPUT
1
Drain
Drain
2
V+
V+
3
V-
V-
4
CAN-H
CAN-H
5
CAN-L
CAN-L
Case
Shield
Shield
