Pg. 7 di 80
Installation
Before installing the device, be sure that it was not damaged during transport.

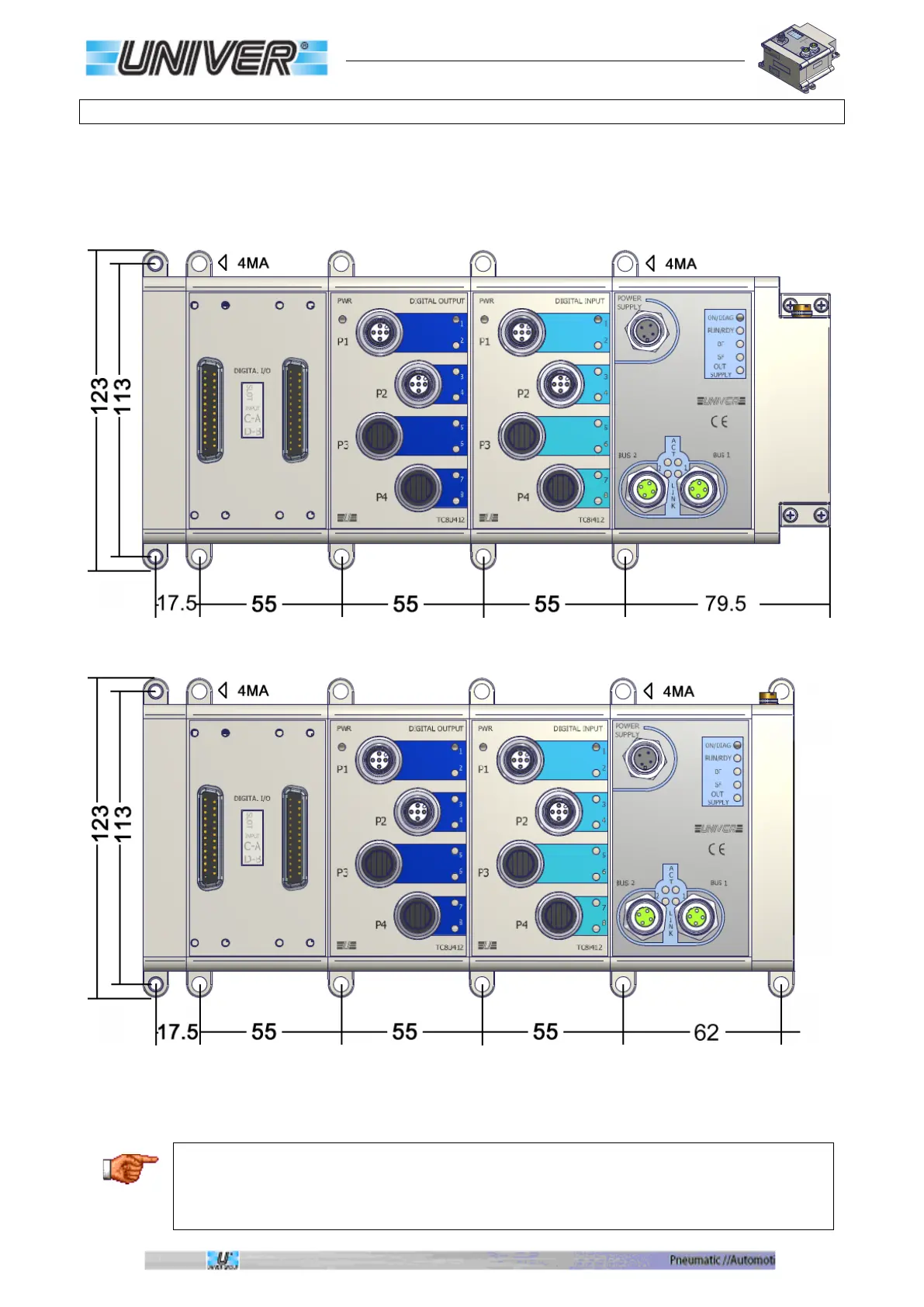

Pay attention to the dimensions.
Remote I/O Output module Input module Communicator
(TCR3232) (TC8U412) (TC8I412) (TCxPN)
Remote I/O Output module Input module Communicator
(TCR3232) (TC8U412) (TC8I412) (TExPN)
We recommend to fix the device through the proper holes with M4 screws.
The total length changes in accordance to the number of installed modules and according to the
assembled valve manifold.
