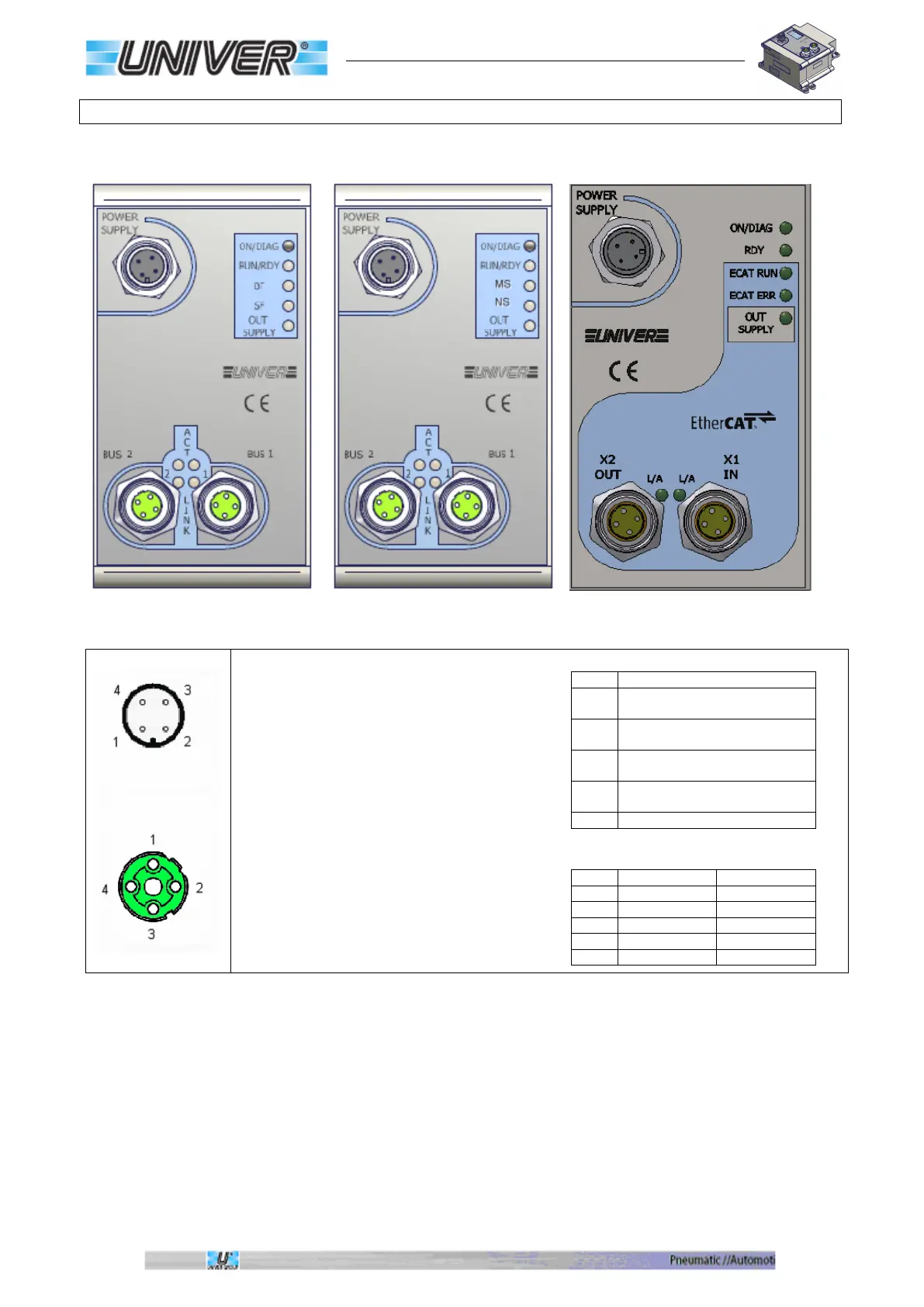

M12 connectors pinout for Profinet, EtherNet/IP, EtherCAT modules
TCxPN – TExPN TCxEN - TExEN TCxEC - TExEC
Logic and output power supply.
(M12 Male A code)
Contact side view.
BUS1 e BUS2.
(M12 Female D code)
Contact side view
Pin
POWER SUPPLY
1
Positive logic and input power
supply (VLS24)
2
Negative output power supply
(0VA)
3
Negative logic and input power
supply (0VLS)
4
Positive output power supply
(VA24)
Case
Shield
Pin
BUS 1
BUS 2
1
TD+
TD+
2
RD+
RD+
3
TD-
TD-
4
RD-
RD-
Case
Screeb
Shield
Bus 1 and Bus 2 can be used either as input or output of the fieldbus.
