Module assembly system
The auxiliary input and output modules must be connected to
the fieldbus module from the side which is opposite to the
valve manifold.
Make sure that the module order is always as per the following sequence:
Serial communicator (TCxxx o Texxx).
TCXUS78 if present
Input modules (TC16I812, TC8I412, TC8I808) if present
Output modules (TC8U412, TCR32UD - it must be the last one - if present.
TC-ECSM if present.
TC-2ECD if present.

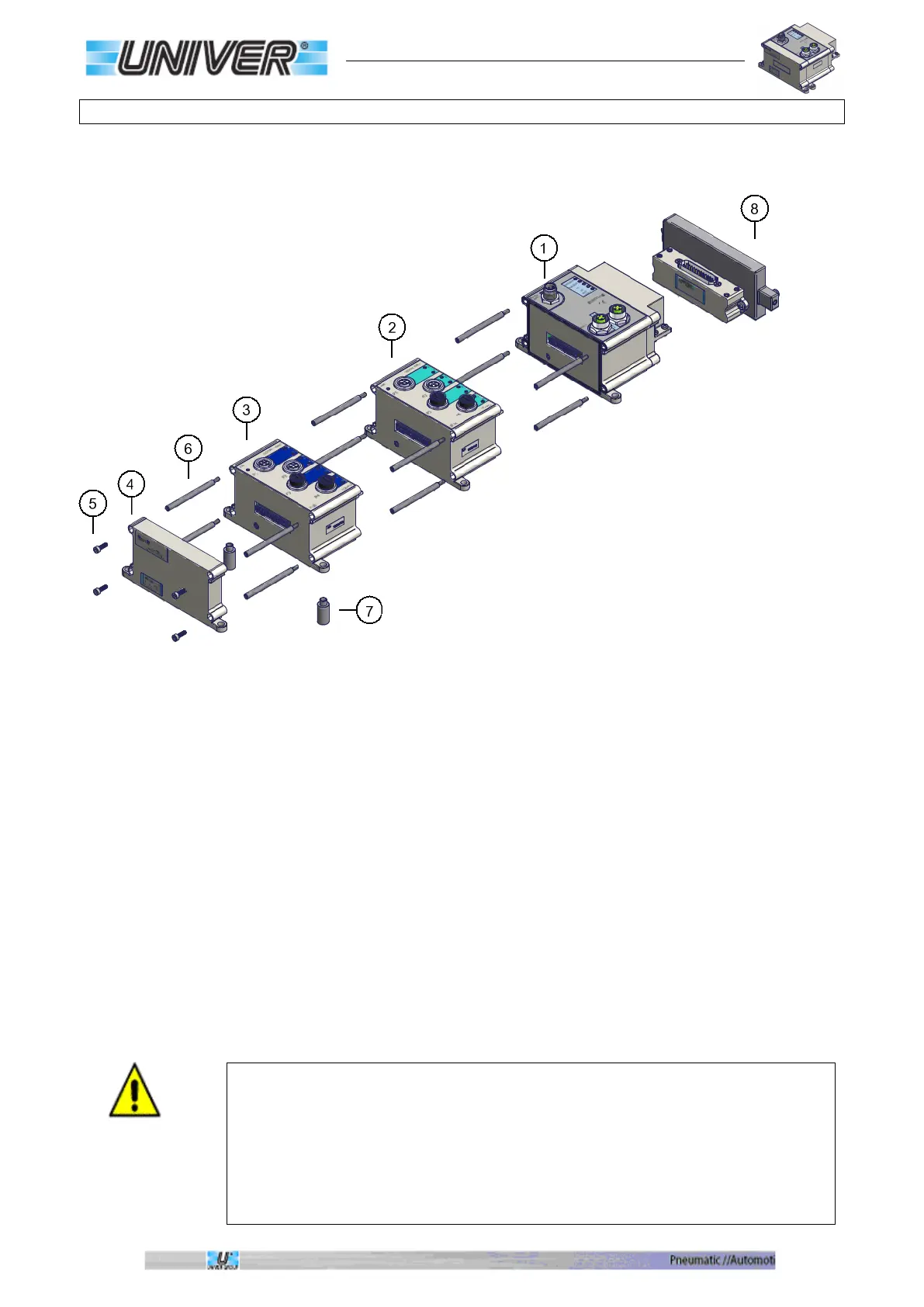

Description
Part Number
1
Fieldbus module
TCxPN
2
Auxiliary input module 4 x M12
TC8I412
3
Auxiliary output module 4 x M12
TC8U412
4
End cover
PR2895-
5
Cover screws
Included
6
Tie-rods
Included
7
Supports
Included
8
Valve manifold adapter
BDF-x130TIM
BDF-x140TIM
