UniVer TC User Manual

Rev.B15
Pg. 48 di 80
Configuration Parameters - Profinet

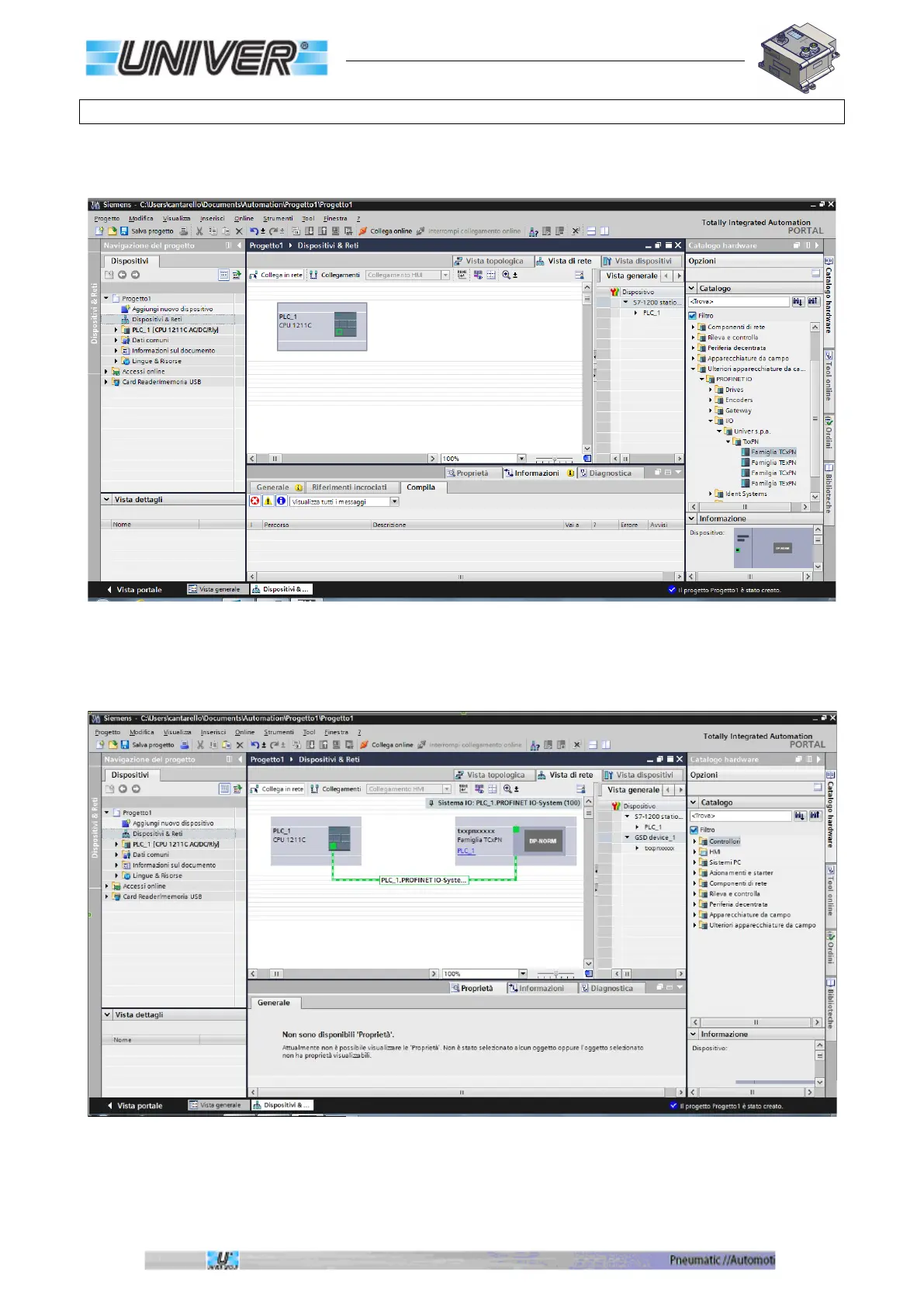

Here below one example by using “TIA Portal” software by Siemens.
Place the master in the window “Devices & Nets”
Import the GSDML device file from the CD or Internet website.
In “Hardware catalogue”, “Further Fieldbus devices” ”I/OPROFINET” “I/O” the folder “Univer S.p.A.” will appear.
Click the device from the list and put it into the window “Devices and Nets”.
Connect the BUS between the master and the slave “green line”.
Allocate the IP address, the name and the other options/parameters needed for the application.
