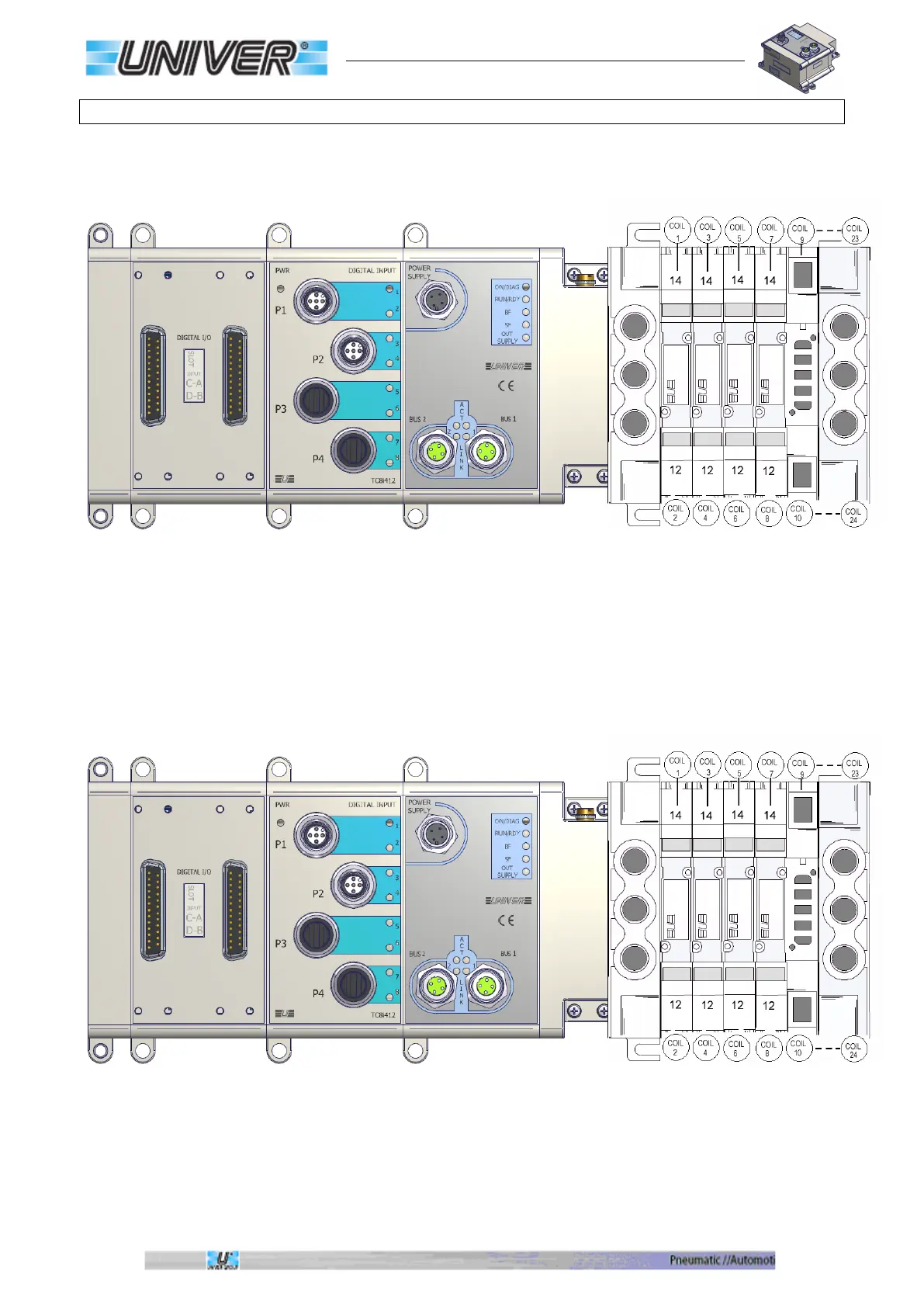

Coils, inputs and outputs addressing
Bit 0 Bit 2 Bit 4
▼ ▼ ▼ .........
Digit outputs Digital inputs Fieldbus module ▲ ▲ ▲
Bit 1 Bit 3 Bit 5 ........
◄ MSB Bytes 3 -...... LSB ► (Bytes 0 - 1 - 2 )
(Manifold First = TRUE or Valve manifold first = True, ecc.)
(1)
Bit 0 Bit 2 Bit 4
▼ ▼ ▼ .........
Digital outputs Digital inputs Fieldbus module ▲ ▲ ▲
Bit 1 Bit 3 Bit 5 ........
◄ LSB Bytes 0 -...... MSB ► (Bytes x+1 – x+2 – x+3 )
(Manifold First = FALSE or Valve manifold first = False, ecc.)
(1)
